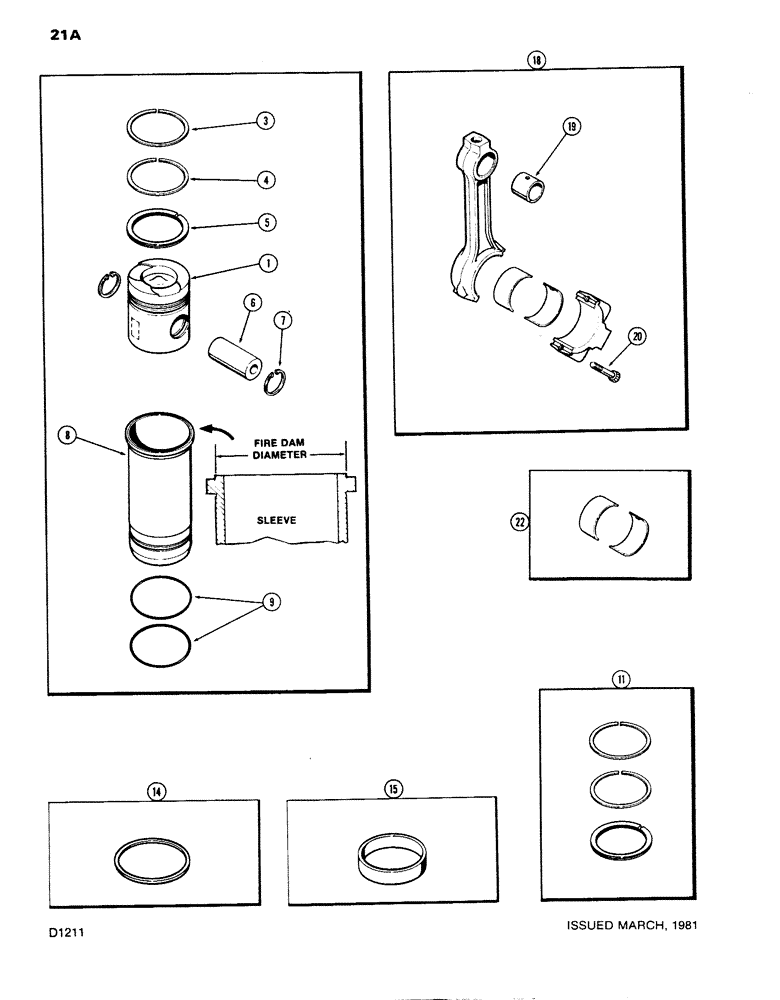

Запчасти Case W14 (021A) - PISTONS AND SLEEVES, WITH 5.092" TO 5.097" FIRE DAM DIAMETER (02) - ENGINE

1

A66531

PISTON

PISTON - cylinder

4шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order Ref. 11)

4шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order Ref. 11)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (3rd groove) (Order Ref. 11)

4шт.

6

A140607

PISTON PIN,41.27mm OD x 93.34mm L

PIN - piston

4шт.

7

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , piston pin 1.625", Int, #162

8шт.

8

A140216

SLEEVE CYLINDER

SLEEVE - cylinders, (With 2 grooves)

4шт.

9

A146616

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

O-RING - sleeve

8шт.

11

A44060

RING

RING SET - piston re-ring (Set of 1)

4шт.

14

A148553

SHIM

SHIM - sleeve, 0.010" (0.254 mm) (Repairs Only)

1шт.

14

A148554

SHIM

SHIM - sleeve, 0.005" (0.127 mm) (Repairs Only)

1шт.

15

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs Only)

1шт.

A150328

ADHESIVE

LOCITE - tube (Not Shown)

1шт.

18

A62954

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 19 and 20

4шт.

AR62954

REMAN-CONNECTING ROD

Remanufactured, CONNECTING ROD, N.A. Only

4шт.

AC62954

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number, N.A. Only

4шт.

19

A61241

BUSHING,40.75mm ID x 44.56mm OD x 34.54mm L

BUSHING - piston pin, connecting rods

1шт.

20

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod bearing cap, connecting rods

2шт.

22

A43173

BEARING LINER

INSERT - connecting rod bearing, (Standard) (Set of 2), connecting rods

4шт.

22

A43174

BEARING LINER

INSERT - connecting rod bearing, 0.002" (0.051 mm) undersize (Set of 2), connecting rods

4шт.

22

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT - connecting rod bearing, 0.010" (0.254 mm) undersize (Set of 2), connecting rods

4шт.

22

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT - connecting rod bearing, 0.020" (0.508 mm) undersize (Set of 2), connecting rods

4шт.

22

A43177

BEARING LINER

INSERT - connecting rod bearing, 0.030" (0.762 mm) undersize (Set of 2), connecting rods

4шт.
