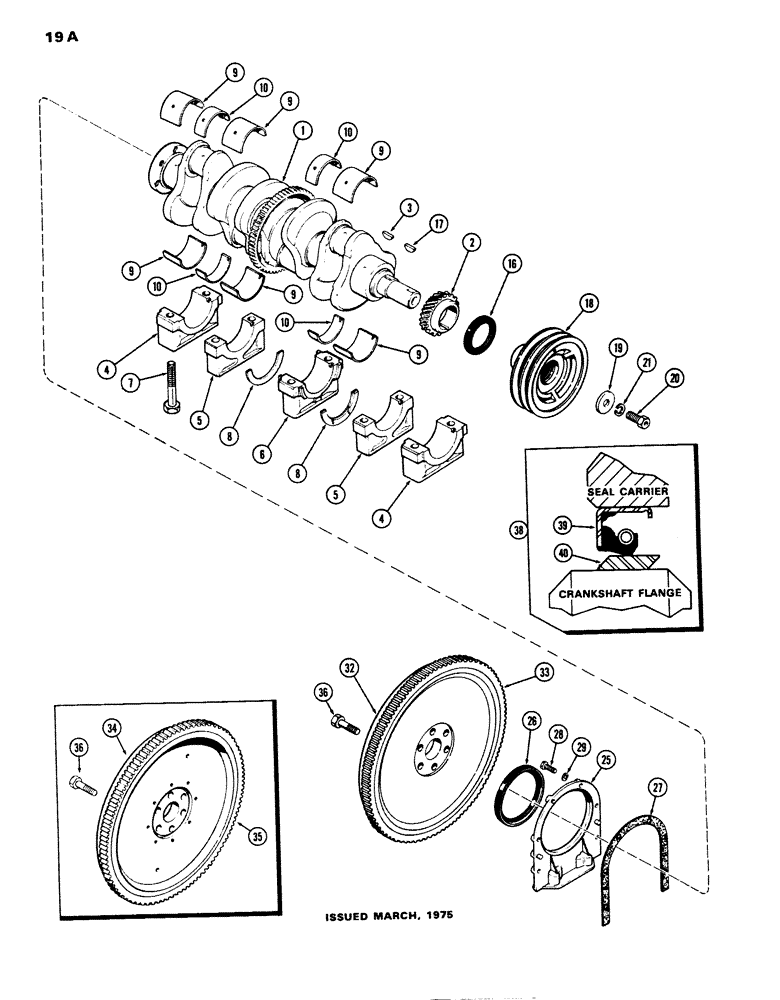

Запчасти Case W14 (019A) - CRANKSHAFT AND FLY WHEEL, (336 BD) DIESEL ENGINE, USED PRIOR TO ENGINE S/N 2571281 (02) - ENGINE

1

A64473

CRANKSHAFT

ASSY. - w/balance gear, Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft (Replaces A58573)

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft gear #C, 5/16" x 1 1/8", HT

1шт.

4

A58562

CAP

- main bearing, wide (front and rear)

2шт.

5

A58563

CAP

- main bearing, narrow (intermediate)

2шт.

6

A58564

CAP

- main bearing, thrust (center)

1шт.

7

A58566

STEP BOLT

BOLT - bearing caps (5/8 x 4-1/2" N.C.)

10шт.

8

A58565

WASHER

- thrust, center bearing (standard) (0.185")

2шт.

8

A42447

WASHER

- thrust, center bearing (oversize) (0.191")

2шт.

9

A43090

BEARING LINER

LINER SET - main brg. (wide) (std.) (Set of 2)

3шт.

9

A43124

LINING

LINER SET - main brg. (wide) (-.002") (Set of 2)

3шт.

9

A43125

CRANKSHAFT BEARING

LINER SET - main brg. (wide) (-.010") (Set of 2)

3шт.

9

A43126

LINING

LINER SET - main brg. (wide) (-.020") (Set of 2)

3шт.

9

A43127

LINING

LINER SET - main brg. (wide) (-.030") (Set of 2)

3шт.

10

A43089

BEARING LINER

LINER SET - main brg. (narrow) (std.) (Set of 2)

2шт.

10

A43120

LINING

LINER SET - main brg. (narrow) (-.002") (Set of 2)

2шт.

10

A43121

SET OF CONN ROD BRGS STD

LINER SET - main brg. (narrow) (-.010") (Set of 2)

2шт.

10

A43122

LINING

LINER SET - main brg. (narrow) (-.020") (Set of 2)

2шт.

10

A43123

SET OF CONN ROD BRGS STD

LINER SET - main brg. (narrow) (-.030") (Set of 2)

2шт.

16

A62049

OIL SEAL

- oil, front (2-5/8 x 3-5/8 x 1/2")

1шт.

17

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

18

A61163

PULLEY

- crankshaft

1шт.

19

A27903

WASHER

- pulley (5/8 x 2-1/8 x 1/4")

1шт.

20

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- pulley (5/8 x 1-1/2" N.F. hex. sckt. hd.)

1шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25

A57457

RETAINER

- rear oil seal

1шт.

26

Z62050

SEAL - oil, rear (4-3/4 x 5-3/4 x 1/2") (See Ref. 38)

1шт.

27

A32830

GASKET

- retainer

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

29

926

TOOL KIT

WASHER - 3/8" lock

6шт.

32

A65049

FLYWHEEL

ASSY. - (used w/flex plate drive) (1st used eng. ser. no. 2534573), Includes: Ref. 33

1шт.

33

A27920

GEAR

- starter ring

1шт.

34

A58683

FLYWHEEL

ASSY. - (used w/ring plate drive) (used prior to eng. ser. no. 2534573), Includes: Ref. 35

1шт.

35

A27920

GEAR

- starter ring

1шт.

36

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- flywheel to crankshaft (5/8 x 1-1/2" N.C. hex.)

6шт.

38

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear, Includes: Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (4-7/8 x 5-3/4 x 1/2"), wear seal kit

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE - wear (4-3/4 x 4-7/8 x 9/16"), wear seal kit

1шт.
