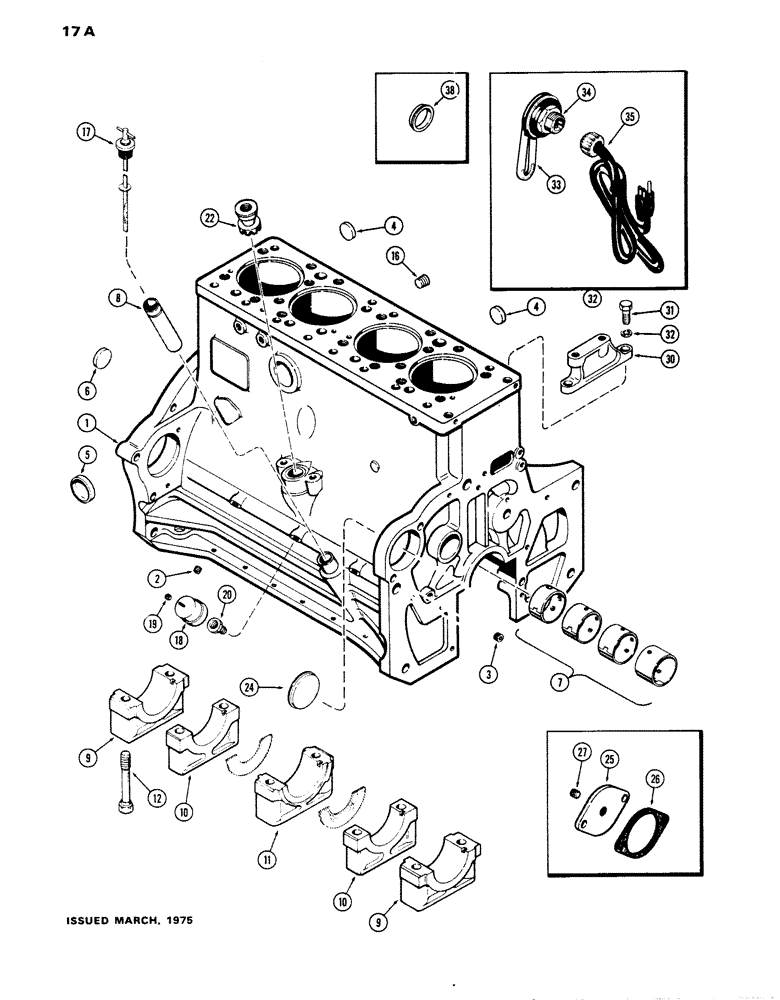

Запчасти Case W14 (017A) - CYLINDER BLOCK, (336 BD) DIESEL ENGINE, USED PRIOR TO ENG. S/N 2571281 (02) - ENGINE

A43066

SKELETON ENGINE

BLOCK ASSY. - short (Casting No. A58505) (Incl. stripped block, camshaft, conn. rods and brgs., crankshaft and brgs., pistons and timing gears), Includes: Ref. 1 - 12

1шт.

1

A42004

BLOCK

ASSY. - stripped (Casting No. A58505), Includes: Ref. 2 - 12

1шт.

2

221-41

PLUG

- oil gallery (1/8" P.T., sltd. headless)

3шт.

3

221-1843

PLUG

- oil gallery (3/8" P.T., hex. sckt. hd.)

3шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery (1-3/8" cup type)

2шт.

5

A58569

PLUG,Cup, 2", Stainless

- (2" cup type)

1шт.

6

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

7

A23577

KIT

BUSHING KIT - camshaft

1шт.

8

A34540

TUBE

- oil filler and dipstick

1шт.

9

A58562

CAP

- main bearing, wide (front and rear)

2шт.

10

A58563

CAP

- main bearing, narrow (intermediate)

1шт.

11

A58564

CAP

- main bearing, thrust (center)

1шт.

12

A58566

STEP BOLT

BOLT - bearing caps (5/8 x 4-1/2" N.C.)

10шт.

16

221-845

PLUG,Hex Soc, 3/4"-14

- heater hole (3/4" P.T., hex. sckt. hd.)

1шт.

17

A20739

GAUGE

DIPSTICK - oil level (Turntitle)

1шт.

18

A35031

SENDER UNIT

UNIT - sending, engine oil pressure

1шт.

19

193-1000

NUT,Keps, w/LW,#10-32

- sending unit terminal (#10-32 hex.)

1шт.

20

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

- reducer, unit to elbow (3/8" P.T. to 1/8" P.T.)

1шт.

22

A34266

DRIVE

ASSY. - tachometer

1шт.

24

A29268

PLUG

COVER - pump mtg. hole (3-1/2" cup type)

1шт.

25

A58891

COVER

- pump mounting hole (Order A29268)

1шт.

26

A58617

GASKET

- pump mtg. hole cover

1шт.

27

221-843

PLUG,Hex Soc, 3/8"-18

- cover (3/8" P.T., hex. sckt. hd.)

1шт.

30

A61155

BRACKET

- air compressor mounting

1шт.

31

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Bracket to block Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

32

A44812

HEATER

ASSY. - (Replaces A42279), block heater, Includes: Ref. 33 - 35

1шт.

33

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block

1шт.

34

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O"RING - (1-3/4 x 2 x 1/8"), block heater

1шт.

35

A44813

CABLE EXTENSION

CORD - heater (Replaces A42297) (1 foot long), block heater

1шт.

A44006

SLEEVE

KIT - block heater adapter, block heater, Includes: Ref. 38

1шт.

38

NSS

NOT SOLD SEPARAT

SLEEVE - (for 2-1/16" dia. block heater hole), block heater

1шт.

38

NSS

NOT SOLD SEPARAT

SLEEVE - (for 2-1/8" dia. block heater hole), block heater

1шт.
