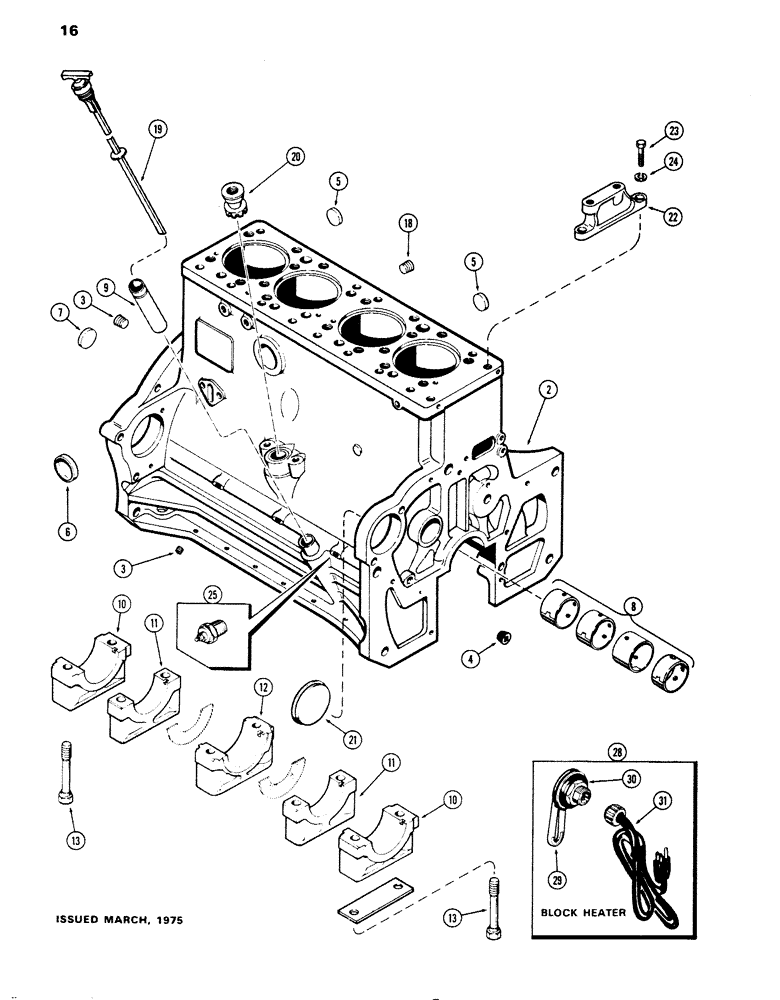

Запчасти Case W14 (016) - CYLINDER BLOCK, (336 BD) DIESEL ENGINE, 1ST USED ENG. S/N 2571281 (02) - ENGINE

A44056

BLOCK

ASSY. - short (incl. stripped block, camshaft, connecting rods and brgs., piston assy., crankshaft and brgs. and timing gears), Includes: Ref. 2 - 13

1шт.

2

A44057

BLOCK

ASSY. - stripped (Casting No. A58504), Includes: Ref. 3 - 13

1шт.

3

221-41

PLUG

- oil gallery (1/8" P.T., sltd. hd.)

4шт.

4

221-1843

PLUG

- oil gallery (3/8" P.T., hex. sckt. hd.)

4шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery (1-3/8" cup type)

2шт.

6

A58569

PLUG,Cup, 2", Stainless

- heater hole (2" cup type)

1шт.

7

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

8

A23577

KIT

BUSHING KIT - camshaft

1шт.

9

A34540

TUBE

- oil filter & dipstick

1шт.

10

A58783

BEARING CAP

CAP - main bearing, front and rear (wide)

2шт.

11

A58784

BEARING CAP

CAP - main bearing, intermediate (narrow)

2шт.

12

A58785

BEARING CAP

CAP - main bearing, thrust, center (wide)

1шт.

13

A58566

STEP BOLT

BOLT - bearing caps (5/8 x 4-1/2" N.C. spec.)

10шт.

18

221-845

PLUG,Hex Soc, 3/4"-14

- (3/4" P.T., hex. sckt. hd.)

1шт.

19

A138330

DIPSTICK

- oil level

1шт.

20

A34266

DRIVE

ASSY. - tachometer

1шт.

21

A29268

PLUG

COVER - pump mtg. hole (3-1/2" cup type)

1шт.

22

A61155

BRACKET

- compressor mounting

1шт.

23

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Bracket to block Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

A66737

SWITCH, PRESSURE

SWITCH - oil pressure

1шт.

28

A44812

HEATER

ASSY. - block heater, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block

1шт.

30

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O"RING - element (1-3/4 x 2 x 1/8"), block heater

1шт.

31

A44813

CABLE EXTENSION

CORD - heater, block

1шт.
