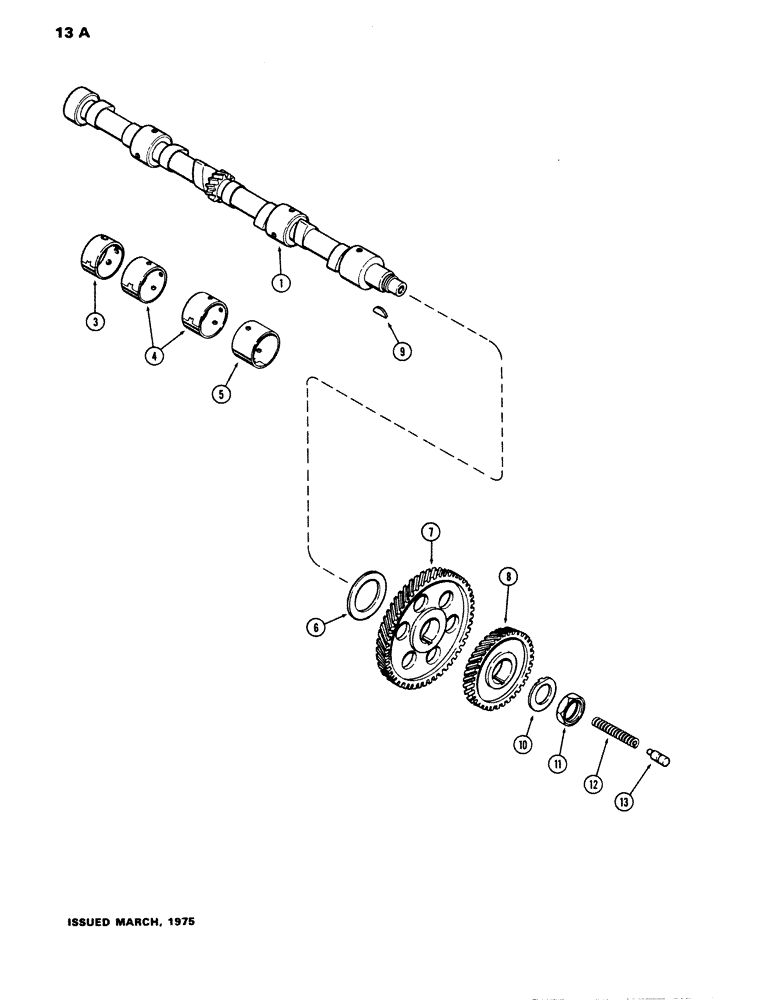

Запчасти Case W14 (013A) - CAMSHAFT, (336 BD) DIESEL ENGINE (02) - ENGINE

1

A66742

CAMSHAFT

- (Replaces A62733)

1шт.

A23577

KIT

BUSHING KIT - camshaft, Includes: Ref. 3 - 5

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- rear (1-5/32" wide)

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- center (1-5/32" wide)

2шт.

5

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- front (1-21/32" wide)

1шт.

6

A21017

WASHER

- thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - camshaft (Hi-Pro)

1шт.

10

A58594

LOCK WASHER

- tab, camshaft nut lock

1шт.

11

A58595

NUT

- camshaft

1шт.

12

CASA27853

SPRING

- plunger, camshaft thrust

1шт.

13

A27852

PLUNGER

- thrust, camshaft

1шт.
