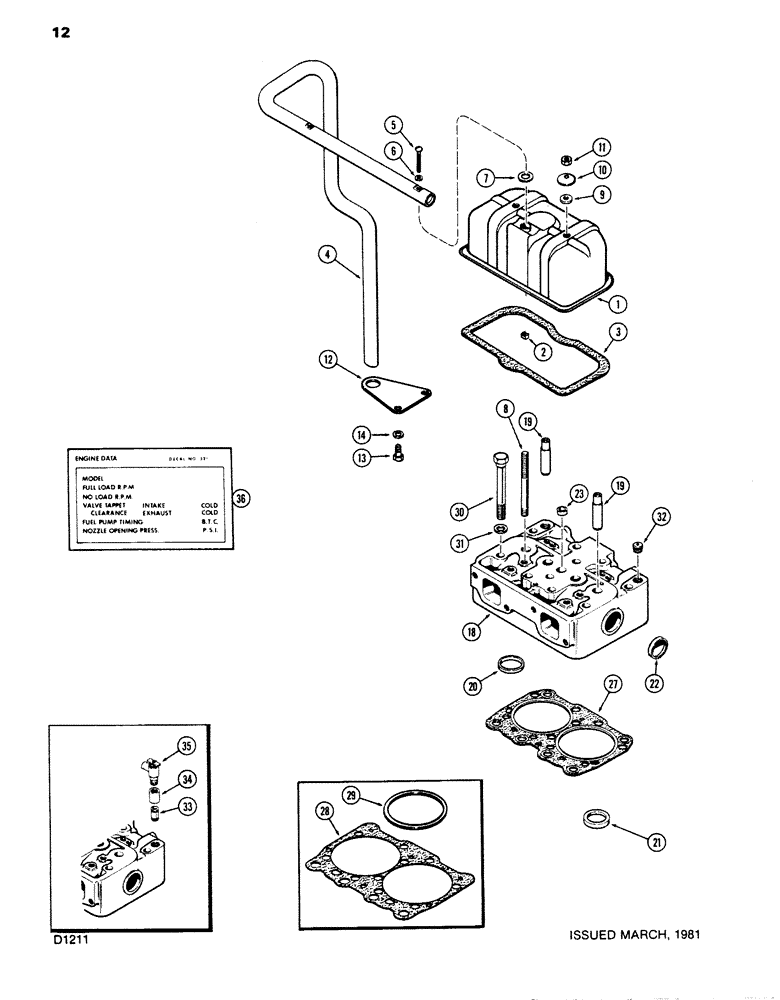

Запчасти Case W14 (012) - CYLINDER HEAD AND COVER, 336BD DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1" NC Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cylinder head cover (Replaces A58928)

2шт.

4

A58733

TUBE

TUBE - breather

1шт.

5

75-440

SCREW

SCREW - tube (1/4 x 2-1/4" NC round head)

2шт.

6

A34133

GASKET

GASKET - tube screw

2шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET -, Serial Range: tube-cover

2шт.

8

A67121

STUD

STUD - cylinder head cover (7/16" NC x 6")

4шт.

9

A23684

GASKET

GASKET - cover stud

4шт.

10

A23683

WASHER

WASHER - cover stud (beveled)

4шт.

11

25-107

NUT,7/16"-14, G5

NUT - 7/16" NC hex

4шт.

12

A58734

BRACKET

BRACKET - breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - bracket (3/8 x 1-1/2" NC hex)

2шт.

14

195-25

WASHER,3/8"

WASHER - bracket bolt (13/32 x 13/16 x 1/16")

1шт.

18

A66709

HEAD

HEAD ASSEMBLY - cylinder (Replaces A60558), Includes: Ref. 19 - 23

2шт.

18

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

2шт.

18

AC66686

CORE-CYLINDER HEAD

Return Number

2шт.

19

A41783

GUIDE

GUIDE - intake and exhaust valves

4шт.

20

A60557

INSERT

INSERT - intake valve seat

2шт.

21

A66192

INSERT

INSERT - exhaust valve seat

2шт.

22

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" (41.3 mm) cup type

2шт.

23

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" (19.1 mm) cup type

3шт.

27

REF

INSTRUCTION

GASKET - cylinder head, with fire ring (Used engine serial no. 2511310 and after) (See Figure 026)

2шт.

28

NSS

NOT SOLD SEPARAT

GASKET - cylinder head, without fire ring (Used prior to engine serial no. 2511310) (See Ref. 27)

2шт.

29

A58622

RING

RING - fire, used with Ref. 28 (Standard)

4шт.

29

NLS

NO LONGER SERVICED

RING - fire, used with Ref. 28 (Oversize) (With blue stripe)

4шт.

30

A62732

STEP BOLT

BOLT - cylinder head (5/8 x 5/8" NC hex)

20шт.

31

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - head bolt

20шт.

32

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - head (3/8" PT hex socket head)

1шт.

33

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - 3/8" PT x 1"

1шт.

34

221-337

COUPLING,Pipe, 3/8" NPT

COUPLING - nipple to valve

1шт.

35

A16764

VALVE

VALVE ASSEMBLY - shut off

1шт.

36

321-2309

DECAL

DECAL - engine data (on valve cover)

1шт.
