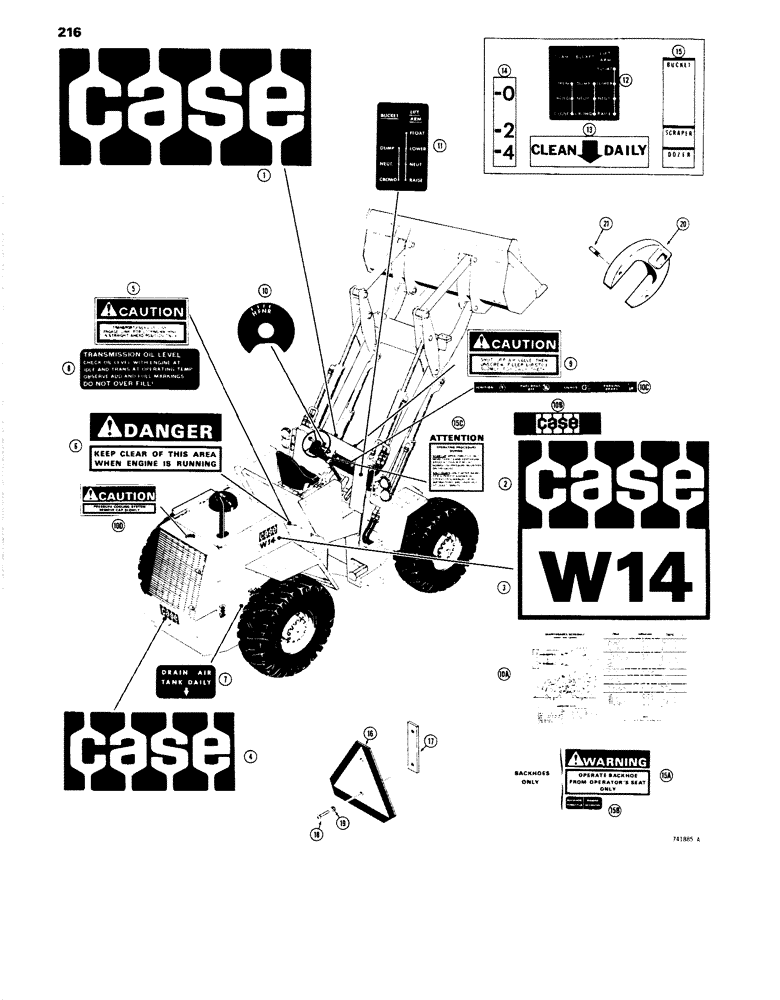

Запчасти Case W14 (216) - DECALS, EARLY PRODUCTION (09) - CHASSIS

L35212

KIT

- decal, W14 Loader, Includes: Ref. 1 - 11

1шт.

1

321-1445

DECAL

- "CASE" (Front frame) Reflective

1шт.

1

321-2429

EMBLEM

DECAL - "CASE" (Front frame) Non-reflective

1шт.

2

321-1443

DECAL

- "CASE" (Hood side panels) Reflective

2шт.

2

321-1574

DECAL

- "CASE" (Hood side panels) Non-reflective

2шт.

3

321-2109

DECAL

- "W14" (Hood sides)

2шт.

4

321-1442

DECAL

- "CASE" (Below grille) Reflective

1шт.

4

321-2427

EMBLEM

DECAL - "CASE" (Below grille) Non-reflective

1шт.

5

321-3206

DECAL

- safety link (R.H. rear frame at link)

1шт.

6

321-3205

DECAL

- danger, on rear chassis

2шт.

7

321-1077

DECAL

- air drain location

1шт.

8

321-1980

DECAL

- transmission oil level

1шт.

9

321-3207

DECAL

- hydraulic tank kaily check

1шт.

10

321-1047

DECAL

- transmission shift control (Steering column)

1шт.

10a

321-2778

DECAL

- Maintenance Chart

1шт.

10b

L57685

DECAL

- "CASE", instrument cluster

1шт.

10c

321-2613

DECAL

- instrument cluster

1шт.

10d

321-3061

DECAL

- warning pressure cap

1шт.

11

321-1075

DECAL

- bucket control pattern

1шт.

12

321-2090

DECAL

- bucket control, 4-in-1

1шт.

13

A18673

DECAL

- clean daily

1шт.

14

S81109

DECAL

- clam opening

1шт.

15

321-1663

DECAL

- bucket positioning

1шт.

15a

321-3054

DECAL

- operator's warning (Backhoe only)

2шт.

15b

321-1261

DECAL

- warning and throttle (Backhoe only)

1шт.

15c

321-1981

DECAL

- turbo charger protection

1шт.

A59450

WARNING SIGN

EMBLEM ASSEMBLY - plate and decal, Includes: Ref. 16

1шт.

16

321-1751

DECAL

- slow moving vehicle emblem

1шт.

17

L16093

PLATE

- mounting, emblem

1шт.

18

182-520

SCREW,Sl Pan Hd, #10 - 24 x 1 1/2"

- machine, pan head (#10 - 24 NC x 1-1/2")

2шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

D44110

OPEN END WRENCH

SET - spanner wrench (For removing and installing packing gland in threaded gland type hydraulic cylinders)

1шт.

20

D44111

OPEN END WRENCH

WRENCH - spanner, for 2-1/2" I.D. cylinder with 1-1/4" or - 1-1/2" piston rods (Includes: Ref. 21)

1шт.

20

D44112

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-1/2" piston rod (Includes: Ref. 21)

1шт.

20

D44113

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-3/4" piston rod (Includes: Ref. 21)

1шт.

20

D44114

OPEN END WRENCH

WRENCH - spanner, for 3-1/2" I.D. cylinders with 1-3/4" or 2" piston rods (Includes: Ref. 21)

1шт.

20

D44115

OPEN END WRENCH

WRENCH - spanner, for 4" I.D. cylinders with 2" or 2-1/4" piston rods (Includes: Ref. 21)

1шт.

20

D44116

OPEN END WRENCH

WRENCH - spanner, for 4-1/2" I.D. cylinders with 2-1/2" piston rod (Includes: Ref. 21)

1шт.

21

D30107

PIN

- spanner wrench, for 2-1/2" I.D. - 4" I.D. cylinders

3шт.

21

D44118

SPARE PART

PIN - spanner wrench, for 4-1/2" I.D. cylinders

3шт.
