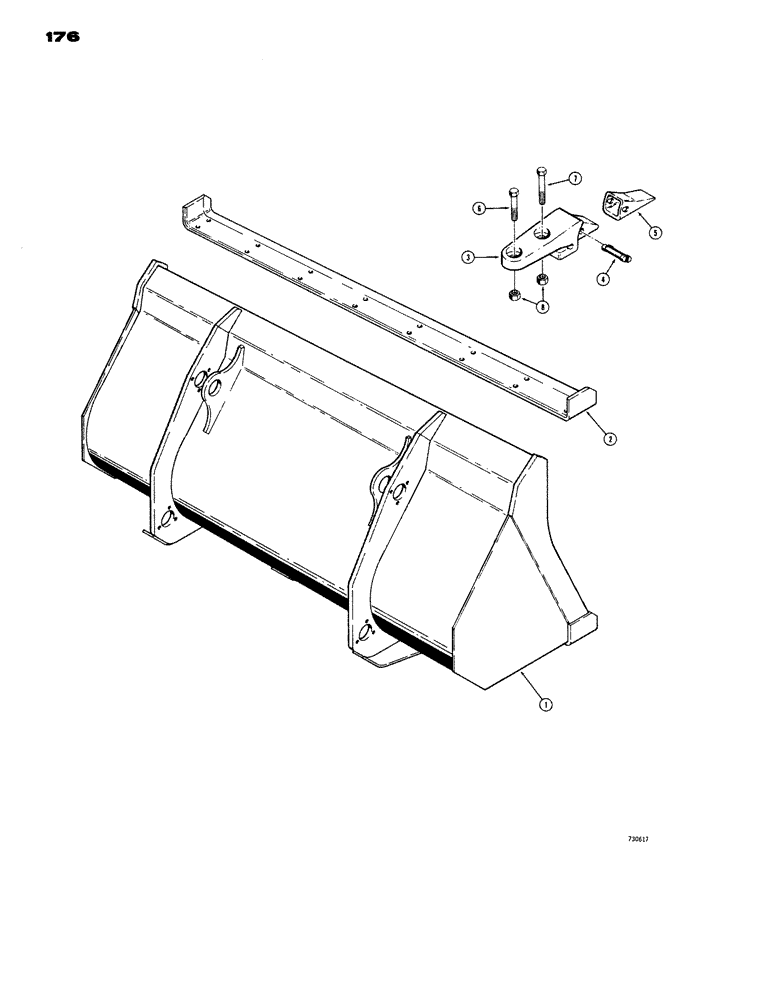

Запчасти Case W14 (176) - LOADER BUCKETS, 1-1/4 CU. YD. BUCKET (84" WIDE) MACHINERY (09) - CHASSIS

L50372

BUCKET ASSEMBLY - loader, 1-1/4 cu. yd., Includes: Ref. 1 and 2

1шт.

L72656

BUCKET ASSEMBLY - loader, 1-1/4 cu. yd., Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L50218

BLADE

CUTTING EDGE - bucket

1шт.

L51926

BUCKET ASSEMBLY - loader, 1-1/2 cu. yd., Includes: Ref. 1 and 2

1шт.

L72710

BUCKET ASSEMBLY - loader, 1-1/2 cu. yd., Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L50218

BLADE

CUTTING EDGE - bucket

1шт.

L51871

BUCKET ASSEMBLY - loader, 1-3/4 cu. yd., Includes: Ref. 1 and 2

1шт.

L72699

BUCKET ASSEMBLY - loader, 1-3/4 cu. yd., Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L112523

EDGE, CUTTING

CUTTING EDGE - bucket

1шт.

D50780

TOOTH

ASSEMBLY - bucket, Includes: Ref. 3 - 5

8шт.

3

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth

1шт.

4

D39094

BUCKET TOOTH KEY

FLEX PIN - tooth, bucket teeth

1шт.

5

D51750

BUCKET TOOTH POINT

POINT - tooth, bucket teeth

1шт.

6

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

HHCS - 5/8" - 11 NC x 2-1/2", bucket teeth

8шт.

7

129-563

NUT,5/8"-11, G8

- hex., lock (5/8" - 11 NC), bucket teeth

16шт.

8

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

HHCS - 5/8" - 11 NC x 2-1/2", bucket teeth

8шт.
