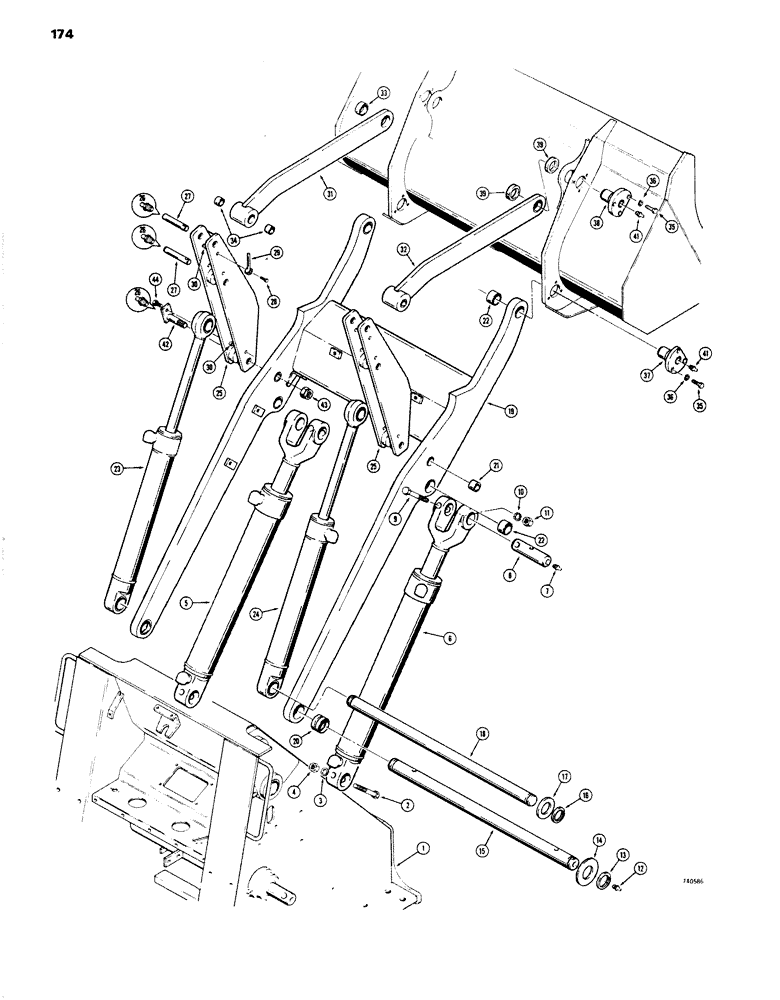

Запчасти Case W14 (174) - LOADER LIFT FRAME AND RELATED PARTS (09) - CHASSIS

1

REF

INSTRUCTION

FRONT FRAME ASSY, articulated loader, see Figure 156

1шт.

2

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

HHCS - 1/2" - 13 NC x 5-1/4" (Replaces 13-884 )

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

25-108

NUT,1/2"-13, G5

Hex

2шт.

5

REF

INSTRUCTION

CYLINDER - loader lift, LH, parts list Figure 190

1шт.

6

REF

INSTRUCTION

CYLINDER - loader lift, RH, parts list Figure 190

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

NPT

2шт.

8

L51558

PIN,50.8mm OD x 121.92mm L

Mounting, lift cylinder to lift arm frame

2шт.

9

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

10

131-10

NUT,1/2"-13, GB

WASHER - med. sect. lock, 1/2" (Replaces 92-8 )

2шт.

11

131-10

NUT,1/2"-13, GB

(Replaces 25-108 )

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

NPT

2шт.

13

L16015

RING

Pin retaining, lift frame

2шт.

14

L47700

WASHER

Special

1шт.

15

L50516

SHAFT

Lift frame pivot

1шт.

16

D25280

SNAP RING,#175, Ext

2шт.

17

L50511

WASHER

Special

1шт.

18

L50517

SHAFT

Bucket cylinder pivot

1шт.

L58542

ARM

FRAME ASSEMBLY - loader lift, Incl. Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

FRAME - lift

1шт.

REFERENCE ILLUSTRATION PAGE IN THE AREA BETWEEN LIFTING ARMS,ITEM 19.TWO OF PART L50522 ARE WELDED TOGETHER TO FORM THIS LARGE SUPPORT AND THE SUPPORT BRACKETS ARE PART L52234.

1шт.

20

L50508

BUSHING,63.75mm ID x 76.2mm OD x 40mm L

Lift arm to chassis, 1-1/2" long, if used

2шт.

20

L55873

BUSHING,63.75mm ID x 76.22mm OD x 50mm L

Lift arm to chassis, 2" long, if used

2шт.

21

L50510

BUSHING

Lift arm, 1-1/2" I.D. x 1-7/8" O.D., if used

2шт.

21

L55747

BUSHING

Lift arm, 1-1/2" x 2-1/8" O.D., if used

2шт.

22

L50509

BUSHING,51.104mm ID x 63.5mm OD x 38.1mm L

Lift arm to lift cylinder, Serial Range: and-bucket

4шт.

23

REF

INSTRUCTION

CYLINDER - bucket, LH, see Figures 191A and 193A

1шт.

24

REF

INSTRUCTION

CYLINDER - bucket, RH, see Figures 191A and 193A

1шт.

25

L50525

SPARE PART Bucket, RH - all buckets, LH - standard bucket, before tractor S/N 9112117, order L35712

1-2шт.

25

L35712

ARM ASSY.

BELLCRANK - bucket, RH - all buckets, LH - standard bucket, tractor S/N 9112117 and after

1-2шт.

25

L54269

SPARE PART Bucket, LH - 4-In-1 bucket, not shown, before tractor S/N 9112117, order L35713

1шт.

25

L35713

SPARE PART Bucket, LH - 4-In-1 bucket, not shown, tractor S/N 9112117 and after

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

NPT

6шт.

27

L50514

PIN

Bellcrank to bucket link and bucket cylinder

4шт.

28

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

29

R17756

ROD,12.7mm OD x 109.54mm L

Eye, retaining

4шт.

30

131-10

NUT,1/2"-13, GB

6шт.

31

L50518

LINK

Bucket, LH, standard bucket only

1шт.

31

L73008

LINK

Bucket, LH, 4-In-1 bucket only, not shown

1шт.

32

L73007

DRAG LINK

Bucket, RH 4-in-1 bucket only, Incl. Ref. 33 and 34

1шт.

33

L50539

BUSHING,51.05mm ID x 63.5mm OD x 25.4mm L

Link to bucket, both RH and LH links

1шт.

34

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

Link to bellcrank, both RH and LH links

2шт.

35

26-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 8

Standard bucket only

12шт.

36

92-10

LOCK WASHER,5/8"

Standard bucket only

12шт.

37

L54454

PIN,139.7mm OD x 101.6mm L

Bucket to arm, standard bucket only

2шт.

38

L54454

PIN,139.7mm OD x 101.6mm L

Bucket to links, standard buckets only (Replaces L195-2155)

2шт.

39

195-2155

WASHER,2 1/16" x 3" x .109"

Plain, 2" I.D. x 3" O.D., standard bucket only

4шт.

40

RESERVED

1шт.

41

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/2"- 28 NPT

4шт.

42

L54391

PIN

SPARE PART Bellcrank to lift arm

2шт.

43

131-43

LOCK NUT,1 1/2"-12

2шт.

44

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Pin mounting

2шт.

STANDARD BUCKETS USE ONLY L52241 RH AND L50518 LH LINKS

1шт.
