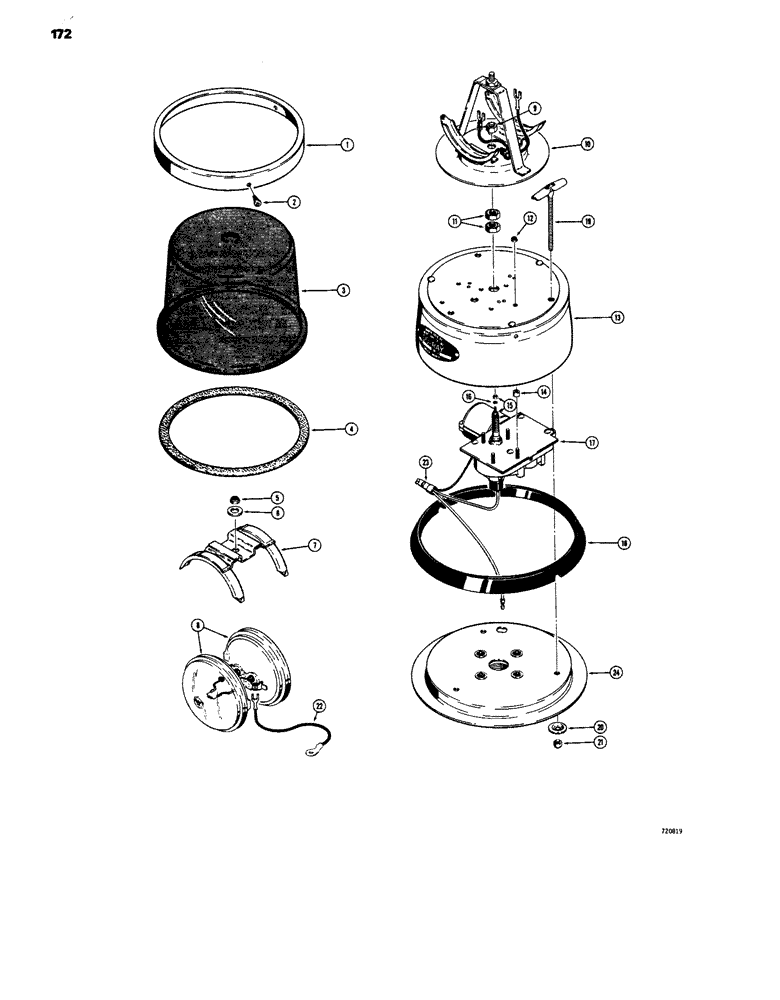

Запчасти Case W14 (172) - ROTATING BEACON (09) - CHASSIS

L16676

BEACON

ASSEMBLY - 360 degree rotating, 24 volt (Red lens), Includes: Ref. 1 - 23

1шт.

L16100

BEACON

ASSEMBLY - 360 degree rotating, 24 vonl (Amber lens), Includes: Ref. 1 - 23

1шт.

1

L32219

RING - clamp, Serial Range: lens-body

1шт.

2

168-70

DRIVE SCREW,Type U, Rnd Hd, #8 x 3/8"

- self-tapping (#8 - 32 NC x 3/8")

3шт.

3

L32230

LENS

- beacon, red

1шт.

3

L32221

LENS

- beacon, amber

1шт.

THERE IS A BLUE LENS AVAILABLE FOR A187985 and A187528, ORDER PART 127158A1

1шт.

4

L32220

GASKET -, Serial Range: lens-body

1шт.

5

131-204

NUT,1/4"-20

NUT - hex., lock (1/4" - 20 NC)

1шт.

6

95-4

WASHER,1/4"

- standard wrot () 1/4"

1шт.

7

L32222

BRACKET - retainer, sealed beam

1шт.

8

L32223

LAMP

LIGHT - sealed beam, 24 volt

2шт.

9

129-303

NUT,3/8"-16, G5, LH

- hex. (38" - 24 NF) L.H. thread

1шт.

10

L32224

PLATE - mounting, light

1шт.

11

L32225

NUT

- special, brass

2шт.

12

131-29

LOCK NUT,#8-32, GB

NUT - hex. lock (#8 - 32 NC)

4шт.

13

L32226

BASE

- motor and lens

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER -, Serial Range: motor-base

4шт.

15

129-3

NUT,#4-40

2шт.

16

192-3

LOCK WASHER

- med. sect. lock (#4)

1шт.

17

L32229

MOTOR - electric, 24 volt

1шт.

18

L32227

GASKET

- base

1шт.

19

L35148

BOLT

- special, "T" type

3шт.

20

L35146

LOCK WASHER

WASHER - special, dished type

3шт.

21

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

3шт.

22

L35144

WIRE - ground

1шт.

23

T29401

NUT

- wire, twist on (Small white)

1шт.

24

L16101

MOUNT - beacon

1шт.
