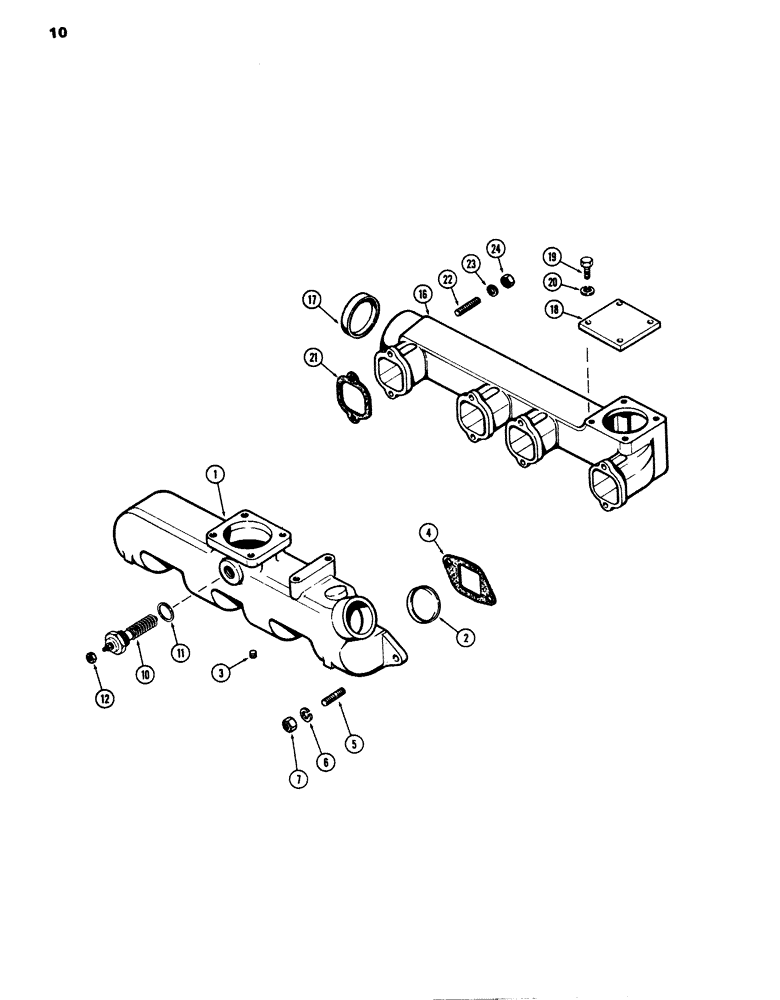

Запчасти Case W14 (010) - MANIFOLDS, (336 BD) DIESEL ENGINE, INTAKE MANIFOLD, EXHAUST (02) - ENGINE

1

A59225

MANIFOLD

ASSY. - intake, Includes: Ref. 2

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup type)

1шт.

3

221-1110

PIPE,Nipple, 1/8" NPT x 2 1/2"

PLUG - (1/8" P.T., sq. hd.)

1шт.

4

A58662

MANIFOLD GASKET

- intake manifold

4шт.

5

A59077

STUD

- intake manifold (3/8" N.C. x 1-3/4")

8шт.

6

92-6

LOCK WASHER,3/8"

8шт.

7

25-106

NUT,3/8"-16, G5

- intake manifold (3/8" N.C. hex.)

8шт.

10

A66333

HEATER

ASSY. - intake manifold (Replaces A34278)

1шт.

REF. 10 - LATER UNITS DID NOT USE THIS ITEM,TO FILL THE HOLE ORDER PLUG A20917.

1шт.

11

A20916

MANIFOLD GASKET

GASKET - heater

1шт.

12

129-503

NUT,1/4"-20, Brass

Heater terminal 1/4"-20, Brass

1шт.

16

A65272

MANIFOLD

ASSY. - exhaust, Includes: Ref. 17 - 20

1шт.

17

A58750

PLUG,Cup, 3 1/4", Stainless

- (3-1/4" cup type), exhaust manifold

1шт.

18

A58665

COVER

- exhaust manifold

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover, exhaust manifold Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

20

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

4шт.

21

A58666

MANIFOLD GASKET

- exhaust manifold

4шт.

22

A59077

STUD

- exhaust manifold (3/8" N.C. x 1-3/4")

8шт.

23

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

8шт.

24

131-903

NUT,3/8"-16

NUT - exhaust manifold (3/8" N.C., Seezpruf)

8шт.
