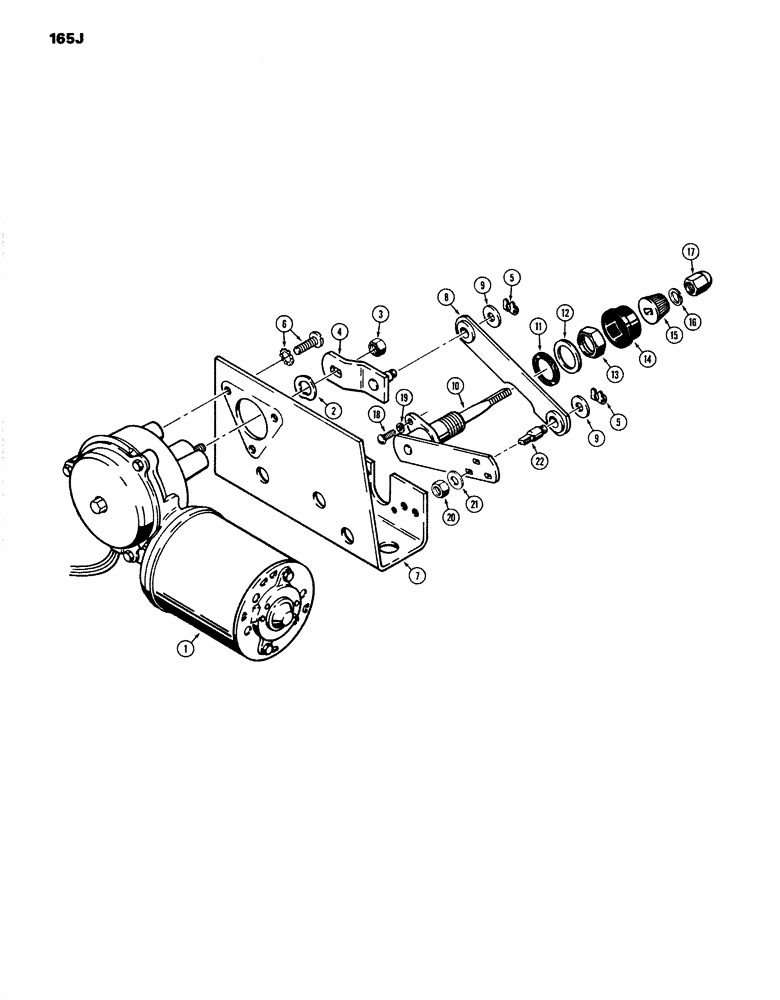

Запчасти Case W14 (165J) - L35259 AND F93455 WIPERS (09) - CHASSIS

L35259

WIPER MOTOR

MOTOR - wiper, front (Bullet connectors) Use F93945, Includes: Ref. 1 - 17

1шт.

F93455

MOTOR, ELECTRIC

MOTOR - wiper, front (Spade connectors), Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - 24V, Includes: Ref. 2 and 3

1шт.

2

F44453

WASHER

- wave

1шт.

3

193-1001

NUT,Keps, w/LW, 1/4"-28

AND EXTERNAL WASHER - 1/4" 28 NF

1шт.

4

A36091

ARM

- drive

1шт.

5

D71414

CLIP

- spring

2шт.

6

D72849

SCREW

AND WASHER - No. 10 - 32 NF

3шт.

7

D72850

BRACKET

1шт.

8

D71427

LINK,85.85mm L

1шт.

9

A22431

WASHER

SPACER - washer

2шт.

D72848

SHAFT

AND PIVOT, Includes: Ref. 10 - 17

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

11

D71417

SPECIAL WASHER

WASHER - felt

1шт.

12

D71418

WASHER

- flat

1шт.

13

D71419

NUT

1шт.

14

D71420

CAP

BOOT - rubber

1шт.

15

D71421

TOOL

DRIVER

1шт.

16

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER - sect. lock, 5/16"

1шт.

17

D71422

NUT

- cap

1шт.

18

F44456

SCREW,0.19" - 32 x 3 3/4"

- round head slotted, No. 10 - 32 NF x 3/8" plated, Includes: Ref. 19

2шт.

19

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

20

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

21

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER - flat, 1/4" plated

1шт.

22

D73642

PIN

PIN - threaded

1шт.

COMMENTS ON L35259 SHOULD READ USE F93455.

1шт.

KIT NUMBER IS N7778

1шт.

HARDWARE KIT FOR L33839 WIPER MOTOR

1шт.

WIPER ARM IS T42555 and BLADE IS T42556

1шт.

FOR REAR WIPER MOTOR ORDER L33839 AND

1шт.
