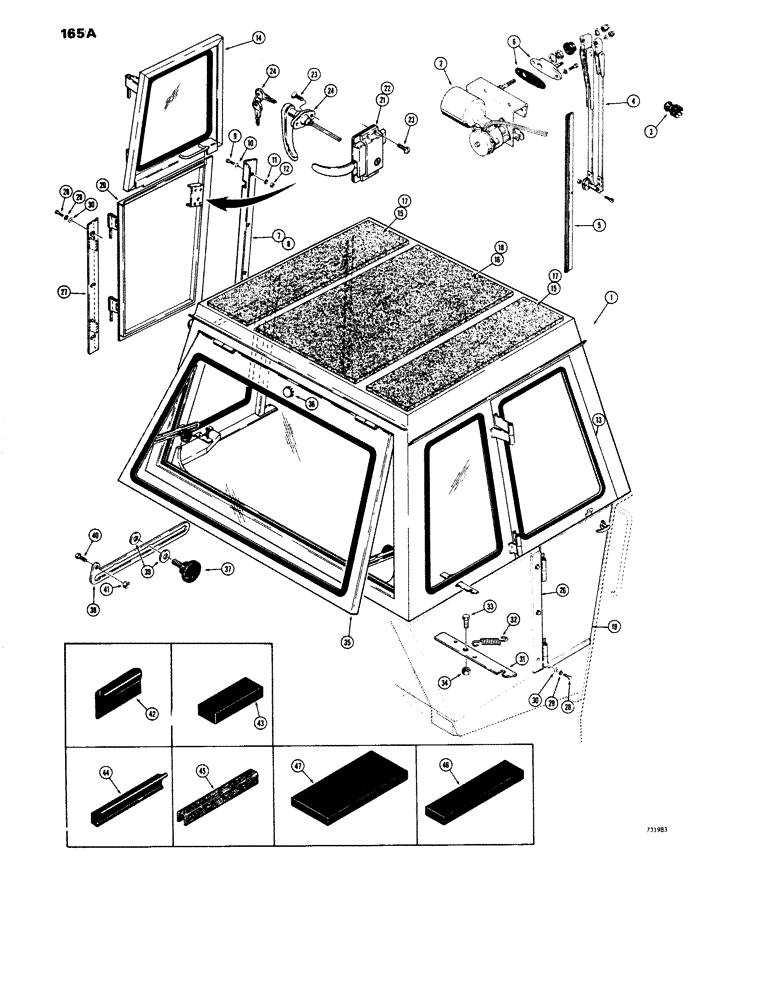

Запчасти Case W14 (165A) - L50462 AND L50581 CABS, DOORS, WINDOWS AND RELATED PARTS (09) - CHASSIS

L50462

CAB - all weather (Machinery Item) Sims No.1000-135, Includes Ref. 1 - 41

1шт.

L50581

CAB - ROPS (Machinery Item) Sims No.1000-215, Includes Ref. 1 - 41

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

REF

INSTRUCTION

MOTOR - wiper, see Figure 165J

1шт.

REF. 2 SEE FIGURE 165J

1шт.

3

L35743

SWITCH

L35259 motor, bullet terminal

1шт.

REF. 3 SEPARATE KNOB PART IS A42578

1шт.

3

F63532

SWITCH

F93455 motor, spade terminal

1шт.

4

L35260

ARM

Windshield wiper, 20"

1шт.

5

L35261

BLADE

Windshield wiper, 20"

1шт.

6

L35753

ADAPTER

Double arm wiper

1шт.

7

L35790

SPARE PART Lower, RH front

1шт.

8

L35791

SPARE PART Lower, LH front

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

10

195-104

WASHER,3/8"

3шт.

11

192-21

LOCK WASHER,3/8"

3шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

3шт.

13

L35792

DOOR

SPARE PART FRAME - Upper, RH

1шт.

14

L35793

DOOR

FRAME - Upper, LH

1шт.

15

L35794

SPARE PART Roof, RH and LH side, L50462 cab only

2шт.

16

L35795

INSULATOR

SPARE PART Roof, Center, L50462 cab only

1шт.

17

L35803

SPARE PART Roof, RH and LH side, L50581 cab only

2шт.

18

L35806

SPARE PART Roof, middle, L50581 cab only

1шт.

19

L35796

SPARE PART Lower, RH

1шт.

20

L35797

DOOR

Lower, LH

1шт.

21

L35738

LATCH

Door, inside, RH

1шт.

22

L35737

LATCH

Door, inside, LH

1шт.

Ref. 21 and 22 the L35738 is LH and the L35737 is RH

1шт.

23

187-988

SELF-TAP SCREW,0.19"-16 x 3/4"

12шт.

24

T42591

HANDLE

ASSEMBLY - outside, with keys

2шт.

25

RESERVED

1шт.

26

L35804

SPARE PART Hinge mounting, RH

1шт.

27

L35805

SPARE PART Hinge mounting, LH

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

29

192-21

LOCK WASHER,3/8"

6шт.

30

195-104

WASHER,3/8"

6шт.

31

L35800

LATCH ASSY.

Door hold back

2шт.

32

L35748

SPRING

Door hold back

2шт.

33

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

34

131-52

NUT,3/8"-16, GC

2шт.

35

L35802

SPARE PART FRAME - rear, slideout

1шт.

36

205-28

SPARE PART PLUG - rear window wiper hole

1шт.

37

L30087

KNOB

Rear window hold out

2шт.

38

T42594

BRACE

ARM - rear window hold out

2шт.

39

195-104

WASHER,3/8"

4шт.

40

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

41

86625061

NUT,1/4"-20, GB

2шт.

42

L35798

RUBBER

Door, bottom, 50 ft. roll 32

1шт.

43

L35799

RUBBER

SPARE PART Self-adhesive, door gasket, 50 ft. roll, 3/8" x 5/8"

1шт.

44

L35732

STRIP

WEATHER, MATERIAL - 50 ft. roll

1шт.

45

L35759

SPARE PART MATERIAL - 50 ft. roll

1шт.

46

L35789

SPARE PART MOUNTING - 50 ft. roll, L50462 cab only

1шт.

47

L35801

FOAM

RUBBER MOUNTING - 50 ft. roll, L50581 cab only

1шт.
