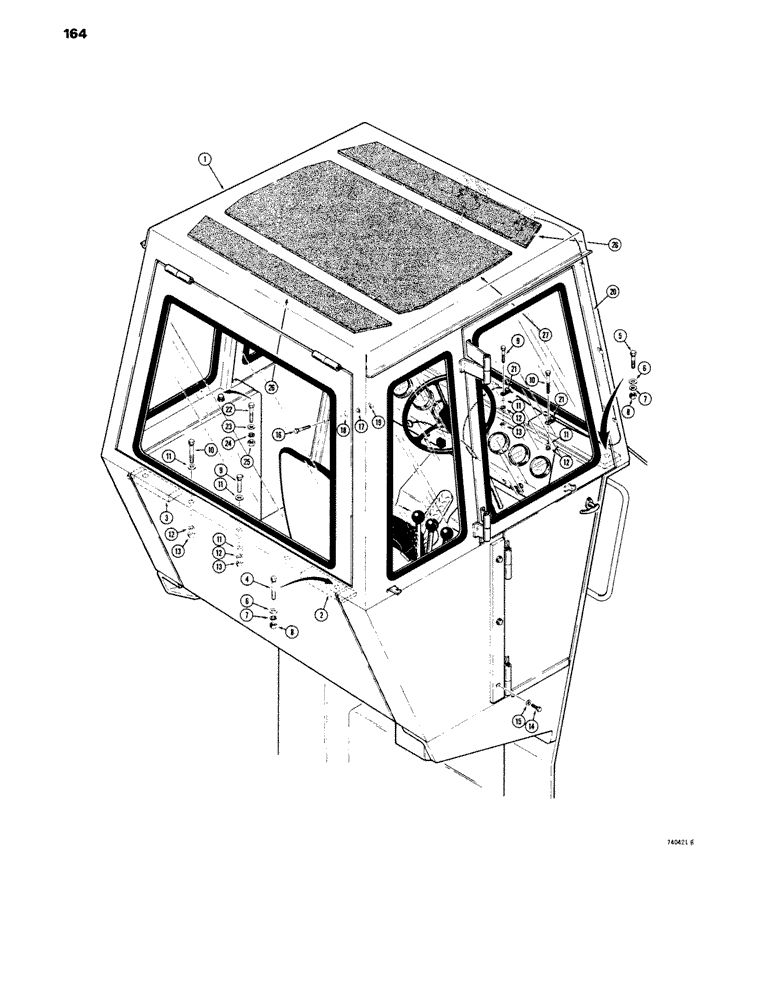

Запчасти Case W14 (164) - ROLL-OVER PROTECTION STRUCTURE AND CAB (09) - CHASSIS

1

L50580

ROPS - canopy (Machinery Item) Order L80531 Kit to convert to L50581 Cab (For service order L59652 canopy)

1шт.

1

L50581

CAB - ROPS, machinery item (Sims #1000-215) Parts list Figure 165B

1шт.

1

L50462

CAB - all wather, machinery item (Sims #1000 -135) Parts list Figure 165B

1шт.

1

L57831

CAP - ROPS, machinery item (Sims #1000-347) Parts list Figure 165F

1шт.

1

L59652

CANOPY - ROPS (Machinery Item) Order L80598 Kit to convert to L57831 Cab

1шт.

2

L80531

KIT - converts L50580 canopy to L50581 cab (Machinery item)

1шт.

3

L80598

KIT - converts L59652 canopy to L57831 cab (Machinery item)

1шт.

4

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

HHCS - 3/4" - 10 NC x 3-1/2" (Grade 8) roll-over protedtion structures only

2шт.

4

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

L50462 all weather cab only Hex, 3/4"-10 x 2", G8

2шт.

5

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

HHCS - 3/4" - 10 NC x 2-1/2" (Grade 8) Roll-over protection structures only

2шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(L50462 all weather cab only) Hex, 1/2"-13 x 2", G5

2шт.

5a

95-8

WASHER,1/2"

flat, L50462 all weather cab only 1/2"

2шт.

5b

92-8

LOCK WASHER,1/2"

L50462 all weather cab only 1/2"

2шт.

5c

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC) L50462 all weather only

2шт.

6

L52734

WASHER

- special

4шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened

4шт.

8

131-656

LOCK NUT,5/8"-11, GB

NUT - hex., lock (3/4" - 10 NC)

2-4шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4-6шт.

10

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2-4шт.

11

95-8

WASHER,1/2"

- standard wrot 1/2"

8-1шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4-5шт.

14

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(Door to operator's compartment) Hex, 1/4"-20 x 3/4", G5, Full Thd

6шт.

15

A24400

WASHER - plain (#10 guage)

6шт.

16

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(Cab door stop to operator's compartment) Hex, 1/4"-20 x 1", G5

6шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12шт.

18

95-4

WASHER,1/4"

- plain () 1/4"

12шт.

19

25-104

NUT,1/4"-20, G5

12шт.

20

L50619

HARNESS - writing, heater and wiper (Cab only)

1шт.

21

49836

CLAMP

- harness (Cab only)

2шт.

22

13-878

HHCS - 1/2" - 13 NC x 1-3/4" (L50462 all weather cab only)

2шт.

23

95-8

WASHER,1/2"

flat, L50462 all weather cab only 1/2"

4шт.

24

92-8

LOCK WASHER,1/2"

L50462 all weather cab only 1/2"

2шт.

25

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC ) L50462 all weather cab only

2шт.

26

L35803

HEADLINER - L50580 ROPS

2шт.

27

L35806

HEADLINER - L50580 ROPS

1шт.
