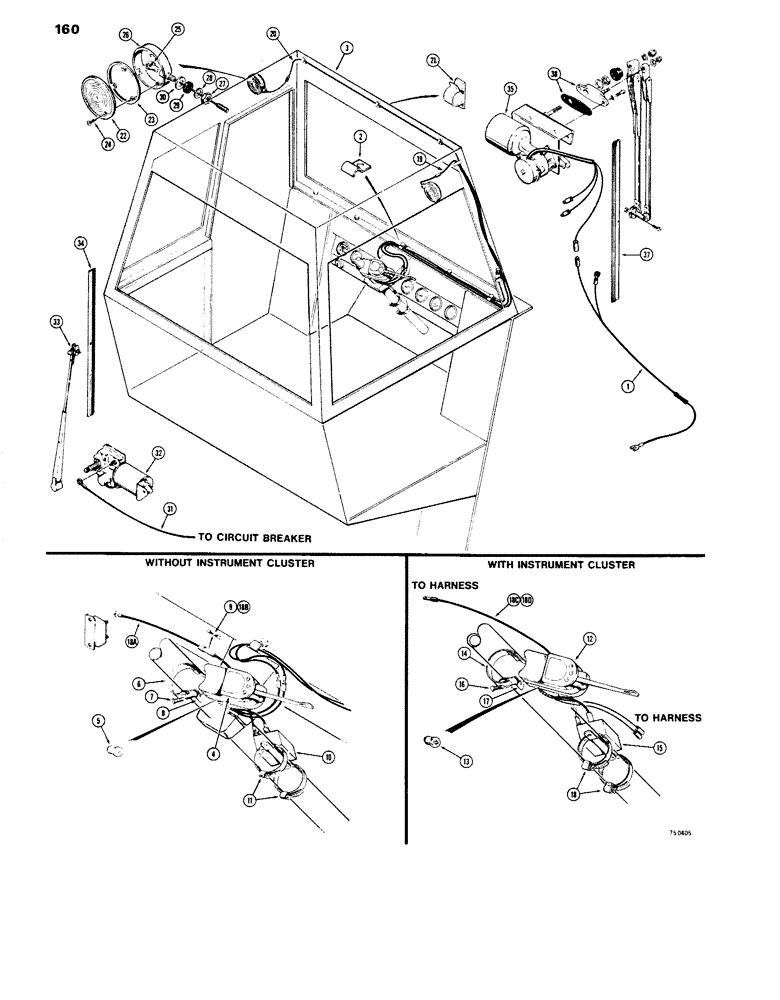

Запчасти Case W14 (160) - CAB WITH TURN SIGNAL AND FLASHER LIGHTS (09) - CHASSIS

1

L59392

SPARE PART Heater and wiper, Non-fused line-not shown

1шт.

1

L50619

SPARE PART Heater and wiper, Fused line

1шт.

223-10

FUSE,10 Amp, Type 3AG

No. AGC10

1шт.

2

49836

CLAMP

Harness

2шт.

3

CAB - operator, see Figure 164

1шт.

L52823

SIGNAL

Turn and flasher, uses fused line, use L73667 signal and L59393 wire, Includes Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH - turn signal

1шт.

5

A14928

BULB

Direction indicator, 24 volt

1шт.

6

L32658

STRAP

Mounting, signal

1шт.

L32659

KIT

HARDWARE PACKAGE - mounting, turn signal, Includes Ref. 7 and 8

1шт.

7

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

Flat head machine

2шт.

8

NSS

NOT SOLD SEPARAT

CLIP - strap mounting

2шт.

9

223-6

FUSE,6 Amp, Type 3AG

No. AGC6

1шт.

10

L59781

FLASHER UNIT

Signal

1шт.

REF.10 - 2 PRONG (REPLACES 3 PRONG TYPE)TAPE OFF GROUND WIRE.

1шт.

11

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Signal mounting

2шт.

L59394

SIGNAL

Turn and flasher, 3 wires to harness, use L73667 signal, L73672 wire and F43508 spade

1шт.

L73667

SIGNAL

Turn and flasher, 2 wires to harness, Includes Ref. 12 - 17

1шт.

12

NSS

NOT SOLD SEPARAT

SWITCH - turn signal

1шт.

13

A14928

BULB

24 - volt, No 356

1шт.

14

L32658

STRAP

Mounting, signal

1шт.

15

L32657

FLASHER UNIT

Signal

1шт.

L32659

KIT

HARDWARE PACKAGE - mounting, turn signal, Includes Ref. 16 and 17

1шт.

16

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

Flat head machine

2шт.

17

NSS

NOT SOLD SEPARAT

CLIP - strap mounting

2шт.

18

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Flasher mounting

2шт.

18a

L59393

ELECTRICAL WIRE

WIRE Fused, to circuit breaker, models without instrument cluster, Includes Ref. 18B

1шт.

18b

223-6

FUSE,6 Amp, Type 3AG

No. AGC6

1шт.

18c

L73672

ELECTRICAL WIRE

WIRE To circuit breaker, models with instrument cluster

1шт.

18d

F43508

SPADE TERMINAL

SPADE - electrical connector, L73672 wire

1шт.

19

L17326

WIRE HARNESS

ASSEMBLY - signal to flasher, RH

1шт.

20

L17325

WIRE signal to flasher, LH

1шт.

21

L54606

CLIP

CLAMP - wire

2шт.

L43738

INTERIOR LIGHT

Flasher, double face, Includes Ref. 22 - 30

2шт.

L32214

LENS

KIT - light, flasher, Includes Ref. 22 - 24

2шт.

22

NSS

NOT SOLD SEPARAT

LENS - light, flasher

1шт.

23

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW - special

3шт.

25

L32257

BULB

24V, No.307

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - light, flasher, double face

1шт.

27

129-125

NUT,1/2"-20, G5

1шт.

28

192-23

LOCK WASHER,1/2"

1шт.

29

L32256

WASHER

Rubber

1шт.

30

195-105

WASHER,7/16"

Standard wrot, zinc plated

1шт.

31

L50658

SPARE PART Rear windshield wiper

1шт.

32

L33839

ELECTRIC MOTOR

Wiper, rear windshield, includes hardware, bottom mount

1шт.

33

T42555

ARM

Wiper, rear, windshield

1шт.

34

T42556

WINDSHIELD WIPER

BLADE, rear

1шт.

35

REF

INSTRUCTION

MOTOR - wiper, front windshield, see Figure 165J

1шт.

REF. 35 SEE FIGURE 165K

1шт.

36

L35260

ARM

Wiper, front windshield

1шт.

37

L35261

BLADE

Wiper, front windshield

1шт.

38

L35753

ADAPTER

Double arm

1шт.
