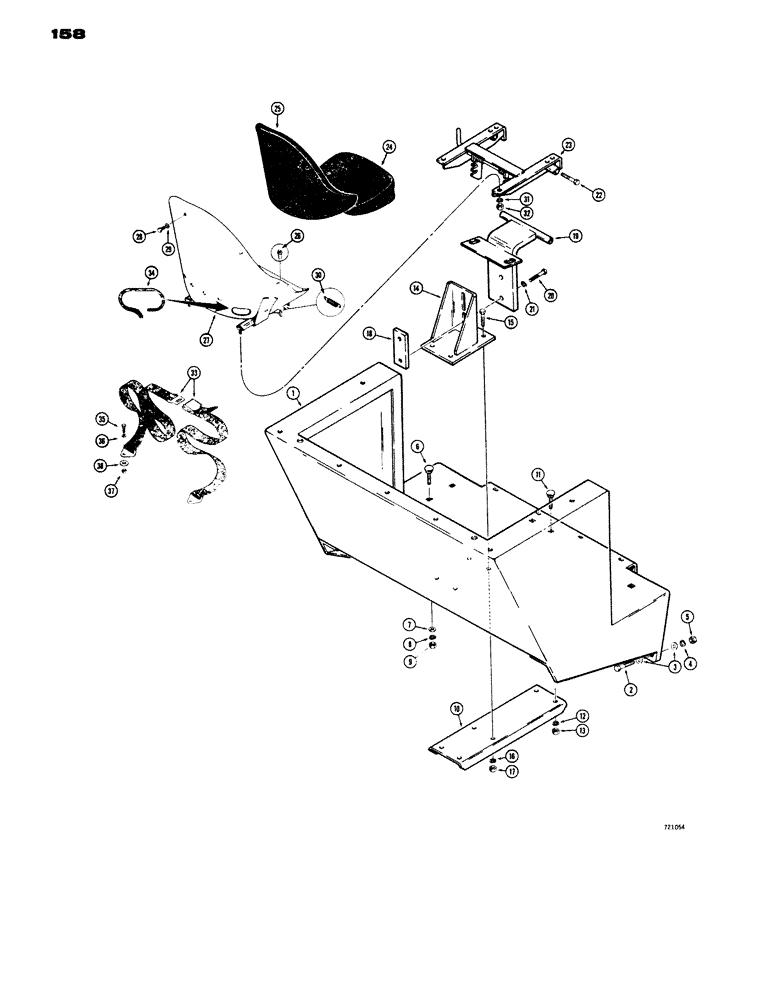

Запчасти Case W14 (158) - OPERATORS COMPARTMENT AND SEAT (09) - CHASSIS

1

L54546

COMPARTMENT - operators (When stock is exhausted, order L55472 compartment for service)

1шт.

1

L55472

COMPARTMENT - operators

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

3

95-10

WASHER,5/8"

- flat () 5/8"

8шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

25-1010

NUT,5/8"-11, G5

4шт.

6

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

7

95-5

WASHER,3/8" x 7/8" x .083"

- flat (5/16")

4шт.

8

92-5

LOCK WASHER,5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC )

4шт.

10

L53580

STIFFENER - floor

1шт.

11

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

14

L48503

PEDESTAL - seat

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

16

92-8

LOCK WASHER,1/2"

4шт.

17

25-108

NUT,1/2"-13, G5

- hex., lock (1/2")

4шт.

18

L48484

PLATE - clamp

1шт.

19

L48485

MOUNTING PARTS

MOUNTING - seat

1шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

2шт.

23

L48573

TILT ADJUSTMENT - seat

1шт.

L46484

SEAT

ASSEMBLY - operator's, Includes: Ref. 24 - 32

1шт.

24

D52470

CUSHION

- seat

1шт.

25

A42747

BACKREST

CUSHION - backrest

1шт.

26

L33658

PIN

- cushion alignment

2шт.

27

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

28

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

29

195-525

WASHER,3/8", SAE

- plain (3/8")

5шт.

30

L30533

VALVE SPRING

SPRING - adjusting

2шт.

31

92-5

LOCK WASHER,5/16"

4шт.

32

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

L50040

KIT

- seat belt, 3" webbing, Includes: Ref. 33 - 38

1шт.

33

D60615

SAFETY BELT ,3.00" W

3.00" W

1шт.

34

D35424

LINING

TRIM - seat shell

1шт.

35

113-41

BOLT,Hex, 1/4" - 20 x 1", Gr 2

HHCS - 1/2" - 13 NC x 1-1/2" (Zinc plated)

2шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

37

131-70

NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC)

2шт.

38

DR10768

WASHER

- seat belt

2шт.
