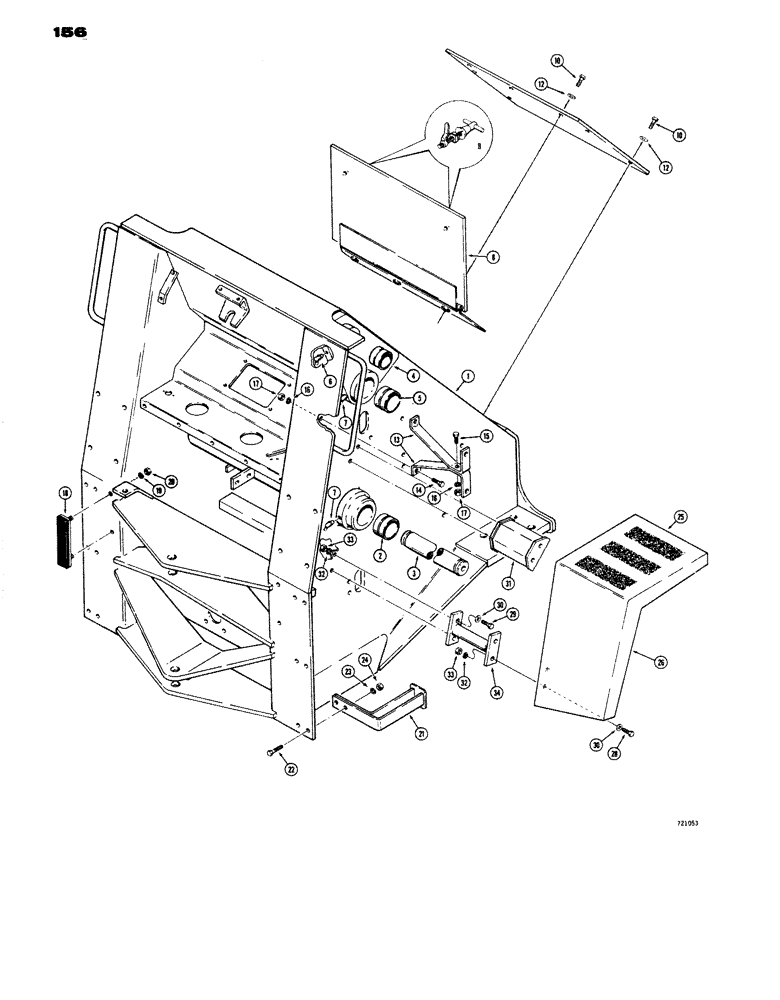

Запчасти Case W14 (156) - FRONT FRAME AND FENDERS (09) - CHASSIS

L54597

FRONT FRAME ASSEMBLY - used on models without instrument cluster, Includes: Ref. 1 - 5

1шт.

L59528

FRONT FRAME ASSEMBLY - used on models with instrument cluster, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - articulated loader

1шт.

2

L50508

BUSHING,63.75mm ID x 76.2mm OD x 40mm L

- lift cylinder (1-1/2" long) if used

2шт.

2

L55873

BUSHING,63.75mm ID x 76.22mm OD x 50mm L

- lift cylinder (2" long) if used

2шт.

3

L50515

SHAFT

- pivot, lift cylinder

1шт.

4

L50951

BUSHING

- tilt cylinder pivot (1-1/2" long) if used

2шт.

4

L55874

BUSHING

- tilt cylinder pivot (2" long) if used

2шт.

5

L50508

BUSHING,63.75mm ID x 76.2mm OD x 40mm L

- lift frame pivot (1-1/2" long) if used

2шт.

5

L55873

BUSHING,63.75mm ID x 76.22mm OD x 50mm L

- lift frame pivot (2" long) if used

2шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree (1/8" NPT) Tilt cylinder pivot

2шт.

7

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Lift cylinder and lift frame pivot 90º, 1/8" NPT x .84" lg

4шт.

8

L50944

COVER - front frame (Used on models without instrument cluster)

1шт.

8

L58533

COVER - front frame (Used on models with instrument cluster)

1шт.

9

L48438

HANDLE

ASSEMBLY - front cover

2шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

11

RESERVED

1шт.

12

95-4

WASHER,1/4"

- standard wrot () 1/4"

3шт.

13

L47787

SUPPORT

BRACKET - light mounting

4шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Bracket to front frame)

4шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Bracket to bracket) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

6шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

6шт.

18

L47997

ELASTIC STOP

STOP - front to rear frame

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

21

L53618

STEP

- operators compartment access

6шт.

22

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

23

92-8

LOCK WASHER,1/2"

12шт.

24

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

12шт.

25

A55582

PAD

- non slip

6шт.

26

L48237

FENDER

- front, R.H.

1шт.

27

L48238

FENDER

- front, L.H. (Not shown)

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Fender to support) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

8шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 1-1/2" (Support to front frame)

8шт.

30

95-6

WASHER,3/8"

- standard wrot () 3/8"

16шт.

31

L48249

SUPPORT

- front fender, upper

2шт.

32

92-6

LOCK WASHER,3/8"

16шт.

33

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

16шт.

34

L51445

SUPPORT

- front fender, lower

2шт.
