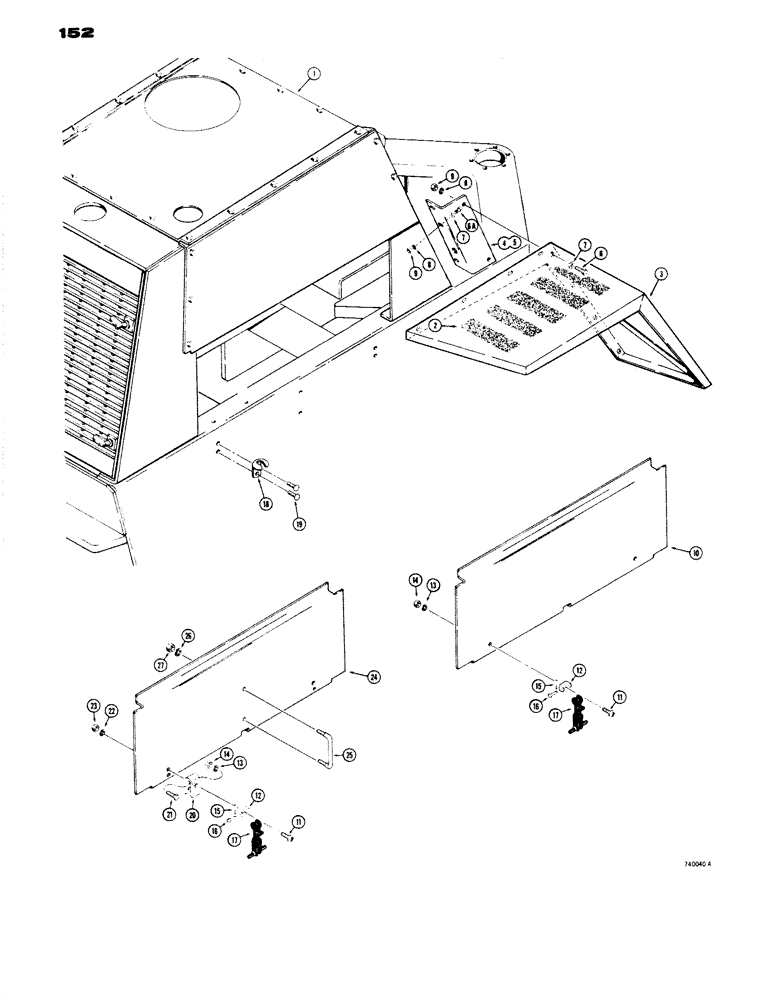

Запчасти Case W14 (152) - REAR FENDERS AND SIDE PANELS (09) - CHASSIS

1

REF

INSTRUCTION

HOOD - engine (See Figure 150 and 151A for related parts)

1шт.

2

A55582

PAD

Non slip

10шт.

3

L51462

FENDER

Rear, RH and LH

2шт.

4

L57330

BRACE

Rear fender to support, RH

1шт.

5

L50867

SPARE PART Rear fender to support, LH

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

6a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

7

95-6

WASHER,3/8"

16шт.

8

92-6

LOCK WASHER,3/8"

16шт.

9

25-106

NUT,3/8"-16, G5

16шт.

10

L50982

PANEL

Engine side, RH and LH (Models without backhoe use L59115 side panel, A23725 Handle, (2) 92-5 lockwashers and (2) 13-510 Bolts, Ref. 24 - 26)

2шт.

11

182-242

SCREW,Sl Pan Hd, 5/16" - 18 x 3/4"

Machine

4шт.

12

L47159

BRACKET

Anchor, hood panel

4шт.

13

92-5

LOCK WASHER,5/16"

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

4шт.

15

132-45

COTTER PIN,1/8" x 5/8"

4шт.

16

T11232

PIN

Anchor, hood panel

4шт.

17

L47157

HOOK

Panel

4шт.

18

L47158

BRACKET

Hook, hood panel

4шт.

19

151-552

RIVET,Pop, 3/16" x .825"

Bracket (3/16" x 5/8" long)

8шт.

20

L55527

BRACKET

Hood panel (Backhoe model only)

4шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Bracket mounting on backhoe model)

8шт.

22

92-5

LOCK WASHER,5/16"

Backhoe only

8шт.

23

9635082

NUT,5/16" - 18, Gr 5

Backhoe only

8шт.

24

L59115

PANEL

Engine side, RH and LH, Models without backhoe

2шт.

24

L57681

PANEL

Engine side, RH, Backhoe models

2шт.

25

A23725

HANDLE

Side panel (L59115 and L57681 side panel)

2шт.

26

92-5

LOCK WASHER,5/16"

4шт.

27

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.
