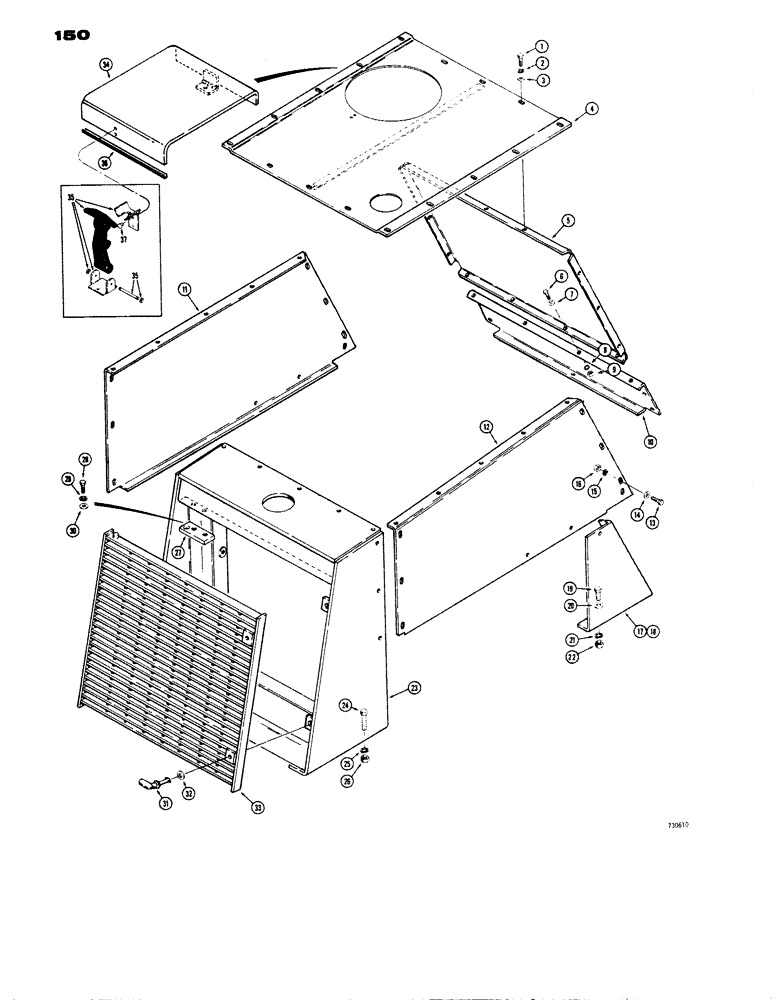

Запчасти Case W14 (150) - *GRILLE AND HOOD (09) - CHASSIS

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

16шт.

2

92-6

LOCK WASHER,3/8"

16шт.

3

95-6

WASHER,3/8"

- standard wrot () 3/8"

16шт.

4

L50692

HOOD

TOP - hood, engine

1шт.

5

L50697

PANEL

- front, upper (Models without fuel pressure gauge)

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

7

95-6

WASHER,3/8"

- standard wrot () 3/8"

8шт.

8

92-6

LOCK WASHER,3/8"

8шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

10

L50693

STRAP

PANEL - front, lower

1шт.

11

L50729

PANEL

SIDE PANEL - hood, L.H. (replaces L50730 )

1шт.

12

L50730

PANEL

SIDE PANEL - hood, R.H. (replaces L50729 )

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

14шт.

14

95-6

WASHER,3/8"

- standard wrot () 3/8"

14шт.

15

92-6

LOCK WASHER,3/8"

14шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

17

L50694

SUPPORT - hood, R.H. (front) When stock is exhausted, order L57198 post for service

1шт.

17

L57198

POST

SUPPORT - hood, R.H.(front)

1шт.

18

L50695

POST

SUPPORT - hood, L.H. (Front)

1шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

20

95-8

WASHER,1/2"

- standard wrot 1/2"

4шт.

21

92-8

LOCK WASHER,1/2"

4шт.

22

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

23

L50639

FRAME - grille mounting (Used on models without backup-up alarm)

1шт.

23

L57519

GUARD ASSY.

FRAME - grille mounting (Used on models with back-up alarm)

1шт.

24

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.

26

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

27

L50633

SUPPORT

- grille, upper

1шт.

28

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

95-6

WASHER,3/8"

- standard wrot () 3/8"

1шт.

31

L48699

RETAINER

- grille (When stock is exhausted order L55533 retainer for service )

2шт.

31

L55533

RETAINER

- grille

2шт.

32

L48760

WASHER

- special, grille retainer

2шт.

33

L50644

GRILLE

- radiator orotecting

1шт.

34

L55322

COVER - air cleaner (If used)

1шт.

35

L55329

CATCH

LATCH - holddown, air cleaner cover (If used)

1шт.

36

L55327

TRIM - quick edge (17" long) If used

1шт.

37

151-535

RIVET,Pop, 1/8" x .462"

Latch retaining, If used Pop, 1/8" x .462"

3шт.
