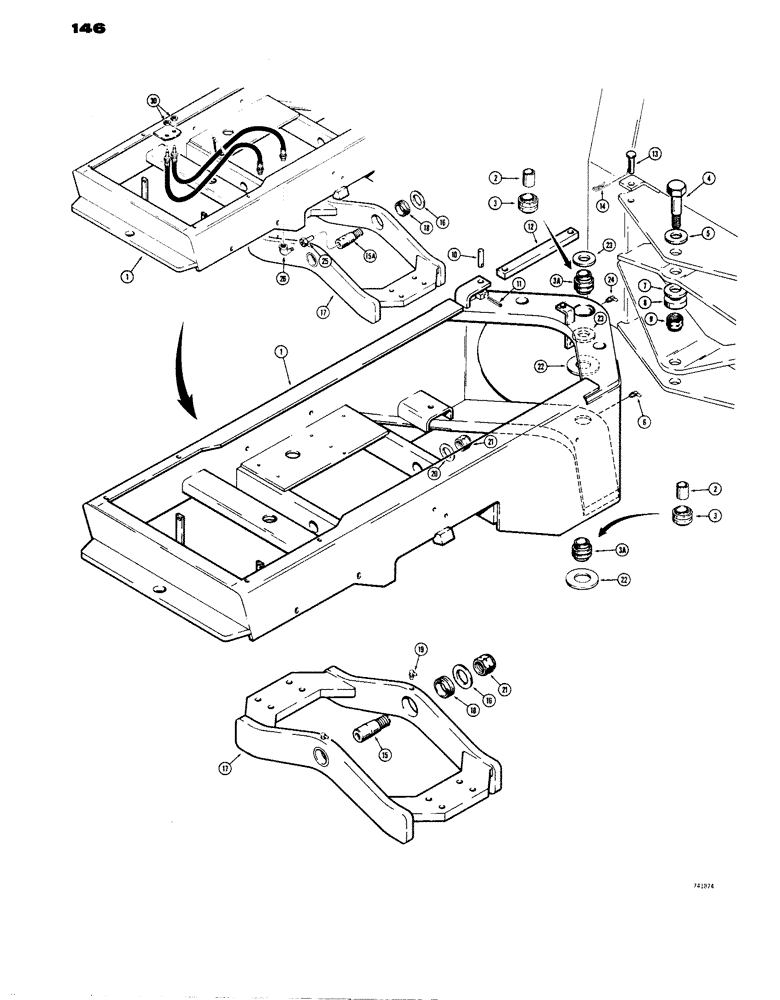

Запчасти Case W14 (146) - REAR FRAME AND TRUNNION (09) - CHASSIS

1

L50713

REAR FRAME ASSEMBLY - articulated loader (Used before tractor Sn. 9112230)

1шт.

1

L55413

REAR FRAME ASSEMBLY - articulated loader (Used on tractor Sn. 9112230 - 9112372 except 9112368)

1шт.

1

L55561

FRAME

- rear, Backhoe Models, not shown

1шт.

1

L57154

REAR FRAME ASSEMBLY - articulated loader (Used on tractor Sn. 9112373 and after - also used on tractor Sn. 9112368)

1шт.

2

L55640

BUSHING,38.1mm ID x 50.75mm OD x 57.15mm L

- rear pivot plate (used with D23601 bearing)

2шт.

3

D23601

HOUSING

BEARING ASSEMBLY - pivot (Used with L55413, L57154 and L55561 frames only)

2шт.

3a

L50810

BEARING ASSY

BEARING ASSEMBLY - pivot (used with L50713 frame only)

2шт.

4

L51025

PIN

BOLT - pivot

2шт.

5

D36478

WASHER

- special

2шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

7

L51472

WASHER,39mm ID x 63.5mm OD x 9.6mm Thk

- special

2шт.

8

L51051

WASHER,26.92mm ID x 63.5mm OD x 12.7mm Thk

- special

2шт.

9

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NC)

2шт.

REF. 9 - NUT IS A NF

1шт.

10

L51452

AXLE PIN

PIN - link

1шт.

11

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

12

L51230

LINK

- safety

1шт.

13

141-16

CLEVIS PIN,3/4" x 3"

PIN - clevis, 3/4"

1шт.

14

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - cotter, hair (replaces 136-146)

1шт.

15

L50450

PIN

- trunnion pivot (used on L50454 trunnion assembly)

2шт.

15a

L55325

PIN

- trunnion pivot (used on L55328 trunnion assembly)

2шт.

16

L46479

WASHER

- special

2шт.

17

L50454

TRUNNION

ASSEMBLY - rear frame (Used with L50713 and L55413 frame assemblies), Includes: Ref. 18 and 19

1шт.

17

L55328

FUNNEL

TRUNNION ASSEMBLY - rear frame (Used with L57154 frame), Includes: Ref. 18 and 19

1шт.

18

L50464

BUSHING

- trunnion, used before tractor Sn. 9112373 except Sn. 9112368

2шт.

18

L71190

BUSHING

- trunnion, used tractor Sn 9112366 and 9112373 and after

2шт.

19

219-58

FITTING

- grease, 90 degree (1/4" NPT) if used

2шт.

20

L47224

WASHER

- special

2шт.

21

131-77

NUT,1 1/2"-12

NUT - hex., lock (1-1/2" - 12 NF)

2шт.

22

L54562

WASHER

SEAL - bearing (3/16" thick) lower (used with L50810 bearing only)

2шт.

REF. 22 - PART IS A WASHER, MEASURES 1/4"

1шт.

22

L55851

WASHER,69mm ID x 117mm OD x 6.86mm Thk

SEAL - bearing (3/16" thick) lower (used with L55640 bearing only)

2шт.

REF. 22A - PART IS A WASHER, MEASURES 1/4"

1шт.

23

L53964

SEAL

- bearing (5/16" thick) upper

2шт.

24

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

25

L52499

BOLT

FITTING - special, trunnion greasing, trunnion pin lubrication system

2шт.

26

219-42

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

ELBOW - 90 degree (1/8" PTF), trunnion pin lubrication system

2шт.

27

L54693

HOSE

- grease, rear trunnion pin (27" long), trunnion pin lubrication system

1шт.

28

L54694

HOSE,4.8mm ID x 1041mm L

- grease, front trunnion pin (41" long), trunnion pin lubrication system

1шт.

29

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - hose retaining, trunnion pin lubrication system

1шт.

30

F53473

LOCK NUT,1/8-27 NPSM

- lock, grease hose to plate, trunnion pin lubrication system

2шт.
