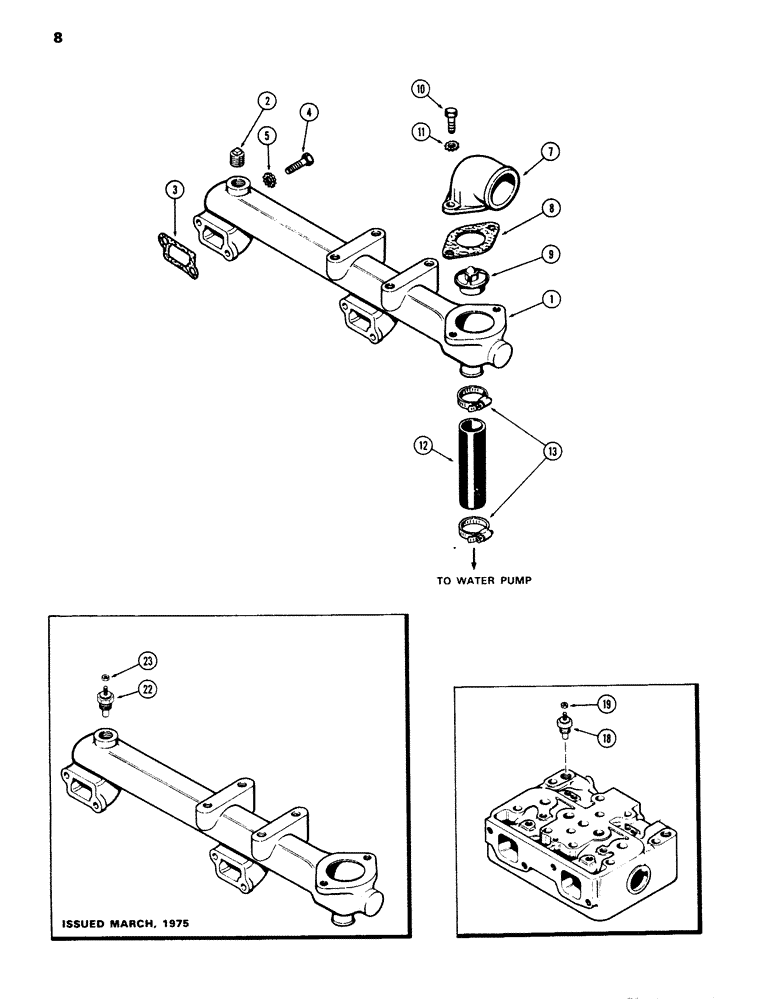

Запчасти Case W14 (008) - WATER MANIFOLD AND THERMOSTAT, (336 BD DIESEL ENGINE) (02) - ENGINE

1

A59211

MANIFOLD

- water

1шт.

2

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - (1/2" P.T., sq. hd.)

1шт.

3

A58637

MANIFOLD GASKET

- manifold

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

2шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

5

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

7

A60636

HOUSING

- thermostat

1шт.

8

G46907

GASKET

- thermostat housing

1шт.

9

A57641

THERMOSTAT

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

11

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

12

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water by-pass (1-1/4" I.D. x 3-5/16"

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4"

2шт.

18

A65588

SENDER UNIT

UNIT - temperature sending (3/8" P.T.), temperature sending unit in cylinder head

1шт.

19

193-1000

NUT,Keps, w/LW,#10-32

- sending unit terminal (#10 N.F. hex.), temperature sending unit in cylinder head

1шт.

22

L56217

UNIT

- temperature sending (1/2" P.T.), in water manifold

1шт.

23

193-1000

NUT,Keps, w/LW,#10-32

- sending unit terminal (#10 N.F. hex.), in water manifold

1шт.
