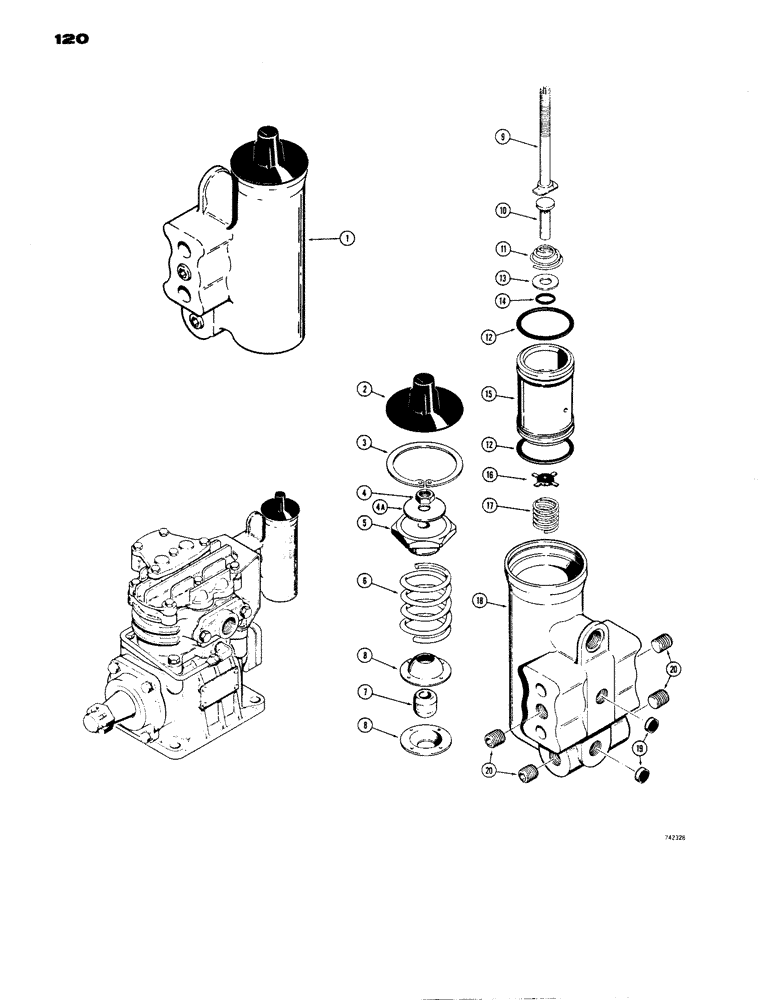

Запчасти Case W14 (120) - AIR COMPRESSOR GOVERNOR (09) - CHASSIS

1

L32563

GOVERNOR

ASSEMBLY - air compressor, Includes: Ref. 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - top, governor

1шт.

3

T28550

SNAP RING,1.50", Int, #150

1шт.

L31533

WASHER

ADJUSTING ASSEMBLY - governor, Includes: Ref. 4 - 9

1шт.

4

25-104

NUT,1/4"-20, G5

1шт.

4a

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

5

NSS

NOT SOLD SEPARAT

SEAT - spring, upper

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - tension

1шт.

7

NSS

NOT SOLD SEPARAT

GUIDE - adjusting spring

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - spring, lower

2шт.

9

NSS

NOT SOLD SEPARAT

SCREW - special, adjusting

1шт.

10

L31532

STEM

Exhaust

1шт.

11

L31531

VALVE SPRING

Stem, exhaust

1шт.

12

L31499

O-RING,1" ID x 40546" OD x 3"

Seal, piston

2шт.

Reference numbers preceded by an asterisk are included in L31808 governor repair kit.

1шт.

L31528

PLUNGER

PISTON ASSEMBLY - governor, Includes: Ref. 13 - 15

1шт.

13

L31541

WASHER

Special

1шт.

14

L31540

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

Seal, piston

1шт.

Reference numbers preceded by an asterisk are included in L31808 governor repair kit.

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - governor

1шт.

16

L31529

LOCK VALVE

Inlet and exhaust

1шт.

Reference numbers preceded by an asterisk are included in L31808 governor repair kit.

1шт.

17

L31530

SPRING

Valve, inlet and exhaust

1шт.

Reference numbers preceded by an asterisk are included in L31808 governor repair kit.

1шт.

18

L31527

BODY

Governor, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

FILTER - inlet and outlet ports

2шт.

Reference numbers preceded by an asterisk are included in L31808 governor repair kit.

1шт.

20

221-1849

PLUG

Pipe, hex. socket head (1/8" NPT)

4шт.
