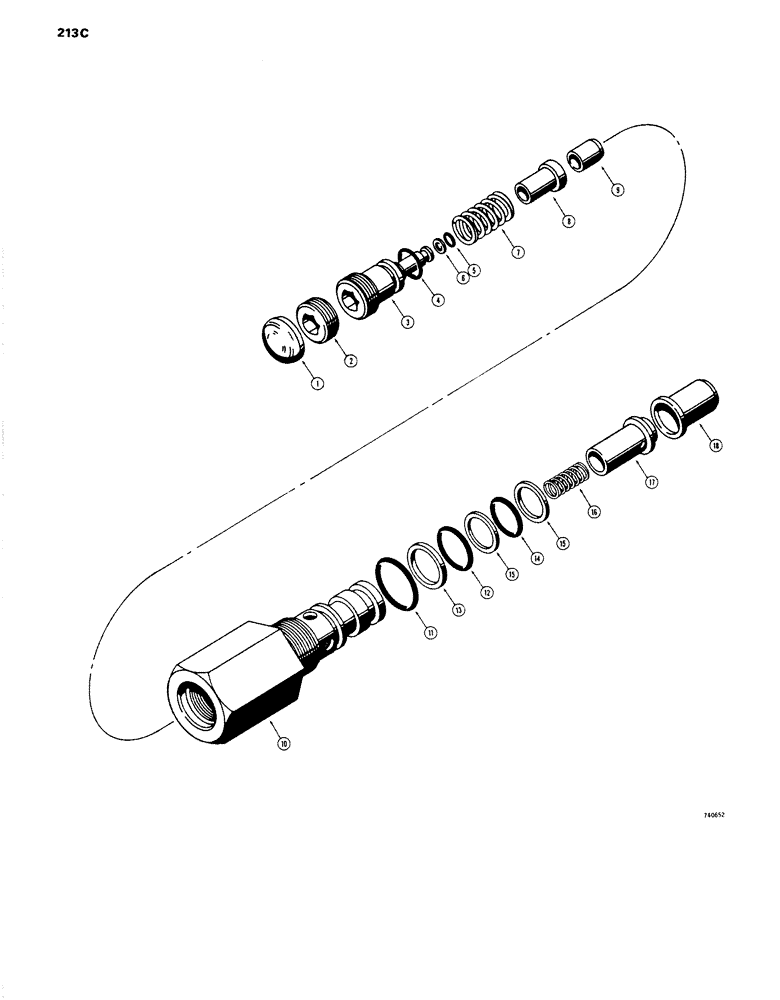

Запчасти Case W14 (213C) - L32633 SECONDARY RELIEF VALVE, L33429 SECONDARY RELIEF VALVE (08) - HYDRAULICS

L32633

VALVE

- secondary relief, Includes: Ref. 1 - 18

3шт.

1

41-14

PLUG

- expansion

1шт.

2

L3349

PLUG - end cap

1шт.

3

D65137

GUIDE

- spring

1шт.

4

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- large

1шт.

5

A51274

O-RING,0.145" ID x 0.285" OD

- small

1шт.

6

D54860

RING

- backup, seal

1шт.

7

D37148

SPRING

- plunger

1шт.

8

D37151

PLUNGER

- relief

1шт.

9

D37075

SEAT

- plunger

1шт.

10

L33448

CAP

BODY - check valve

1шт.

11

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- large

1шт.

12

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- medium

1шт.

13

A41346

RING

- backup, seal

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- small

1шт.

15

G32626

RING

- backup, seal

2шт.

16

D48818

SPRING

- check poppet

1шт.

17

L32622

VALVE POPPET

POPPET - check

1шт.

18

L32631

VALVE

SEAT - check poppet

1шт.

L33429

VALVE

- secondary relief, Includes: Ref. 1 - 18

1шт.

1

41-14

PLUG

- expansion

1шт.

2

L33449

PLUG

- end cap

1шт.

3

L33450

GUIDE

- spring

1шт.

4

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- large

1шт.

5

D40356

O-RING

- small

1шт.

6

D40357

RING

- backup, seal

1шт.

7

D37148

SPRING

- plunger

1шт.

8

D37074

PLUNGER

- relief

1шт.

9

D37075

SEAT

- plunger

1шт.

10

L33448

CAP

BODY - check valve

1шт.

11

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- large

1шт.

12

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- medium

1шт.

13

A41346

RING

- backup, seal

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- small

1шт.

15

G32626

RING

- backup, seal

2шт.

16

D48818

SPRING

- check poppet

1шт.

17

L32622

VALVE POPPET

POPPET - check

1шт.

18

L32631

VALVE

SEAT - check poppet

1шт.
