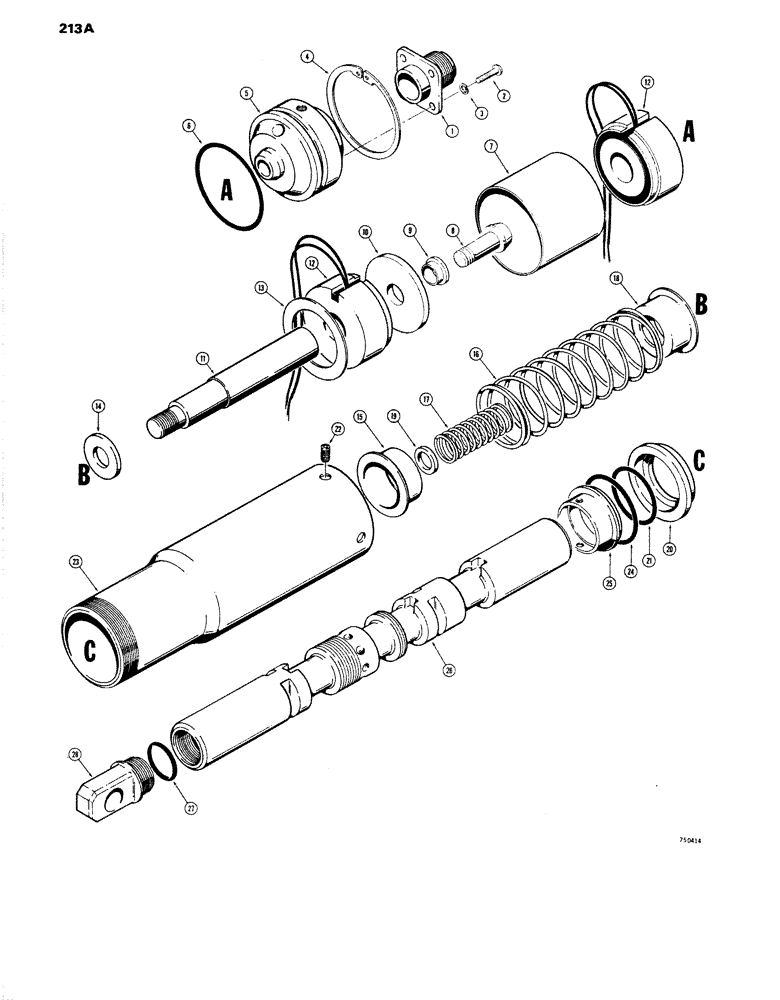

Запчасти Case W14 (213A) - D71227 AND D71229 LIFT SPOOLS (08) - HYDRAULICS

D71227

SPOOL

ASSEMBLY - L70429 valve, Includes: Ref. 1 - 28

1шт.

D71229

SPOOL

ASSEMBLY - L70430 valve, Includes: Ref. 1 - 28

1шт.

1

R33408

CONNECTOR, ELEC

CONNECTOR - amphenol

1шт.

2

182-4

SCREW

- round head, slotted (#4 - 40 NC x 5/16")

4шт.

3

192-53

LOCK WASHER,#4

WASHER, LOCK, #4

4шт.

4

L33769

SNAP RING,#187, 1.960", Int, Spiral

RING - retaining

1шт.

5

D71230

PLUG

- D71229 spool

1шт.

5

D63372

PLUG

- D71227 spool

1шт.

6

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

SEAL "O"ring, plug

1шт.

7

L33781

SPACER

- coil

1шт.

8

D56450

SCREW

- special

1шт.

9

D65130

SPACER

- magnetic detent

1шт.

10

D65129

WASHER

- special

1шт.

11

D56449

STUD

TUBE - detent spacer

1шт.

12

L33762

COIL

- magnetic

2шт.

13

L33761

WASHER

- special, coil shim

1шт.

14

L33777

WASHER

- retainer, spring

1шт.

15

A16846

CAP

RETAINER - spring

1шт.

16

L33776

SPRING

- centering

1шт.

17

L33775

SPRING

- feeler

1шт.

18

A13164

RETAINER,13.49mm ID x 37.31mm OD

- spring

1шт.

19

L33774

RING

WASHER - retaining

1шт.

20

L32640

RETAINER

- "O"ring, inner

1шт.

21

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

22

178-415

SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt

SCREW - set, hex. socket (#10 - 24 NC x 3/8")

1шт.

23

L33778

HOUSING

- magnetic detent

1шт.

24

L32613

O-RING

SEAL - "O"ring, large

1шт.

25

L33433

RESTRICTOR

RETAINER - "O"ring, outer

1шт.

26

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

28

L32635

EYE

- spool

1шт.
