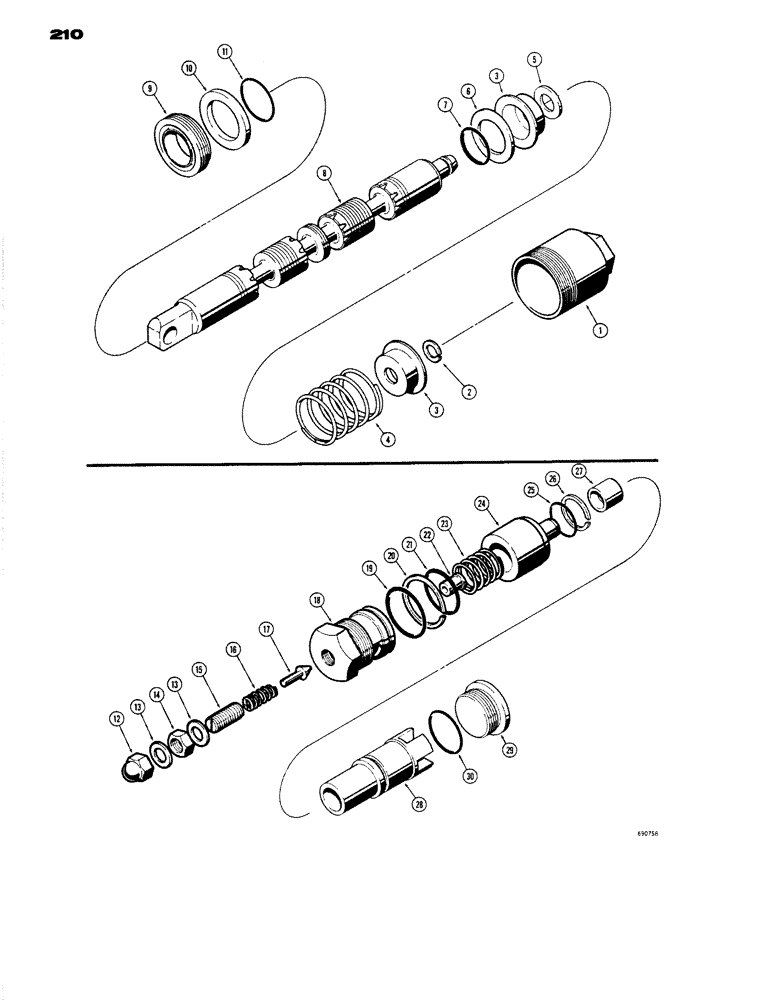

Запчасти Case W14 (210) - LOADER CONTROL VALVE, DROTT CLAM SPOOLS, MAIN RELIEF VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L33751
SPOOL
ASSEMBLY - valve, clam, Includes: Ref. 1 - 8
1шт.
1
N6775
COVER
- spool end (replaces A13166 )
1шт.
2
A27020
RING
- retaining, at spool end
1шт.
3
A13164
RETAINER,13.49mm ID x 37.31mm OD
SEAT - spring
2шт.
4
A13182
VALVE SPRING
SPRING - spool centering
1шт.
5
W12113
BUSHING
SPACER - spring, seat
1шт.
6
L13184
RETAINER - seal
1шт.
7
A13184
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
SEAL - "O"ring
1шт.
8
NSS
NOT SOLD SEPARAT
SPOOL - valve, clam
1шт.
9
L32608
RETAINER
AND WIPER - spool
1шт.
10
L32604
RETAINER,1.007" ID x 1.672" OD x 0.187"
RETAINER - seal
1шт.
11
A13184
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
SEAL - "O"ring, spool
1шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - main relief, Includes: Ref. 12 - 30
1шт.
12
129-514
CROWN NUT,Low, 5/16" - 24
- acorn (5/16" - 24 NF), main relief valve
1шт.
13
D26270
WASHER, SEALING
WASHER - special, main relief valve
2шт.
14
25-155
JAM NUT,Jam, 5/16"-24, G5
- hex., jam (5/16" - 24 NF), main relief valve
1шт.
15
176-298
SCREW,Sl Hdls, 5/16" - 24 x 1 1/2", Flat Pt
- set, relief valve, main
1шт.
16
D26268
SPRING
- pilot, main relief valve
1шт.
17
D26267
PLUNGER
- relief valve, main
1шт.
18
L32615
CAP
- relief valve, main
1шт.
19
218-5009
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
SEAL - "O"ring, valve cap (Large), main relief valve
1шт.
20
L32619
RING
- backup, valve cap, main relief valve
1шт.
21
A30843
O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro
SEAL - "O"ring, valve cap (Small), main relief valve
1шт.
22
D26266
SEAT
- plunger, main relief valve
1шт.
23
L32617
SPRING
- relief valve, main
1шт.
24
L32620
VALVE POPPET
POPPET - relief valve, main
1шт.
25
A30843
O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro
SEAL - "O"ring, main relief valve
1шт.
26
L32619
RING
- backup, main relief valve
1шт.
27
L32616
SLEEVE
- relief valve, main
1шт.
28
L32618
VALVE
SEAT - relief valve, main
1шт.
29
218-5213
PLUG,Hex Soc, 1 3/16"-12 ORB
end, spool, main relief valve, Includes Ref 30 Hex Soc, 1 3/16"-12 ORB
1шт.
30
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - "O"ring, main relief valve
1шт.
REFERENCE MAIN RELIEF VALVE--VALVE/A -MAIN RELIEF IS PART L32614
1шт.
Выбрано товаров: 33
