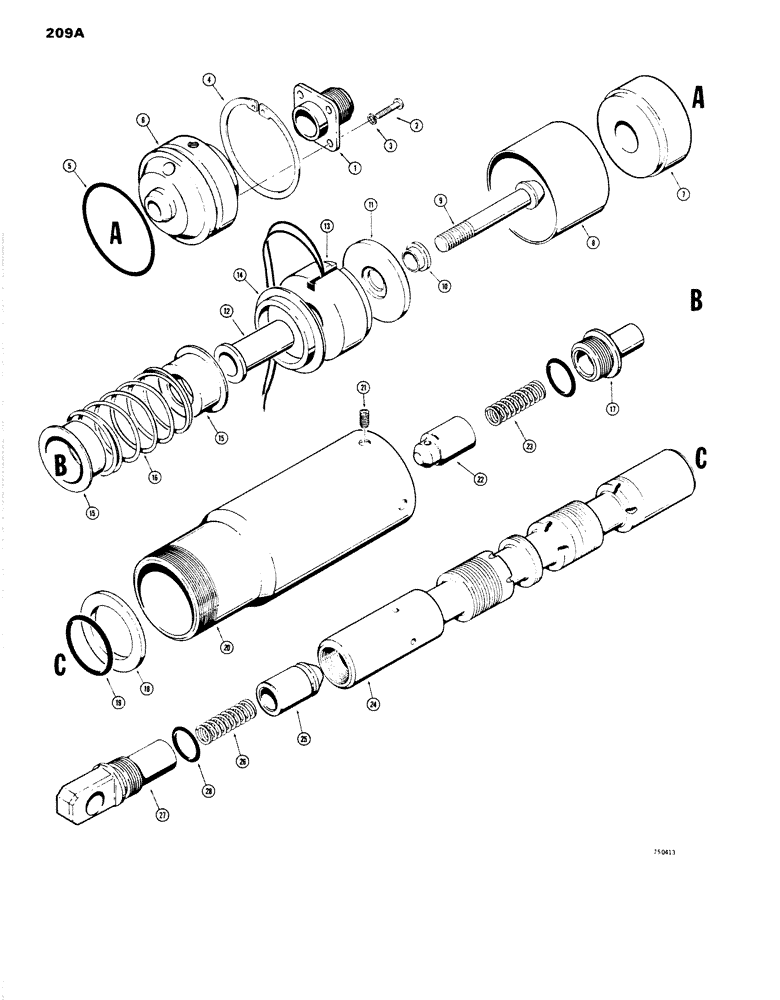

Запчасти Case W14 (209A) - D71228 AND D71231 BUCKET SPOOLS (08) - HYDRAULICS

D71228

SPOOL

ASSEMBLY - L70430 valve, Includes: Ref. 1 - 28

1шт.

D71231

SPOOL

ASSEMBLY - L70429 valve, Includes: Ref. 1 - 28

1шт.

1

L36043

CONNECTOR, ELEC

CONNECTOR - amphenol

1шт.

2

182-4

SCREW

- round head, slotted (#4 - 40 NC x 5/16")

4шт.

3

192-3

LOCK WASHER

- med. sect. lock, #4

4шт.

4

L33769

SNAP RING,#187, 1.960", Int, Spiral

RING - snap

1шт.

5

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

6

D71230

PLUG

- seal access

1шт.

7

L33767

BUSHING

SPACER - dummy coil

1шт.

8

L33766

SPACER

- coil

1шт.

9

L35331

SCREW,3/8" - 16 x 2 1/2", Gr 5

- special

1шт.

10

L33764

SPACER

- magnetic detent

1шт.

11

L35330

WASHER

- special, clapper

1шт.

12

L35329

TUBE

- detent spacer

1шт.

13

L33762

COIL

- magnetic

1шт.

14

L33761

WASHER

- special, coil shim

1шт.

15

A13164

RETAINER,13.49mm ID x 37.31mm OD

- spring

2шт.

16

L33758

VALVE SPRING

SPRING - centering

1шт.

17

L35328

PLUG

- spool end, internal

1шт.

18

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - "O"ring

1шт.

19

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

20

L33759

HOUSING

- magnetic detent

1шт.

21

178-415

SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt

SCREW - set, hex. socket (#10 - 24 NC x 3/8")

1шт.

22

L35326

VALVE POPPET

POPPET - restrictor

1шт.

23

L35327

SPRING

- restrictor

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

25

L35325

SPOOL

POPPET - make up

1шт.

26

L35324

SPRING

- make up

1шт.

27

L35768

EYE

- spool end

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.
