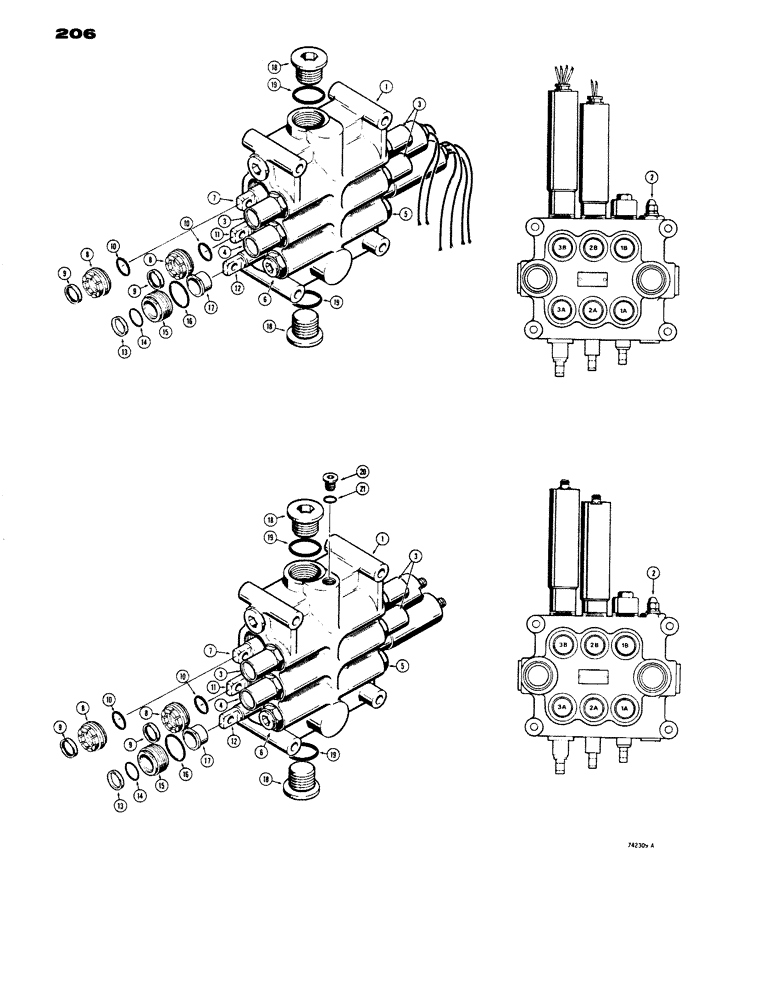

Запчасти Case W14 (206) - L52776 AND L58296 VALVES (3 SPOOL), ALL VALVES HAVE CASE (08) - HYDRAULICS

L52776

VALVE - loader control, 3 spool, Includes: Ref. 1 - 19

1шт.

L58296

VALVE

- loader control, 3 spool

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list Figure 210

1шт.

3

L35319

VALVE

- secondary relief, used in ports 1A, 1B, AND 2B, parts list Figure 214

3шт.

4

L35386

VALVE

secondary relief, used in ports 2A, parts list Figure 214

1шт.

5

L35320

VALVE

- check, used in port 3B, parts list Figure 214

1шт.

6

L35321

VALVE

- check, regeneration, used in port 3A, parts list Figure 214

1шт.

7

L33751

SPOOL

- valve, clam, parts list Figure 210

1шт.

8

L32608

RETAINER

AND WIPER - spool

2шт.

9

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

2шт.

10

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - O-ring, seal

2шт.

11

L35767

SPOOL

- valve, bucket, parts list Figure 208

1шт.

12

L35318

DETENT

SPOOL - valve, lift, parts list Figure 212

1шт.

13

A28211

OIL SEAL

WIPER - spool

1шт.

14

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - O-ring, small

1шт.

15

L32612

RETAINER

- seal

1шт.

16

L32613

O-RING

SEAL - O- ring, large

1шт.

17

L32611

SLEEVE

- spool

1шт.

18

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- pipe, hex. socket head, Includes: Ref. 19

2шт.

19

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - O-ring

1шт.

L70430

VALVE

- loader control, 3 spool, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list Figure 210

1шт.

3

L32633

VALVE

- secondary relief, used in ports 1A, 1B AND 2B, parts list Figure 213C

3шт.

4

L33429

VALVE

- secondary relief, used in ports 2A, parts list Figure 213C

1шт.

5

L35320

VALVE

- check, used in port 3B, parts list Figure 214

1шт.

6

L35321

VALVE

- check, regeneration, used in port 3A parts list Figure 214

1шт.

7

L33751

SPOOL

- valve, clam, parts list Figure 210

1шт.

8

L32608

RETAINER

AND WIPER - spool

2шт.

9

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

2шт.

10

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - O- ring, seal

2шт.

11

D71228

SPOOL

- valve, bucket, parts list Figure 209A

1шт.

12

D71229

SPOOL

- valve, lift, parts list Figure 213A

1шт.

13

A28211

OIL SEAL

WIPER - spool

1шт.

14

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - O-ring, small

1шт.

15

L32612

RETAINER

- seal

1шт.

16

L32613

O-RING

SEAL - O-ring, large

1шт.

17

L32611

SLEEVE

- spool

1шт.

18

218

PLUG - pipe, hex. socket head, Includes: Ref. 19

2шт.

19

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - O-ring

1шт.

20

86625138

PLUG,7/18" - 14

Pipe, Includes Ref. 21 Hex Soc, 7/8"-14 ORB

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-ring

1шт.
