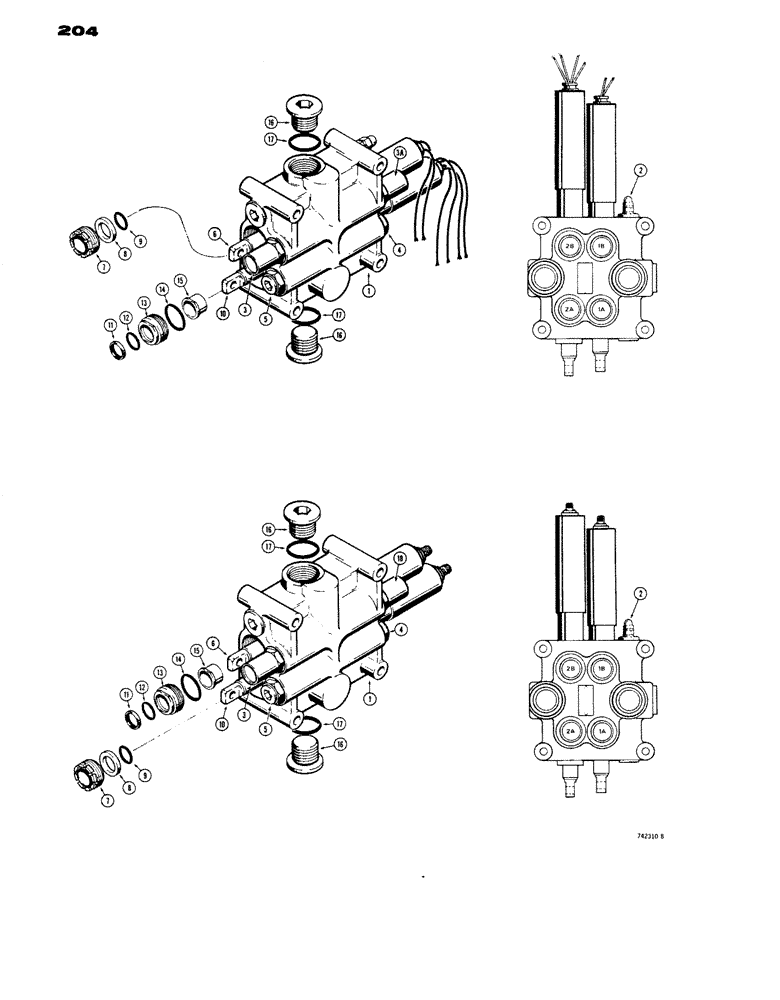

Запчасти Case W14 (204) - L51920 AND L58295 VALVES (2 SPOOL), ALL VALVES HAVE CASE (08) - HYDRAULICS

L51920

LOCK VALVE

VALVE - loader control, 2 spool, Includes: Ref. 1 - 17

1шт.

L58295

VALVE

- loader control, 2 spool, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list Figure 210

1шт.

3

L35386

VALVE

- secondary relief, used at port 1A Parts list Figure 214

2шт.

3a

L35319

VALVE

- secondary relief, used at port 1B, parts list Figure 214

1шт.

4

L35320

VALVE

- check, used at port 2B, parts list Figure 214

1шт.

5

L35321

VALVE

- check, regeneration, used at port 2A, parts list Figure 214

1шт.

6

L35767

SPOOL

- valve, bucket, parts list Figure 208

1шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - O-ring, special

1шт.

10

L35318

DETENT

SPOOL - valve, lift, parts list Figure 212

1шт.

11

A28211

OIL SEAL

WIPER - spool

1шт.

12

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - O-ring, small

1шт.

13

L32612

RETAINER

- seal

1шт.

14

L32613

O-RING

SEAL - O-ring, large

1шт.

15

L32611

SLEEVE

- spool

1шт.

16

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- pipe, hex. socket head, Includes: Ref. 17

2шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - O-ring

1шт.

L70429

VALVE

- loader control, 2 spool, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list Figure 210

1шт.

3

L35386

VALVE

- secondary relief, port 1A, oparts list Figure 214

1шт.

4

L35320

VALVE

- check, used at port 2B, parts likst Figure 214

1шт.

5

L35321

VALVE

- check, regeneration, used at port 2A, parts list Figure 214

1шт.

6

D71231

SPOOL

- valve, bucket, parts list Figure 209A

1шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - O-ring, special

1шт.

10

D71227

SPOOL

- valve, lift, parts list Figure 213A

1шт.

11

A28211

OIL SEAL

WIPER - spool

1шт.

12

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - O-ring, small

1шт.

13

L32612

RETAINER

- seal

1шт.

14

L32613

O-RING

SEAL - O-ring, large

1шт.

15

L32611

SLEEVE

- spool

1шт.

16

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- pipe, hex. socket head, Includes: Ref. 17

2шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - O-ring

1шт.

18

L35319

VALVE

- secondary relief port 1B, parts list Figure 214

1шт.
