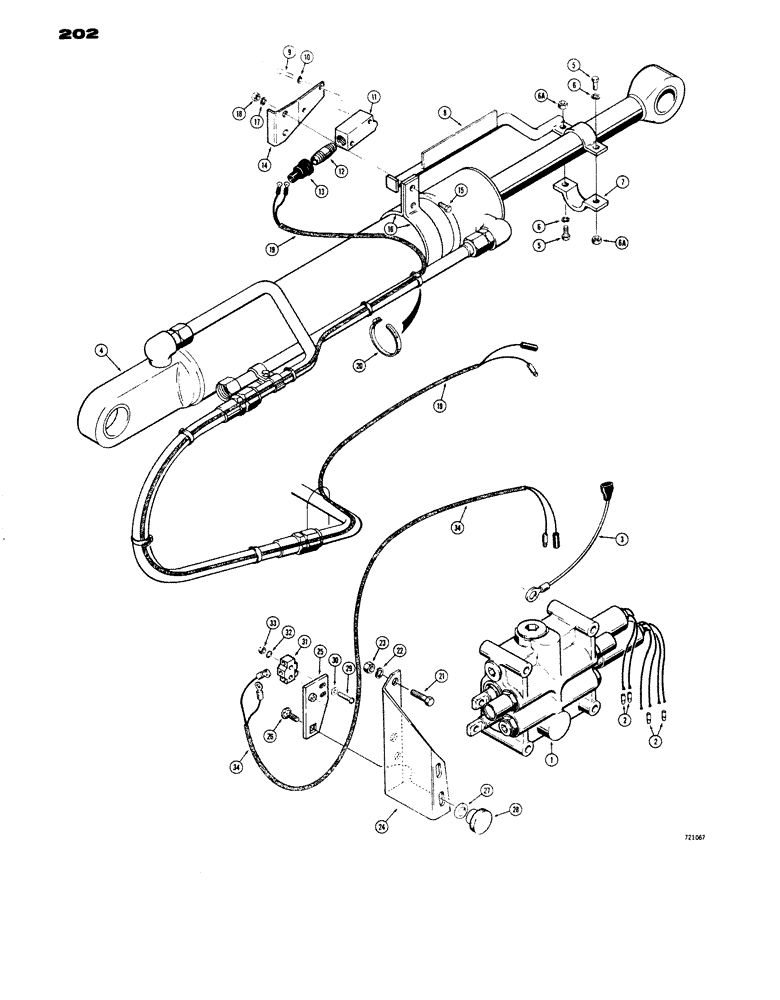

Запчасти Case W14 (202) - LOADER POSITIONING CONTROLS, LOADER BUCKET RETURN TO DIG (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - loader control (See Figures 198 and 200 for proper valve)

1шт.

2

R18653

TERMINAL STRIP

CONNECTOR - wire, male bullet (If used)

4шт.

3

L50380

ELECTRICAL WIRE

WIRE Ground, solenoid

1шт.

4

REF

INSTRUCTION

CYLINDER - RH bucket (Parts list Figures 192 and 193A), loader bucket, Serial Range: return-dig

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Loader bucket return-to-dig

2шт.

6

92-6

LOCK WASHER,3/8"

Loader bucket return to dig

2шт.

6a

25-106

NUT,3/8"-16, G5

Loader bucket return to dig

2шт.

7

L51822

CLAMP

Indicator retaining, loader bucket, Serial Range: return-dig

1шт.

8

L55077

INDICATOR

Return-to-dig, loader bucket

1шт.

9

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

Machine, loader bucket return to dig

2шт.

10

193-6

LOCK WASHER,Ext Tooth, #10

Loader bucket return-to-dig

2шт.

11

L43856

SWITCH

ASSY - control, return to dig (At actuator rod) loader bucket return to dig, Incl. Ref. 11A - 11E

1шт.

11a

NSS

NOT SOLD SEPARAT

HOUSING - switch (Not illustrated), loader bucket, Serial Range: return-dig

1шт.

L33933

KIT

Repair, total switch (Not illustrated), loader bucket return to dig, Incl. Ref. 11B - 11E

1шт.

11b

L30628

LEVER

ASSY - switch (Not illustrated), loader bucket, Serial Range: return-dig

1шт.

11c

L33935

SPARE PART Access, switch module (Not illustrated), loader bucket, Serial Range: return-dig

1шт.

11d

L33934

SPARE PART Cover (Not illustrated), loader bucket, Serial Range: return-dig

1шт.

11e

L30627

SPARE PART SWITCH - module, return to dig (Not illustrated), loader bucket, Serial Range: return-dig

1шт.

12

221-1185

FITTING

NIPPLE - pipe (1/2" NPT), loader bucket, Serial Range: return-dig

1шт.

13

G46803

BOOT

Switch protection, loader bucket, Serial Range: return-dig

1шт.

14

L48624

BRACKET

Switch mounting (Standard bucket), loader bucket, Serial Range: return-dig

1шт.

14

L51559

BRACKET

Switch mounting (Drott bucket), loader bucket, Serial Range: return-dig

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Loader bucket return-to-dig

3шт.

16

L51825

CLAMP

SPARE PART Switch bracket mounting, loader bucket, Serial Range: return-dig

4шт.

17

92-6

LOCK WASHER,3/8"

Loader bucket return to dig

3шт.

18

25-106

NUT,3/8"-16, G5

Loader bucket return to dig

3шт.

19

L50381

HARNESS

Return-to-dig wiring, loader bucket, Serial Range: return-dig

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Harness retaining, nylon, loader bucket, Serial Range: return-dig

6шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 15 NC x 1-1/2", loader bucket height control

2шт.

22

92-6

LOCK WASHER,3/8"

Loader bucket height control

2шт.

23

25-106

NUT,3/8"-16, G5

Loader bucket height control

2шт.

24

L53289

SUPPORT

SPARE PART Switch mounting bracket, loader bucket height control

1шт.

25

L57566

SUPPORT

Switch mounting, loader bucket height control

1шт.

26

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

(If used), loader bucket height control

1шт.

26

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

(If used), Loader bucket height control

1шт.

27

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - standard wrot (5/16"), loader bucket height control

1шт.

28

A42918

KNOB

Height control, loader bucket

1шт.

29

182-52

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

Machine, loader bucket height control

2шт.

30

195-10

WASHER,#8

Loader bucket height control

2шт.

31

L54683

SWITCH

Loader bucket height control

1шт.

32

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

Loader bucket height control

2шт.

33

129-15

NUT,#6-32

Loader bucket height control

2шт.

34

L50382

HARNESS

Bucket height control, Models without instrument cluster, loader bucket height control

1шт.

34

L57525

HARNESS

Bucket height control, Models with instrument cluster, loader bucket height control

1шт.

THERE IS NOW A 1 PIECE HARNESS USED WITH HYDRECO VALVES,PART IS L100447

1шт.
