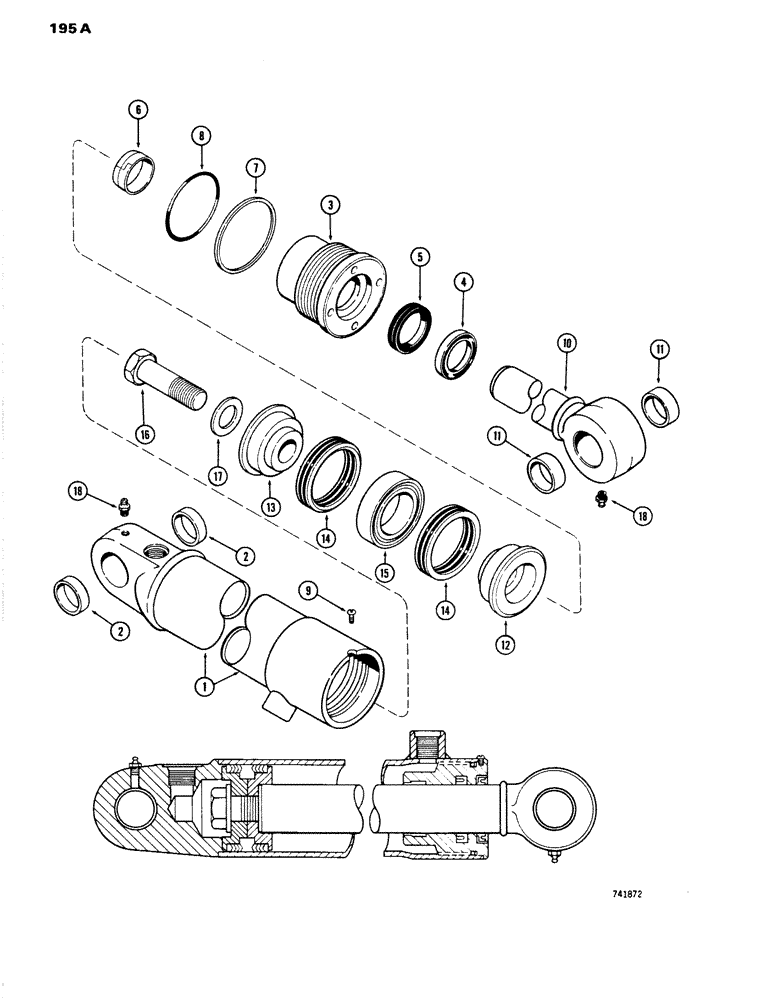

Запчасти Case W14 (195A) - G33770 & G33771 CLAM CYLINDERS, GLAND HAS IDENTIFICATION (08) - HYDRAULICS

G33770

HYDRAULIC CYLINDER

CYLINDER - clam, R.H. (3" dia. x 10-1/2" stroke), Includes: Ref. 1 - 18

1шт.

G33771

CYLINDER BLOCK

CYLINDER - clam, L.H. (3" dia. x 10-1/2" stroke), Includes: Ref. 1 - 18

1шт.

1

D46911

CYLINDER

TUBE ASSEMBLY - cylinder, R.H., Includes: Ref. 2

1шт.

1

D46910

TUBE

ASSEMBLY - cylinder body, L.H., Includes: Ref. 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

G33485

GLAND

ASSEMBLY, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2" x 2" x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32292

1шт.

5

D36969

CUP

SEAL - piston rod (1-1/2" x 2" x 7/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32292

1шт.

6

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of Cylinder Repair Seal Kit P/N G32292

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O"ring backup

1шт.

Part of Cylinder Repair Seal Kit P/N G32292

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O"RING - gland (3" x 3-1/4" x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G32292

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

10

G33467

ROD

ASSEMBLY - piston (1-1/2" dia.), Includes: Ref. 11

1шт.

11

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

12

G33150

PISTON

- split (rod end)

1шт.

13

D28366

PISTON

- split (bolt end)

1шт.

G33151

PACKING

ASSEMBLY - piston, Includes: Ref. 14 and 15

1шт.

Part of Cylinder Repair Seal Kit P/N G32292

1шт.

14

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - "V" type

2шт.

15

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4" x 2-1/2" N.F. hex.)

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8" x 1-3/8" x 1/8")

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" NPT straight)

1шт.

G32292

KIT

SEAL KIT - cylinder repair, Includes: Ref. 4, 5, 6, 7, 8 and P/N G33151

1шт.
