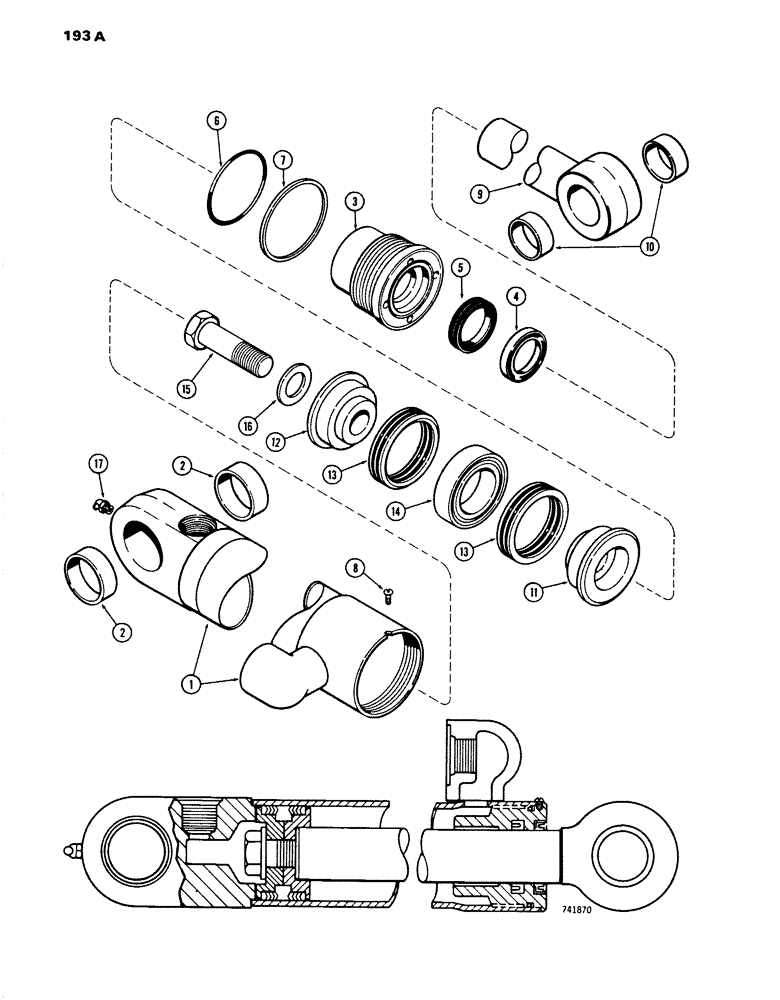

Запчасти Case W14 (193A) - G33852 AND G33853 LOADER BUCKET CYLINDERS, GLAND HAS IDENTIFICATION RING (08) - HYDRAULICS

G33852

CYLINDER

- bucket, R.H. (3" dia. x 30-1/2" stroke), Includes: Ref. 1 - 17

1шт.

G33853

CYLINDER

- bucket, L.H. (3" dia. x 30-1/2" stroke), Includes: Ref. 1 - 17

1шт.

1

G33854

TUBE,40.59" L

ASSEMBLY - cylinder body, R.H., Includes: Ref. 2

1шт.

1

G33855

TUBE

ASSEMBLY - cylinder bodh, L.H., Includes: Ref. 2

1шт.

2

G33858

BUSHING,44.68mm ID x 53.98mm OD x 15.88mm L

- tube

2шт.

G33570

GLAND

ASSEMBLY, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND AND BUSHING

1шт.

4

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4" x 2-1/4" x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G33572

1шт.

5

D36970

CUP

SEAL - piston rod (1-3/4" x 2-1/4" x 7/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G33572

1шт.

6

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O"RING - gland (3" x 3-1/4" x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G33572

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O"ring backup

1шт.

Part of Cylinder Repair Seal Kit P/N G33572

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

9

G33860

ROD

ASSEMBLY - piston (1-3/4" dia.), Includes: Ref. 10

1шт.

10

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

11

G33331

PISTON

- split (rod end)

1шт.

12

D28896

PISTON

- split (bolt end)

1шт.

*

G33151

PACKING

ASSEMBLY - piston, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - "V" type

2шт.

14

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

15

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

16

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8" x 1-7/8" x 1/8")

1шт.

17

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" NPT, 45 degree)

1шт.

G33572

SEAL

KIT - cylinder repair, Includes: Ref. 4, 5, 6 and 7

1шт.
