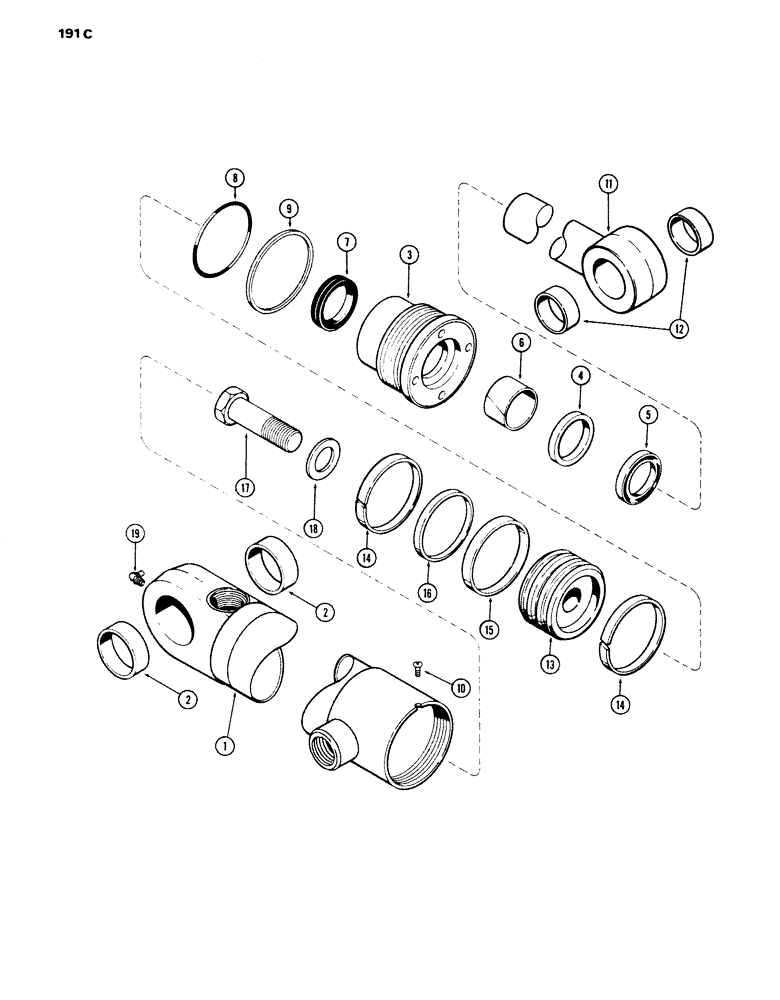

Запчасти Case W14 (191C) - G101278 AND G101279 BUCKET TILT CYLINDERS, GLAND IS STAMPED W/ CYL. PART NUMBER (08) - HYDRAULICS

G101278

CYLINDER ASSY.

CYLINDER - R.H., tilt, 3" dia. x 32-1/2" stroke (76 mm x 775 mm), Includes: Ref. 1 - 19

1шт.

G101279

CYLINDER ASSY.

CYLINDER - L.H., tilt, 3" dia x 30-1/2" stroke (76 mm x 775 mm), Includes: Ref. 1 - 19

1шт.

1

G101712

TUBE,1029.45 mm L

- G101278 cylinder, Includes: Ref. 2

1шт.

1

G101713

TUBE,1029.45 mm L

- G101279 cylinder, Includes: Ref. 2

1шт.

2

G33858

BUSHING,44.68mm ID x 53.98mm OD x 15.88mm L

- tube

2шт.

G34633

GLAND

ASSEMBLY, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

G34600

RING

- center bearing

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G102405

1шт.

6

PG34621

WASHER

BEARING - center

1шт.

Part of Seal Kit P/N G102405

1шт.

7

D36970

CUP

SEAL - piston rod

1шт.

Part of Seal Kit P/N G102405

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G102405

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G102405

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4"

1шт.

11

G33860

ROD

ASSEMBLY - piston, 1-3/4" dia. (44 mm), Includes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

13

G100704

PISTON

- one piece

1шт.

14

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of Seal Kit P/N G102405

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup

1шт.

Part of Seal Kit P/N G102405

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit P/N G102405

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G102405

SEAL

KIT - seal, Replaces: G102401, Includes: Ref. 5, 6, 7, 8, 9, 14, 15 and 16

1шт.

KIT G102401 SHOULD READ G102405

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - extreme heat or cold

1шт.
