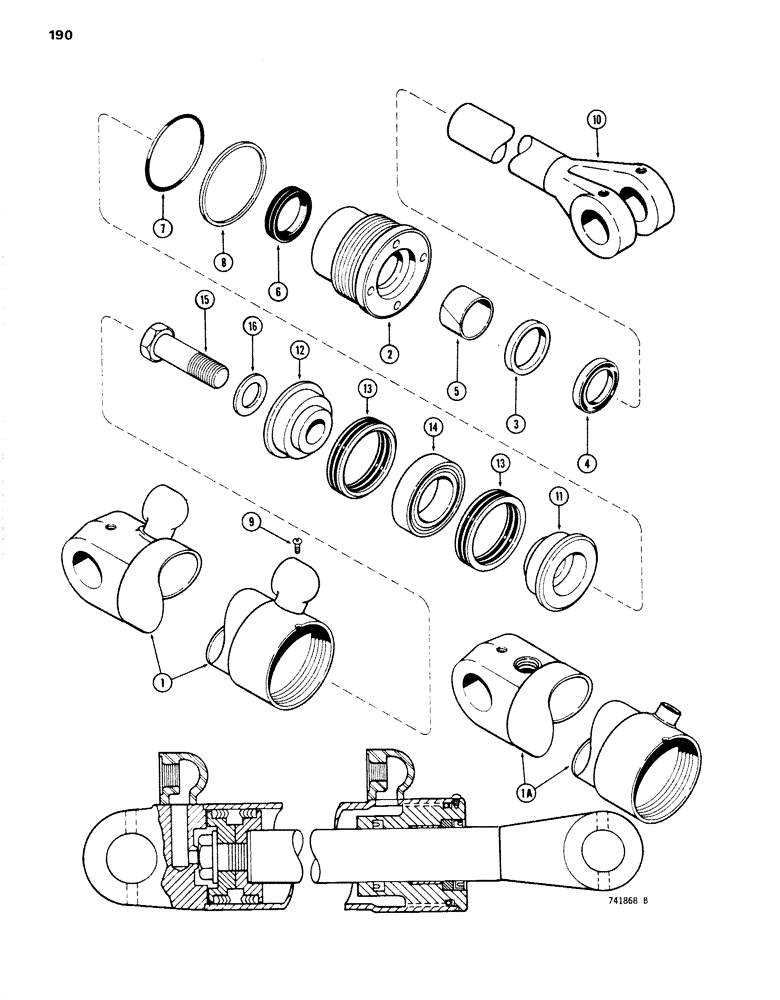

Запчасти Case W14 (190) - G101720 & G101721 LOADER LIFT CYL., G33864 & G33865 LOADER LIFT CYL., GLAND IS STAMPED W/ CYL. P/N (08) - HYDRAULICS

G33864

LIFT CYLINDER

CYLINDER - lift, R.H., 4-1/2" dia. x 25-3/8" stroke, Includes: Ref. 1

1шт.

G33865

CYLINDER

- lift, L.H., 4-1/2" dia. x 25-3/8" stroke, Includes: Ref. 1

1шт.

1

G33866

TUBE

- G33864 cylinder

1шт.

1

G33867

TUBE ASSY.

TUBE - G33865 cylinder

1шт.

G101720

CYLINDER

- lift, R.H., 4-1/2" dia. x 25-3/8" stroke, Includes: Ref. 1A - 16

1шт.

G101721

CYLINDER

- lift, L.H., 4-1/2" dia. x 25-3/8" stroke, Includes: Ref. 1A - 16

1шт.

1a

G101722

TUBE

- G101720 cylinder

1шт.

1a

G101723

TUBE

- G101721 cylinder

1шт.

G34632

GLAND

ASSEMBLY, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND

1шт.

3

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

4

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer, 2-1/4" x 5/16"

1шт.

Part of Cylinder Repair Seal Kit P/N G34628

1шт.

5

G34620

BUSHING

BEARING - center

1шт.

Part of Cylinder Repair Seal Kit P/N G34628

1шт.

6

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- piston rod, 2-1/2" x 2-3/4" x 7/16"

1шт.

Part of Cylinder Repair Seal Kit P/N G34628

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland, 4-1/2" x 4-3/4" x 1/8"

1шт.

Part of Cylinder Repair Seal Kit P/N G34628

1шт.

8

G32284

BACK-UP RING

- gland, O-ring, backup

1шт.

Part of Cylinder Repair Seal Kit P/N G34628

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock, No. 8 - 32 x 1/4" self tapping

1шт.

10

G33870

ROD

- piston, 2-1/4" dia.

1шт.

11

D46425

PISTON

- split, rod end

1шт.

12

D46931

PISTON

- split, bolt end

1шт.

13

D47205

PACKING

ASSEMBLY - piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit P/N G34628

1шт.

14

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

15

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

Piston Hex, 1 1/4"-12 x 3", G8

1шт.

16

G32351

WASHER

- pistol bolt, 1-3/8" x 2-1/2" x 1/8"

1шт.

G34628

SEAL

KIT - cylinder repair, Includes: Ref. 4, 5, 6, 7, 8 and 13

1шт.
