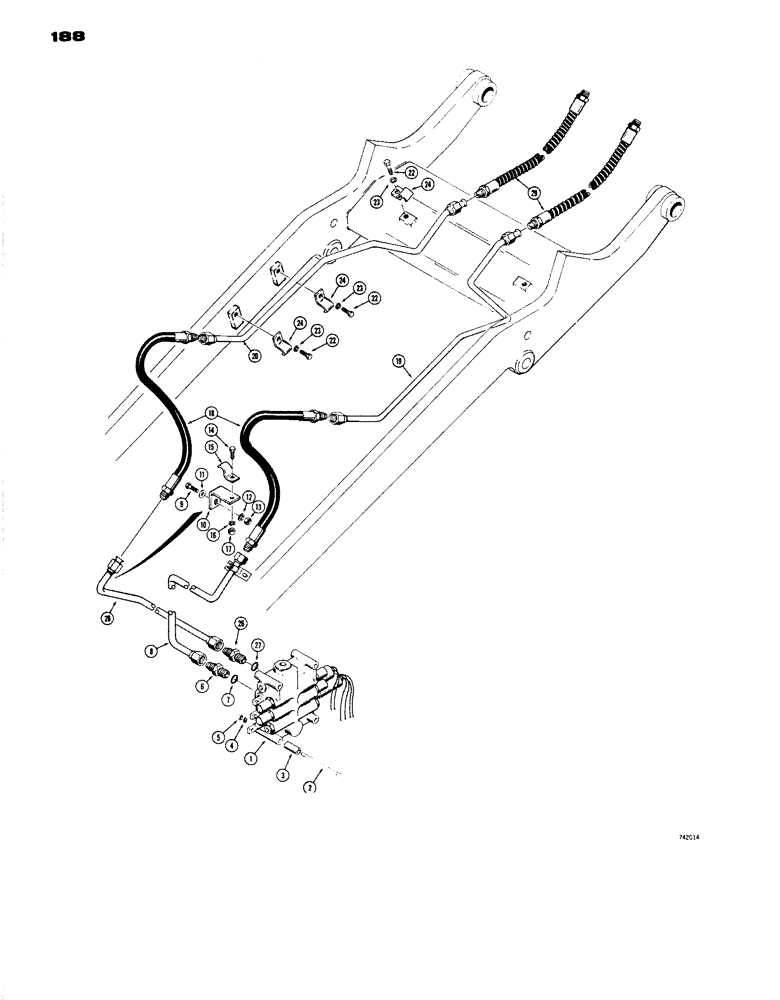

Запчасти Case W14 (188) - 4-IN-1 BUCKET HYDRAULICS (08) - HYDRAULICS

1

13-8124

BOLT,Hex, 1/2" - 13 x 7-3/4", Gr 5

3шт.

2

L72103

SPARE PART Valve

3шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, 3 spool, see Figure 200 for proper valve

1шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

Hex

3шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 7

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

8

L52664

TUBE,0.75" OD

Valve to closed end of clam cylinder at valve

1шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Bracket to chassis

2шт.

10

L48838

BRACKET

Clamp mounting

2шт.

11

95-6

WASHER,3/8"

Standard wrot

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

2шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to clamp

2шт.

15

L25930

CLAMP

Tube

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

2шт.

18

L50653

HOSE

Valve to clam cylinder, 36-1/2" long

2шт.

19

L52660

TUBE,0.75" OD

Valve to clam cylinder, at lift frame, RH

1шт.

20

L52662

TUBE,0.75" OD

Valve to clam cylinder, at lift frame, LH

1шт.

21

RESERVED

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

23

92-6

LOCK WASHER,3/8"

6шт.

24

L25930

CLAMP

Tube

6шт.

25

RESERVED

1шт.

26

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 27

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

28

L52666

TUBE

Crossover, valve to closed end of clam cylinder, at valve

1шт.

29

L52672

HOSE

Valve to clamp cylinder at bucket, 48" long, when stock is exhausted, order L54592 hose for service

2шт.

29

L54592

HOSE,0.50" ID x 50.00"

Valve to clam cylinder at bucket, 50" long

2шт.

30

REF

INSTRUCTION

BUCKET ASSEMBLY - Drott, 1-1/2" cu. yd., machinery item, not illustrated, parts list Figure 178

1шт.
