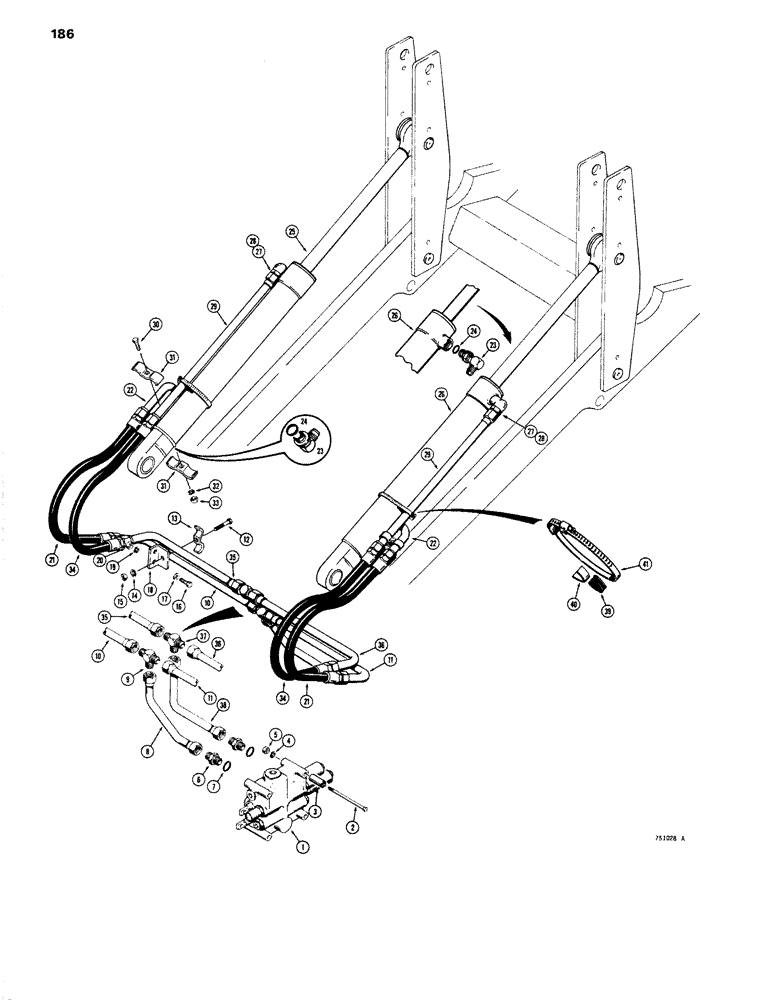

Запчасти Case W14 (186) - LOADER BUCKET CYLINDER HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control, see Figures 204 and 206 for proper valve

1шт.

2

13-8124

BOLT,Hex, 1/2" - 13 x 7-3/4", Gr 5

Valve mounting

3шт.

3

L72103

SPARE PART Valve

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

9635082

NUT,5/16" - 18, Gr 5

NUT - hex, 1/2" - 13 NC

3шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Seal

1шт.

8

L50881

TUBE,0.75" OD

SPARE PART Valve to closed end of bucket cylinder, at valve

1шт.

9

218-596

TEE,1 1/16"-12 37 Degree

Hydraulic, male, tubing uninon

1шт.

10

L50854

TUBE,0.75" OD x 19.5, 4" L

Tee to LH bucket cylinder, closed end

1шт.

11

L50875

TUBE,0.75" OD x 25.5, 4" L

Tee to RH bucket cylinder, closed end

1шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

R15257

CLAMP

Tube

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

2шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

17

95-6

WASHER,3/8"

4шт.

18

L47468

BRACKET

Tube clamping

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

4шт.

21

L50653

HOSE

Valve to bucket cylinder, closed end, 36-1/2"long

2шт.

22

L51166

TUBE,0.75" OD

Valve to closed end of bucket cylinder, at cylinder

2шт.

23

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Incl. Ref. 24

2-4шт.

24

218-508

SPARE PART Seal

1шт.

25

REF

INSTRUCTION

CYLINDER - LH, see Figures 191A and 193A

1шт.

26

REF

INSTRUCTION

CYLINDER - RH, see Figures 191A and 193A

1шт.

27

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, straight, if used, Incl. Ref. 38

2шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

29

L51154

TUBE ASSY.

Valve to rod end of bucket cylinder, at cylinder

2шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

31

R15257

CLAMP

Tube

4шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

25-106

NUT,3/8"-16, G5

2шт.

34

L50653

HOSE

Valve to bucket cylinder, rod end, 36-1/2"long

2шт.

35

L50877

TUBE,0.75" OD x 15.5, 4" L

Tee to LH bucket cylinder, rod end

1шт.

36

L50875

TUBE,0.75" OD x 25.5, 4" L

Tee to RH bucket cylinder, rod end

1шт.

37

218-596

TEE,1 1/16"-12 37 Degree

Hydraulic, male, tubing union

1шт.

38

L50847

TUBE,0.75" OD x 19.6, 12.6" L

Valve to rod end of bucket cylinder

1шт.
