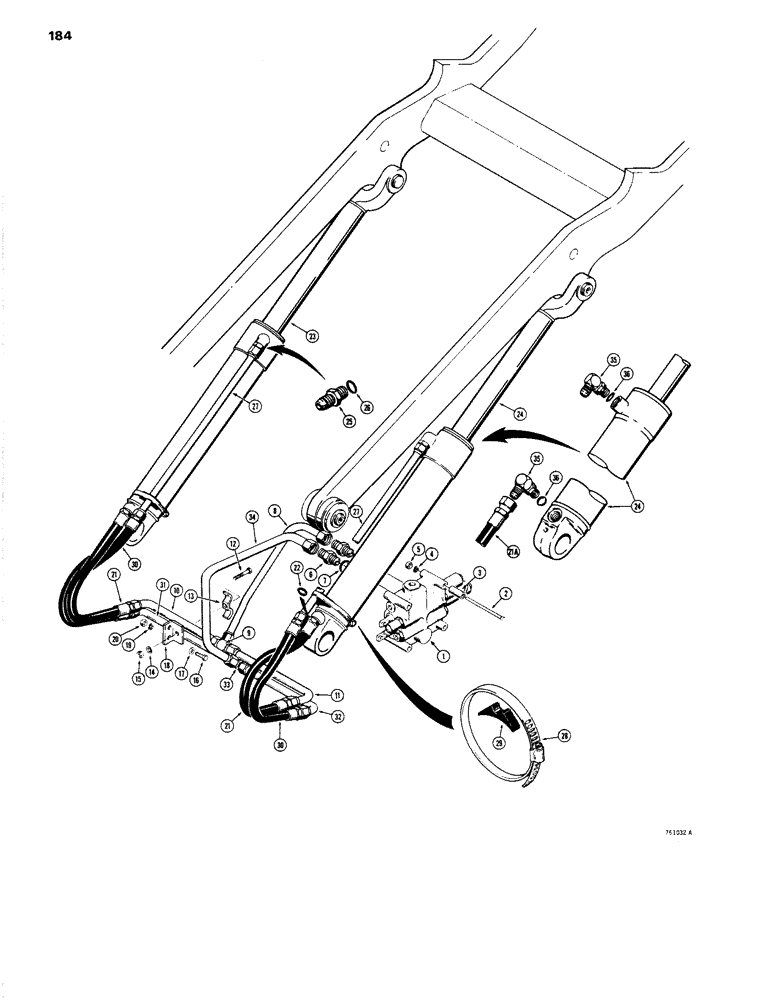

Запчасти Case W14 (184) - LOADER LIFT CYLINDER HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control, see Figures 204 and 206 for proper valve

1шт.

2

13-8124

BOLT,Hex, 1/2" - 13 x 7-3/4", Gr 5

Valve mounting

3шт.

3

L72103

SPARE PART Valve

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

Hex

3шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Seal

1шт.

8

L53203

TUBE,0.75" OD

Valve to closed end of lift cylinder, at valve

1шт.

9

218-596

TEE,1 1/16"-12 37 Degree

Hydraulic, male, tubing union

1шт.

10

L50854

TUBE,0.75" OD x 19.5, 4" L

Tee to LH lift cylinder, closed end

1шт.

11

L50854

TUBE,0.75" OD x 19.5, 4" L

Tee to RH lift cylinder, closed end

1шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

R15257

CLAMP

Tube

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

2шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

17

95-6

WASHER,3/8"

4шт.

18

L47468

BRACKET

Tube clamping

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

4шт.

21

L50653

HOSE

Valve to closed end of lift cylinder, at cylinder 36-1/2" long

2шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Closed end of cylinder

2шт.

23

REF

INSTRUCTION

CYLINDER - hydraulic, LH loader lift, parts list Figure 190

1шт.

24

REF

INSTRUCTION

CYLINDER - hydraulic, RH loader lift, parts list Figure 190

1шт.

25

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, if used, Incl. Ref. 26

2шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

27

L51154

TUBE ASSY.

Valve to rod end of lift cylinder at cylinder

2шт.

28

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

Tube to cylinder

2шт.

29

D46440

SADDLE

Tube clamp

2шт.

30

L50653

HOSE

Valve to rod end of lift cylinder, at cylinder, 36-1/2" long

2шт.

31

L50877

TUBE,0.75" OD x 15.5, 4" L

Tee to LH lift cylinder, rod end

1шт.

32

L50854

TUBE,0.75" OD x 19.5, 4" L

Tee to RH lift cylinder, rod end

1шт.

33

218-596

TEE,1 1/16"-12 37 Degree

Hydraulic, male, tubing union

1шт.

34

L50879

TUBE,0.75" OD x 20.3, 9.6" L

Valve to rod end of lift cylinder, at valve

1шт.

35

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, if used

4шт.

36

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

REFERENCE THE ILLUSTRATION FIGURE REF. 21A SHOULD BE REF. 37 PART NUMBER IS L78010 AND IS 36" LONG.

1шт.
