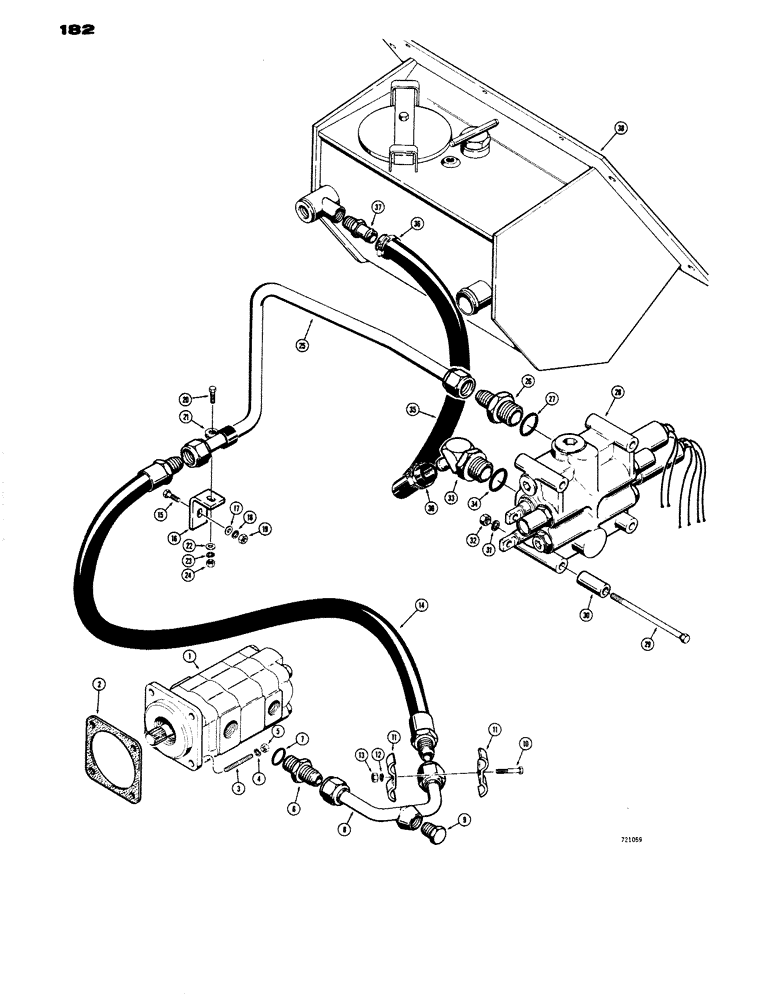

Запчасти Case W14 (182) - LOADER PRESSURE AND RETURN LINE HYDRAULICS (08) - HYDRAULICS

1

L50673

PUMP

Hydraulic (Parts list Figure 196)

1шт.

2

A12304

GASKET,0.4mm Thk

, Serial Range: Pump-transmission

1шт.

3

A27182

STUD

Special

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

Hex

4шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Male, Incl. Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

8

L53113

TUBE,3" L

Hydraulic, at pump

1шт.

9

L221-655

PLUG - hex. head pipe (3/4" NPT)

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

11

R15257

CLAMP

Tube

2шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

25-106

NUT,3/8"-16, G5

1шт.

14

L50857

HOSE

Hydraulic (37" long)

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

16

L48388

BRACKET

Tube clamp

1шт.

17

95-6

WASHER,3/8"

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

25-106

NUT,3/8"-16, G5

2шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

21

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

Tube

1шт.

22

95-6

WASHER,3/8"

1шт.

23

92-6

LOCK WASHER,3/8"

1шт.

24

25-106

NUT,3/8"-16, G5

1шт.

25

L50849

TUBE ASSY.,1" OD

Hydraulic, at valve (Two spool)

1шт.

25

L53119

TUBE,1" OD

Hydraulic, at valve (Three spool)

1шт.

26

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

Male, Incl. Ref. 27

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

28

REF

INSTRUCTION

VALVE - hydraulic, control (Parts list Figures 204 and 206)

1шт.

29

13-8124

BOLT,Hex, 1/2" - 13 x 7-3/4", Gr 5

3шт.

29

L72103

SPARE PART Valve

3шт.

30

L72103

SPARE PART Valve

3шт.

31

92-8

LOCK WASHER,1/2"

3шт.

32

25-108

NUT,1/2"-13, G5

Hex

3шт.

33

217-322

FITTING,45 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

Connector, hose barb, Incl Ref. 34

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

35

L48894

HOSE

Hydraulic, low pressure (1" I.D. x 17" long)

1шт.

36

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

37

217-156

FITTING,1" Hose Barb x 1" Male NPTF

CONNECTOR - straight, hose barb

1шт.

38

REF

INSTRUCTION

TANK - hydraulic reservoir (Parts list Figure 154)

1шт.
