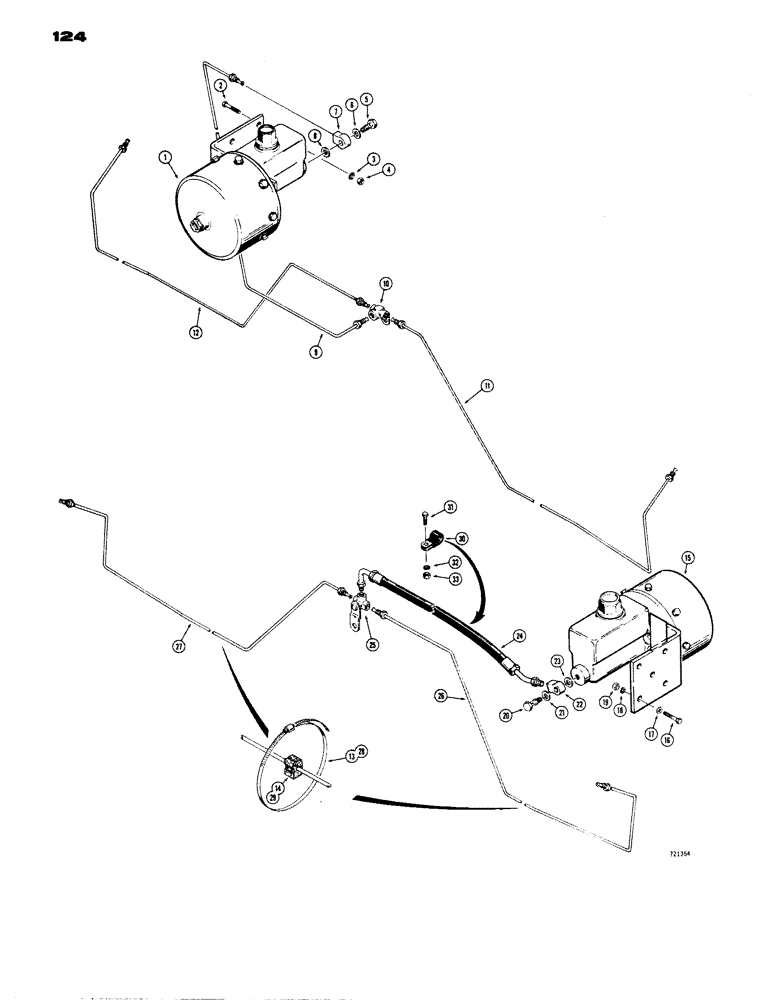

Запчасти Case W14 (124) - BRAKE SYSTEM (BRAKE MASTER CYLINDERS TO WHEEL CYLINDERS) (07) - BRAKES

1

L50885

CLUSTER

MASTER CYLINDER - brake, front axle (Parts list Figure 130)

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Master cylinder mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

5

A12864

BOLT

- special, tube fitting

1шт.

6

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer

1шт.

7

A18531

FITTING

- brake, Serial Range: cylinder-tube

1шт.

8

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting, inner

1шт.

9

L51189

TUBE,0.25" OD

- front brakes, master cylinder to tee

1шт.

10

L52637

TEE

- front brake system

1шт.

11

L51184

TUBE,0.25" OD

- tee to R.H. wheel cylinder, front

1шт.

12

L51186

TUBE,0.25" OD

- tee to L.H. wheel cylinder, front

1шт.

13

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - brake tube

4шт.

14

L51239

SUPPORT ASSY.

SUPPORT - rubber, brake tube

4шт.

15

L50885

CLUSTER

MASTER CYLINDER - brake, rear axle (Parts list Figure 130)

1шт.

16

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

HHCS - 3/8" - 16 NC x 1-38" (Master cylinder mounting)

2шт.

17

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

20

A12864

BOLT

- special, tube fitting

1шт.

21

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer

1шт.

22

A18531

FITTING

- brake, Serial Range: cylinder-tube

1шт.

23

NLS

NO LONGER SERVICED

- fitting, inner

1шт.

24

L51779

HOSE ASSY.,6.35mm ID x 546.1mm L

HOSE - rear brakes, master cylinder to tee (21-1/2" long)

1шт.

25

A12452

FITTING

TEE - rear brake system

1шт.

26

L51186

TUBE,0.25" OD

- tee to R.H. wheel cylinder, rear

1шт.

27

L51184

TUBE,0.25" OD

- tee to L.H. wheel cylinder, rear

1шт.

28

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - tube support

4шт.

29

L51239

SUPPORT ASSY.

SUPPORT - rubber, brake tube

4шт.

30

NLS

NO LONGER SERVICED

- hose

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

32

92-6

LOCK WASHER,3/8"

1шт.

33

25-106

NUT,3/8"-16, G5

- hex. (3/8" - NC)

1шт.
