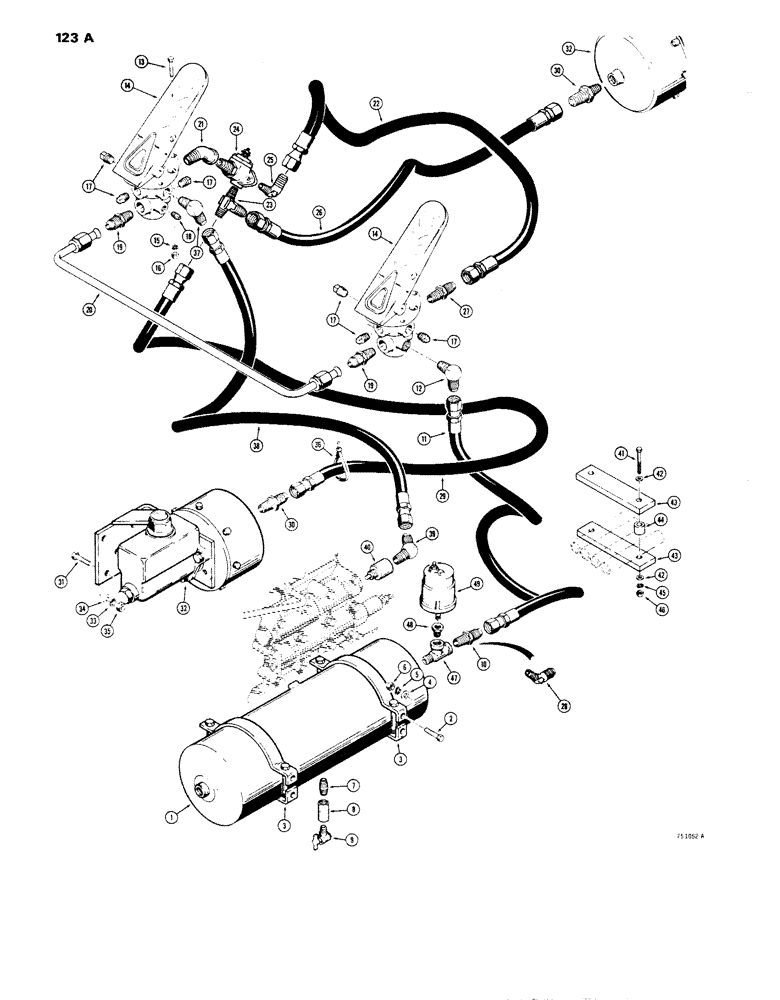

Запчасти Case W14 (123A) - BRAKE SYSTEM, RESERVOIR TO TREADLE, MASTER CYLINDER AND CLUTCH CUTOUT), MODELS W/ INSTRUMENT CLUSTER (07) - BRAKES

1

L14823

TANK

RESERVOIR - air brake system

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

3

L12632

BRACKET

- mounting, reservoir

2шт.

4

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

7

221-1134

PIPE

NIPPLE - pipe (1/4" NPT x 1-1/2" long)

1шт.

8

221-1327

X

COUPLING - pipe (1/4" NPT)

1шт.

9

217-101

VALVE

DRAIN - moisture, reservoir

1шт.

10

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, straight

1шт.

11

L51312

HOSE

- reservoir to L.H. brake treadle (81" long)

1шт.

12

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degree

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

14

L44173

VALVE

TREADLE AND VALVE ASSEMBLY - parts list Figure 128

2шт.

15

92-5

LOCK WASHER,5/16"

6шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

6шт.

17

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

7шт.

18

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (14" NPT)

1шт.

19

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, straight

2шт.

20

L48137

TUBE,0.625" OD

- connecting, R.H. to L.H. treadle

1шт.

21

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

- street, 45 degree

1шт.

22

L52020

HOSE

- treadles to master cylinders (15" long)

1шт.

23

218-626

TEE,9/16"-18, 37º x 3/8"-18, NPTF Run

1шт.

24

L48128

VALVE

- double check, air (Parts list Figure 132)

1шт.

25

218483

ROD

FITTING - 90 degree, male

1шт.

26

L51323

HOSE ASSY.

HOSE - brake (28" long)

1шт.

27

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, straight

1шт.

28

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

FITTING - 45 degree, street (If used - emergency steering)

1шт.

29

L51312

HOSE

- 81" long

1шт.

30

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

2шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Front cylinder) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

31

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Rear cylinder)

2шт.

32

L50885

CLUSTER

MASTER CYLINDER - brake (Parts list Figure 130)

2шт.

33

92-6

LOCK WASHER,3/8"

4шт.

34

95-6

WASHER,3/8"

- plain () Rear cylinder 3/8"

2шт.

35

9635082

NUT,5/16" - 18, Gr 5

- hex. (3/8" - 16 NC)

4шт.

36

L11541

CABLE TIE,203.2mm L, Nylon

TIE - hose

1шт.

37

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

- male, 45 degree

1шт.

38

L48061

HOSE

- treadle to clutch cutout cylinder (52" long)

1шт.

39

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

male 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

40

L12627

CYLINDER

- clutch cutout

1шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

42

95-6

WASHER,3/8"

- plain () 3/8"

8шт.

43

L71713

BRACKET

STRAP - hose

4шт.

44

G50050

SPACER - hose strap

2шт.

45

92-6

LOCK WASHER,3/8"

4шт.

46

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

47

221-1693

TEE,Street, 1/2" NPT

- 1/2" NPT, street

1шт.

48

221-1054

BUSHING

- reducing, 1/2" x 1/8"

1шт.

49

L57176

SENDER UNIT

SENDER - air pressure

1шт.
