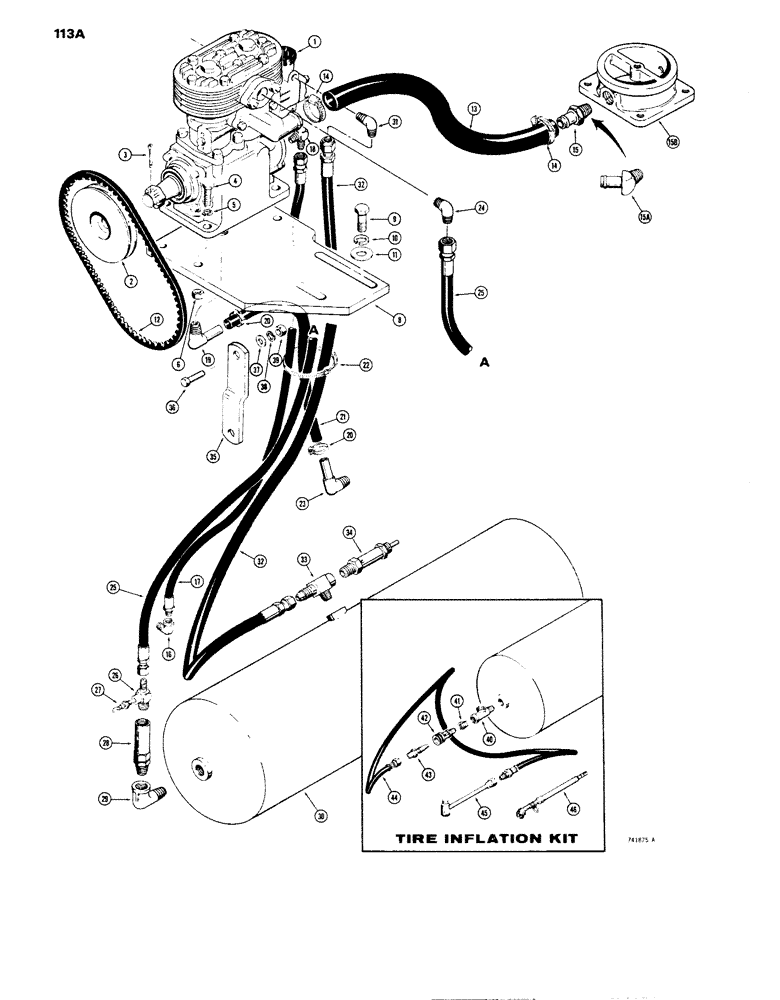

Запчасти Case W14 (113A) - BRAKE SYSTEM, L17683 AIR COMPRESSOR AND RELATED PARTS, USED TRAC. S/N 9119152 AND AFTER (07) - BRAKES

1

L17683

COMPRESSOR

Air, brake (Parts list Figure 119A)

1шт.

REFERENCE ILLUSTRATION FIGURE, REF 1 AND REF. 8 THE GASKET BETWEEN THESE REFS. IS L32918

1шт.

2

L57805

PULLEY

Drive, compressor

1шт.

3

132-48

COTTER PIN,1/8" x 1"

1шт.

4

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

5

92-7

LOCK WASHER,7/16"

4шт.

6

25-107

NUT,7/16"-14, G5

4шт.

7

RESERVED

1шт.

8

L70139

PLATE

Mounting, compressor

1шт.

REF. 8 SEE FIGURES 16 AND 17A FOR COPLETE MOUNTING BRACKET A61155

1шт.

REFERENCE ILLUSTRATION FIGURE, REF. 1 AND REF. 8 THE GASKET BETWEEN THESE REFS. IS L32918

1шт.

9

26-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

3шт.

10

92-7

LOCK WASHER,7/16"

3шт.

11

195-2042

WASHER,.469" x 1 1/2" x .134"

WASHER - 7/16" special

3шт.

12

L57802

V-BELT,12.70" W

Compressor drive

1шт.

13

L59994

HOSE ASSY.

5/8" x 12, nonturbo charge models

1шт.

13

L47888

HOSE

5/8" x 37", turbo charged models

1шт.

14

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

Inlet hose, 5/16"

2шт.

15

217-160

FITTING,3/4" Hose Barb x 1/2" Male NPTF

STEM, straight (If used)

1шт.

15a

217-185

FITTING,45 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

STEM, (If used)

1шт.

15b

REF

INSTRUCTION

BASE - air cleaner, see page 59

1шт.

16

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street

1шт.

17

L51638

HOSE ASSY.

Lubrication, compressor (25" long)

1шт.

18

218-482

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

Male

1шт.

19

A27489

ELBOW UNION

Union Elbow 90 degree, hose barb

1шт.

20

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

21

L51648

HOSE,0.50" ID x 18.00", SAE 30R2 Type 1

Lubrication drain (1/2" ID. x 18" long)

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Hose

1шт.

23

A27489

ELBOW UNION

Union Elbow 90 degree hose barb

1шт.

24

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

Male

1шт.

25

L70352

HOSE ASSY.

Compressor to reservoir (35" long)

1шт.

26

L51313

FITTING

TEE - special

1шт.

27

L51311

LOCK VALVE

Air

1шт.

28

L12586

VALVE

Check, air pressure

1шт.

29

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

Street

1шт.

30

L14823

TANK

RESERVOIR - air, brake system

1шт.

31

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

Pipe

1шт.

32

L51322

HOSE ASSY.

Governor to reservoir (33-1/4" long)

1шт.

33

L48131

FITTING

TEE - special

1шт.

34

L48992

VALVE,1/4"

ASSEMBLY - safety

1шт.

35

L59871

STRAP

Compressor support

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Strap compressor mounting

1шт.

37

95-6

WASHER,3/8"

Standard wrot, Strap compressor mounting

1шт.

38

92-6

LOCK WASHER,3/8"

Strap compressor mounting

1шт.

39

25-106

NUT,3/8"-16, G5

Strap compressor mounting

1шт.

40

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

1шт.

41

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Bushing

1шт.

42

L13978

VALVE

CHECK - air

1шт.

43

L13979

COUPLING

Adapter

1шт.

44

L15274

HOSE

Inflation

1шт.

45

L13983

FAN

CHUCK - air

1шт.

46

L13977

GAUGE ASSY.

Air pressure

1шт.
