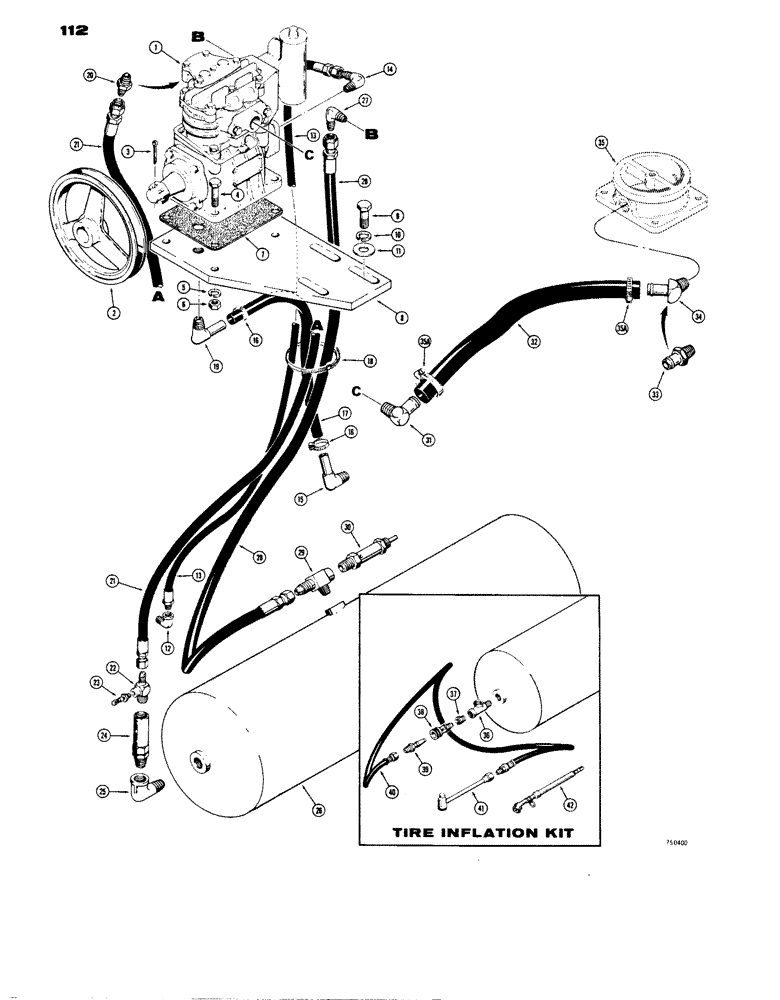

Запчасти Case W14 (112) - BRAKE SYSTEM, L52092 AIR COMPRESSOR AND RELATED PARTS, USED BEFORE TRAC. S/N 9119152 (07) - BRAKES

1

L52092

COMPRESSOR

Air, brake (Parts list Figure 116)

1шт.

2

L51052

PULLEY

Drive, compressor

1шт.

3

132-48

COTTER PIN,1/8" x 1"

1шт.

4

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

4шт.

7

L10354

GASKET

, Serial Range: Compressor-plate

1шт.

8

L52449

PLATE

Mounting, compressor

1шт.

REF. 8 - PART# L52449 = FOR PICTURE OF BRKT THIS MOUNTS TO, SEE PG 16, REF. 22, PART# A61155.

1шт.

9

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

3шт.

10

92-7

LOCK WASHER,7/16"

3шт.

11

95-7

WASHER,7/16"

3шт.

12

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street

1шт.

13

L51638

HOSE ASSY.

Lubrication, compressor (25" long)

1шт.

14

218-482

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

Male

1шт.

15

A27489

ELBOW UNION

Union Elbow 90 degrees, hose barb

1шт.

16

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

17

L51648

HOSE,0.50" ID x 18.00", SAE 30R2 Type 1

Lubrication drain (1/2" L.D. x 18" long)

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Hose

1шт.

19

A27489

ELBOW UNION

Union Elbow 90 degrees hose barb

1шт.

20

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

1шт.

21

L51323

HOSE ASSY.

Compressor to reservoir (28" long)

1шт.

22

L51313

FITTING

TEE - special

1шт.

23

L51311

LOCK VALVE

Air

1шт.

24

L12586

VALVE

Check, air pressure

1шт.

25

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

Street

1шт.

26

L14823

TANK

RESERVOIR - air, brake system

1шт.

27

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

Pipe

1шт.

28

L51322

HOSE ASSY.

Governor to reservoir (33-1/4" long)

1шт.

29

L48131

FITTING

TEE - special

1шт.

30

L48992

VALVE,1/4"

ASSEMBLY - SAFETY

1шт.

31

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

STEM

1шт.

32

L51369

HOSE ASSY.

5/8" x 16", nonturbo charged models

1шт.

32

L47888

HOSE

5/8" x 37" turbo charged models

1шт.

33

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

STEM, straight (If used)

1шт.

34

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

(If used)

1шт.

35

REF

INSTRUCTION

BASE - air cleaner, see Figure 058

1шт.

35a

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Worm screw type

2шт.

36

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

Tire inflation kit

1шт.

37

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Bushing, Tire inflation kit

1шт.

38

L13978

VALVE

CHECK - air, tire inflation kit

1шт.

39

L13979

COUPLING

Adapter, tire inflation kit

1шт.

40

L15274

HOSE

Inflation, tire inflation kit

1шт.

41

L13983

FAN

CHUCK - air, tire inflation kit

1шт.

42

L13977

GAUGE ASSY.

Air pressure, tire inflation kit

1шт.
