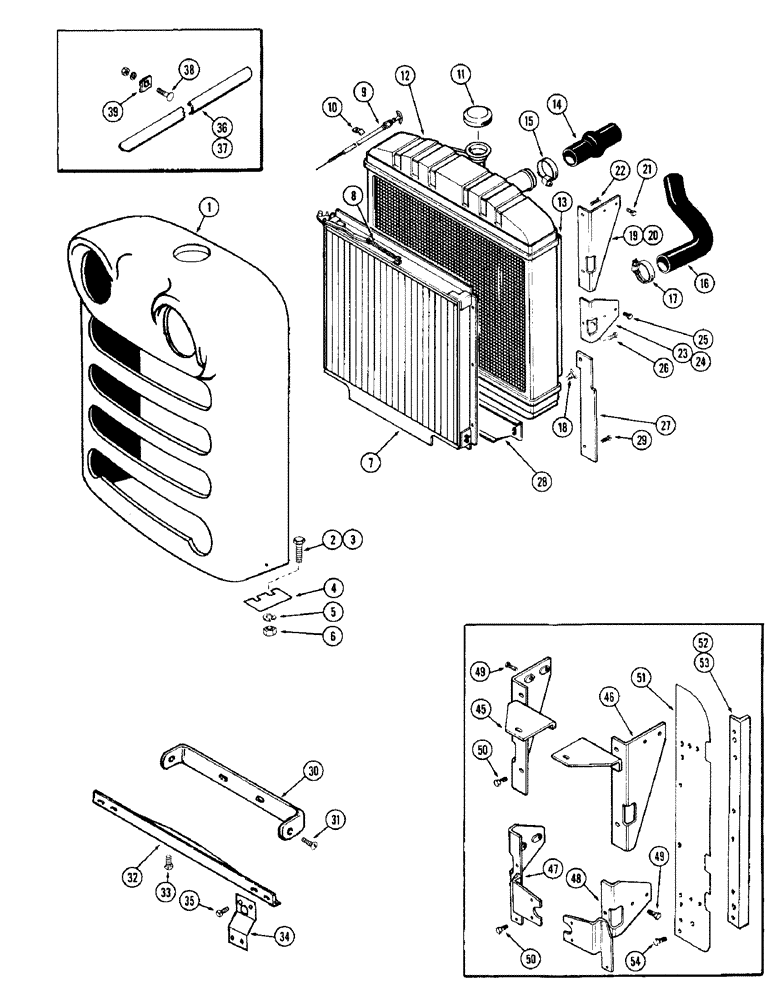

Запчасти Case W12 (162) - RADIATOR-GRILLE AND SHUTTER, RADIATOR BRACKETS W/O SHUTTER (09) - CHASSIS

1

A15030

GRILLE - radiator

1шт.

2

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- hex. hd., 1/2 x 1-1/2" N.F.

2шт.

3

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- hex. hd., 1/2 x 2" N.F.

2шт.

4

L10678

SPACER - radiator grille

2шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

25-118

NUT,1/2"-20, G5

- hex., 1/2" N.F.

2шт.

7

A15960

SHUTTER ASSY. - radiator, Includes: Ref. 8

1шт.

8

A9909

SPRING - tension, shutter lever

1шт.

9

A20176

CONTROL ASSY. - shutter adjusting

1шт.

10

A26646

CLIP - retainer, shutter control

1шт.

11

A21389

CAP

ASSY. - radiator (7 lb. press) (Replaces A10259)

1шт.

12

A15515

RADIATOR

ASSY. - eng. water (w/oil cooler), Includes: Ref. 13

1шт.

13

A22946

SHROUD - fan, radiator

1шт.

14

A19496

HOSE

- inlet, radiator (Replaces A15489)

1шт.

15

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - inlet hose, 2-5/16" to 3-1/4"

2шт.

16

A15518

HOSE

- radiator to water pump (Lower)

1шт.

17

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - lower rod hose, 2-5/16" to 3-1/4"

2шт.

18

A23655

VALVE

ASSY. - radiator drain

1шт.

19

A15936

BRACKET - upper R.H., radiator & shutter mtg.

1шт.

20

A15937

BRACKET

- upper L.H., radiator & shutter mtg.

1шт.

21

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

22

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- hex. hd., 3/8 x 1-1/4" N.F.

4шт.

23

A15930

BRACKET - lower, R.H., radiator & shutter mtg.

1шт.

24

A15931

BRACKET - lower, L.H., radiator & shutter mtg.

1шт.

25

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

26

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- hex. hd., 3/8" x 1-1/4" N.F.

4шт.

27

A15933

SUPPORT - lower radiator baffle

2шт.

28

A15491

BAFFLE - lower radiator

1шт.

29

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - hex. hd., 1/4 x 5/8" N.F.

3шт.

30

A15934

BRACKET - rear lamp mtg. (Prior 1962 production)

1шт.

31

76-620

SCREW - mach., 3/8" x 1-1/4" N.F. rd. hd.

2шт.

32

A15935

SUPPORT - tail lamp mtg. (Used w/early production)

1шт.

33

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- hex. hd., 1/2 x 1-1/2" N.F.

2шт.

34

A15938

BRACKET - stop light mtg. (w/early models)

2шт.

35

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

36

A12362

MOULDING - grille R.H. (Use w/early production)

1шт.

37

A12363

MOULDING - grille L.H. (Use w/early production)

1шт.

38

NSS

NOT SOLD SEPARAT

BOLT - carriage, #10 x 7/8" N.F.

4шт.

39

A12364

CLIP - moulding retainer

4шт.

45

A15497

BRACKET - rear lamp & radiator upper L.H., radiator brackets w/o shutter, Serial Range: -8170137

1шт.

46

A15496

BRACKET - rear lamp & radiator upper R.H., radiator brackets w/o shutter, Serial Range: -8170137

1шт.

47

A15503

BRACKET - stop light & radiator lower L.H., radiator brackets w/o shutter, Serial Range: -8170137

1шт.

48

A15502

BRACKET - stop light & radiator lower R.H., radiator brackets w/o shutter, Serial Range: -8170137

1шт.

49

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- hex. hd., 3/8" x 1-1/4" N.F., radiator brackets w/o shutter, Serial Range: -8170137

8шт.

50

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Radiator brackets w/o shutter Hex, 5/16"-24 x 5/8", G5, Full Thd, Serial Range: -8170137

6шт.

51

A14269

BAFFLE - radiator L.H. & R.H. side, radiator brackets w/o shutter, Serial Range: -8170137

2шт.

52

A14272

ANGLE - support, R.H., radiator brackets w/o shutter, Serial Range: -8170137

1шт.

53

A14273

ANGLE - support, L.H., radiator brackets w/o shutter, Serial Range: -8170137

1шт.

54

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- hex. hd., 1/4 x 3/4" N.F., radiator brackets w/o shutter, Serial Range: -8170137

4шт.
