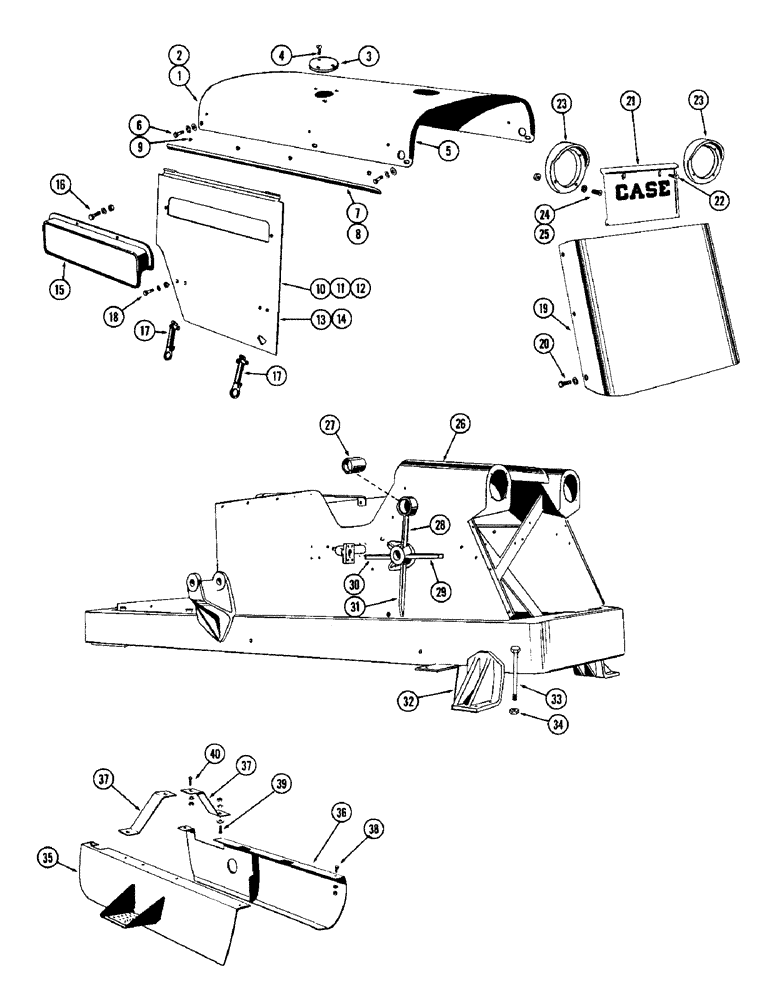

Запчасти Case W12 (160) - HOOD-PANELS AND CHASSIS (09) - CHASSIS

1

A14306

HOOD - engine (Use w/o cab)

1шт.

2

A14803

HOOD - engine (Use w/cab only)

1шт.

3

A16579

COVER - opening (Use w/hood on oil bath install.)

1шт.

4

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- mach., 1/4 x 5/8" rd. hd.

3шт.

5

A12604

MOULDING - hood anti-squeak

1шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

7

A14304

MOULDING - hood R.H. (Prior "62" production)

1шт.

8

A14305

MOULDING - hood L.H. (Prior "62" production)

1шт.

9

A26838

CLIP - spring, hood moulding (Use w/ref. 7 & 8)

8шт.

10

A15582

SIDE PANEL ASSY. - hood R.H. (w/o name plate) (Use w/dry air cleaner)

1шт.

11

A16571

SIDE PANEL ASSY. - hood R.H. (w/o nameplate) (Used w/oil bath air cleaner)

1шт.

12

A14300

HOOD

SIDE PANEL ASSY. - hood R.H. (w/nameplate)

1шт.

13

A15583

SIDE PANEL ASSY. - hood L.H. (w/o nameplate)

1шт.

14

A14299

SIDE PANEL ASSY. - hood L.H. (w/nameplate)

1шт.

15

A12474

PLATE - name (Use w/ref. 12 & 14 only)

2шт.

16

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

- hex. hd., 5/16 x 1" N.F.

8шт.

17

A12514

LATCH

ASSY. - side panel

4шт.

18

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- mach., #12 x 5/8" rd. hd.

8шт.

19

A12250

PANEL - nose, chassis

1шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

21

A12251

PLATE - name, front cover

1шт.

22

193-508

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

- sems, 5/16"-18 x 1"

2шт.

23

R16791

RING - headlight mounting

2шт.

24

75-424

SCREW

- mach., 1/4 x 1-1/2" N.C., Oval hd.

7шт.

25

75-428

SCREW

- mach., 1/4 x 1-3/4" N.C., Oval hd.

1шт.

26

A13926

CHASSIS ASSY. - loader unit, Includes: Ref. 27 - 32

1шт.

27

A16762

BUSHING

- lift arm pivot shaft

2шт.

A16456

REINFORCEMENT KIT - chassis, Includes: Ref. 28 - 32

1шт.

28

A16430

GUSSET - level link pivot (Upper)

2шт.

29

A16432

GUSSET - level link pivot (Front)

2шт.

30

A16429

GUSSET - level link pivot (Rear)

2шт.

31

A16431

GUSSET - level link pivot (Lower)

2шт.

32

A16464

GUSSET - front axle bracket

2шт.

33

116-900

BOLT,Hex, 1" - 14 x 11", Gr 8

Hex, 1"-12 x 11", G8

8шт.

34

131-188

LOCK NUT,1"-14, GB

NUT - hex., 1" N.C., Esna

8шт.

35

A13966

PANEL ASSY. - channel R.H. side

1шт.

36

A13967

PANEL ASSY. - channel L.H. side

1шт.

37

A15834

BRACE - support, L.H. & R.H. channel panel

2шт.

38

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- hex. hd., 3/8 x 1-1/4" N.F.

8шт.

39

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- hex. hd., 3/8 x 1" N.F.

2шт.

40

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- hex. hd., 3/8 x 1-1/4" N.F.

2шт.
