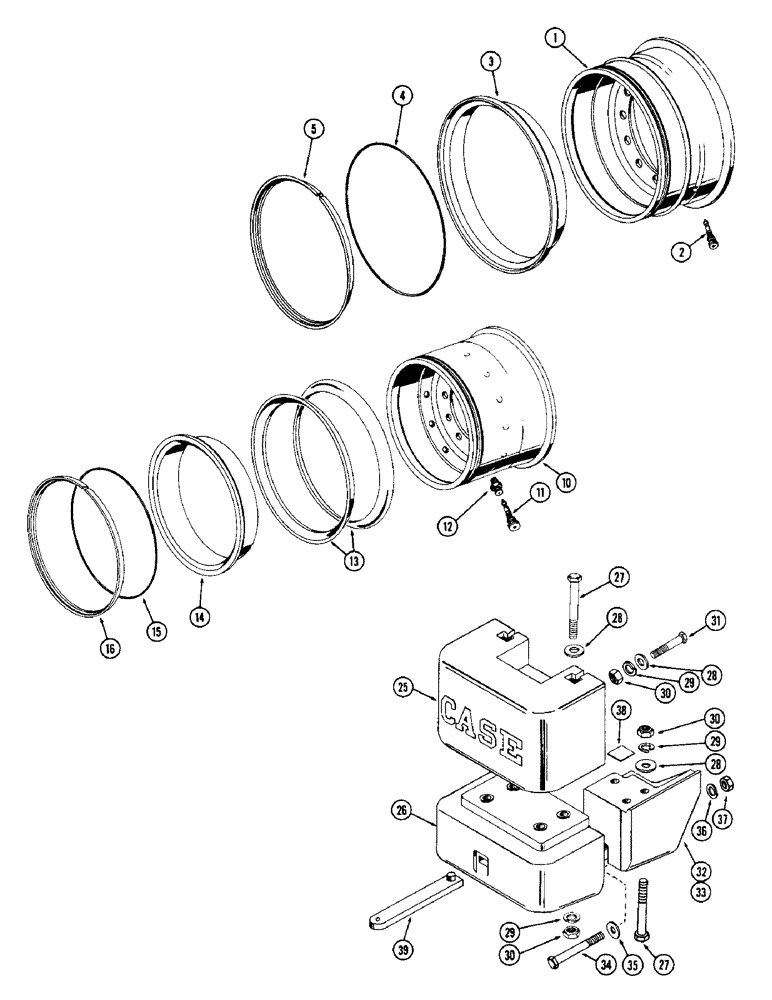

Запчасти Case W12 (158) - DRIVE WHEEL, W/16.00 X 24 TIRE (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
A14202
WHEEL - drive, front & rear (10.00)
4шт.
2
A20058
VALVE STEM
Assy, Tubeless tire
4шт.
3
A14203
RING
- wheel side
4шт.
4
A13099
O-RING,22 1" ID x 0.25"
"O" RING - wheel lock
4шт.
5
A14204
RING
- lock, wheel
4шт.
10
A16421
WHEEL - drive, front & rear, drive wheel w/20.5 x 25 tire
4шт.
11
A16426
VALVE ASSY. - tubeless tire, drive wheel w/20.5 x 25 tire
4шт.
12
L11406
ADAPTER
ASSY. - tire valve, drive wheel w/20.5 x 25 tire
4шт.
13
A16422
BACK-UP RING
RING - wheel side, drive wheel w/20.5 x 25 tire
8шт.
14
A16423
RING
SEAT - wheel side ring, drive wheel w/20.5 x 25 tire
4шт.
15
A16425
O-RING,10.29mm Thk x 573.02mm ID, 65 Duro
"O" RING - wheel lock ring, drive wheel w/20.5 x 25 tire
4шт.
25
A13986
COUNTERWEIGHT - upper rear, counterweights and drawbar
1шт.
26
A13987
COUNTERWEIGHT - lower rear, counterweights and drawbar
1шт.
27
15-12136
BOLT
- hex. hd., 3/4 x 8-1/2" N.C. (Grade 5), counterweights and drawbar
12шт.
28
195-45
WASHER,3/4"
Counterweights and drawbar 3/4"
15шт.
29
92-12
LOCK WASHER,3/4"
WASHER, LOCK, , Counterweight and drawbar 3/4"
15шт.
30
25-1012
NUT,3/4"-10, G5
Counterweights and drawbar 3/4"-10, G5
15шт.
31
13-1264
BOLT,Hex, 3/4" - 10 x 4", Gr 5
Counterweights and drawbar Hex, 3/4"-10 x 4", G5
3шт.
32
A13988
COUNTERWEIGHT - side, lower R.H., counterweights and drawbar
1шт.
33
A13989
COUNTERWEIGHT - side, lower L.H., counterweights and drawbar
1шт.
34
13-1480
BOLT,Hex, 7/8" - 9 x 5", Gr 5
Counterweights and drawbar Hex, 7/8"-9 x 5", G5
2шт.
35
195-49
WASHER
- plain, 7/8", counterweights and drawbar
2шт.
36
92-14
LOCK WASHER,7/8"
WASHER, LOCK, , Counterweights and drawbar 7/8"
2шт.
37
25-1014
NUT,7/8"-9, G5
Counterweights and drawbar 7/8"-9, G5
2шт.
38
A15753
SPACER - shiming, counterweight and drawbar
1шт.
39
A13985
DRAWBAR - towing, counterweights and drawbar
1шт.
Выбрано товаров: 27
