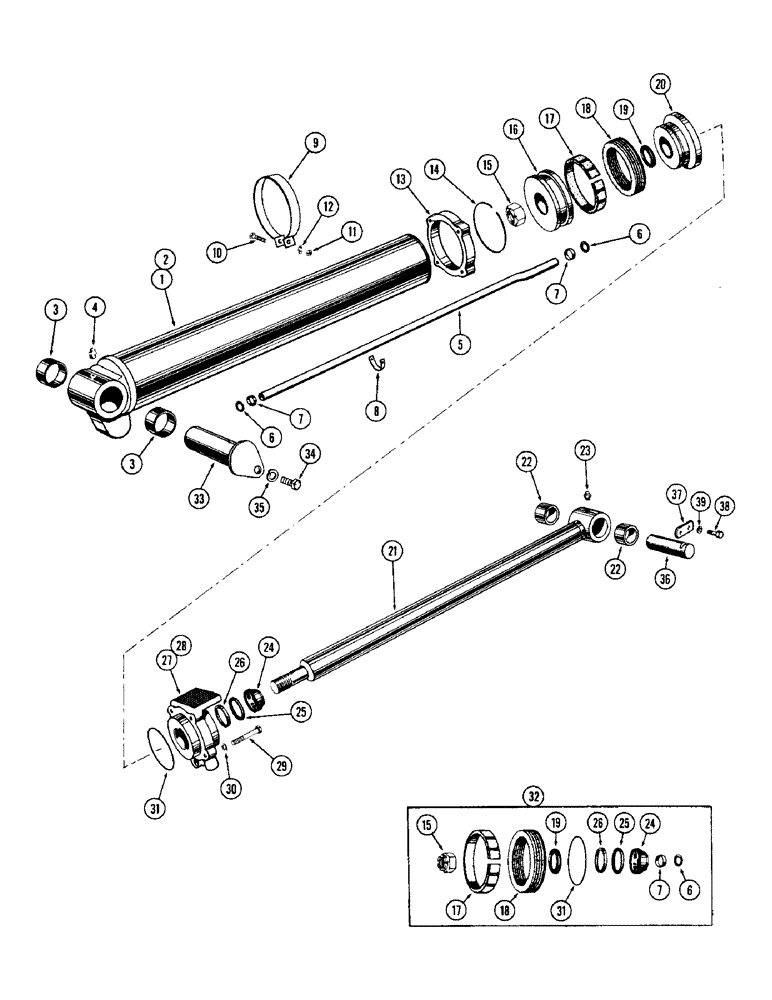

Запчасти Case W12 (184) - HYDRAULIC LIFT CYLINDER (08) - HYDRAULICS

A17882

CYLINDER ASSY. - hydraulic lift (Heavy duty) R.H., Includes: Ref. 1 - 31

1шт.

A14212

CYLINDER ASSY. - hyd. lift R.H. (Std.) (Order A17882), Includes: Ref. 1 - 31

1шт.

A17883

CYLINDER BLOCK

CYLINDER ASSY. - hyd. lift L.H. (Heavy duty), Includes: Ref. 1 - 31

1шт.

A14213

CYLINDER ASSY. - hyd. lift L.H. (Std.) (Order A17883), Includes: Ref. 1 - 31

1шт.

1

A14214

CYLINDER BLOCK

CYLINDER - piston & rod housing R.H.

1шт.

2

A14215

TUBE

CYLINDER - piston & rod housing L.H.

1шт.

3

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- cylinder end cap

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. straight

1шт.

5

A14231

TUBE

- cylinder port

1шт.

6

A14232

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

"O" RING - port tube

2шт.

7

A14233

WASHER

- back-up, "O" Ring

2шт.

8

A15381

CLAMP

- port tube strap

1шт.

9

A15382

STRAP - cylinder port tube

1шт.

10

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

1шт.

11

25-115

NUT,5/16"-24, G5

- hex, 5/16" NF

1шт.

12

92-5

LOCK WASHER,5/16"

1шт.

13

A14226

CLAMP - cylinder snap ring

1шт.

14

A14225

RING, SNAP

RING - snap, cylinder clamp

1шт.

15

131-62

LOCK NUT,1 1/7 4"-12

NUT - hex. lock, 1-1/4" N.F., Esna

1шт.

16

A17813

LARGE PLATE

PLATE - follower, cylinder

1шт.

17

A17814

SCRAPER RING

RING - piston wear

1шт.

18

A17815

GASKET KIT

PACKING - piston "V" ring

1шт.

19

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

"O" RING - piston rod

1шт.

20

A17812

PISTON - cylinder rod

1шт.

21

A14219

ROD

- cylinder piston

1шт.

22

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- piston rod end

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. straight

1шт.

24

A13893

WIPER

SEAL - oil, piston rod

1шт.

25

A13902

WASHER

- back-up "O" ring

1шт.

26

A14230

RING

"O" RING - piston rod outer

1шт.

27

A14228

HEAD (CYLINDER)

HEAD - cylinder R.H.

1шт.

28

A14229

HEAD - cylinder L.H.

1шт.

29

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

- hex. hd., 5/8 x 2-3/4" N.F.

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31

A14227

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

"O" RING - cylinder head

1шт.

32

A17866

KIT

REPAIR KIT - lift cylinder

1шт.

33

A12499

PIN - pivot, lift cylinder rear mtg.

2шт.

34

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

35

92-8

LOCK WASHER,1/2"

2шт.

36

A14327

PIN - pivot, lift cylinder front mtg. (replaces A14237), Includes: Ref. 37

2шт.

37

A14106

X

LOCK - pivot pin

2шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

39

92-6

LOCK WASHER,3/8"

4шт.
