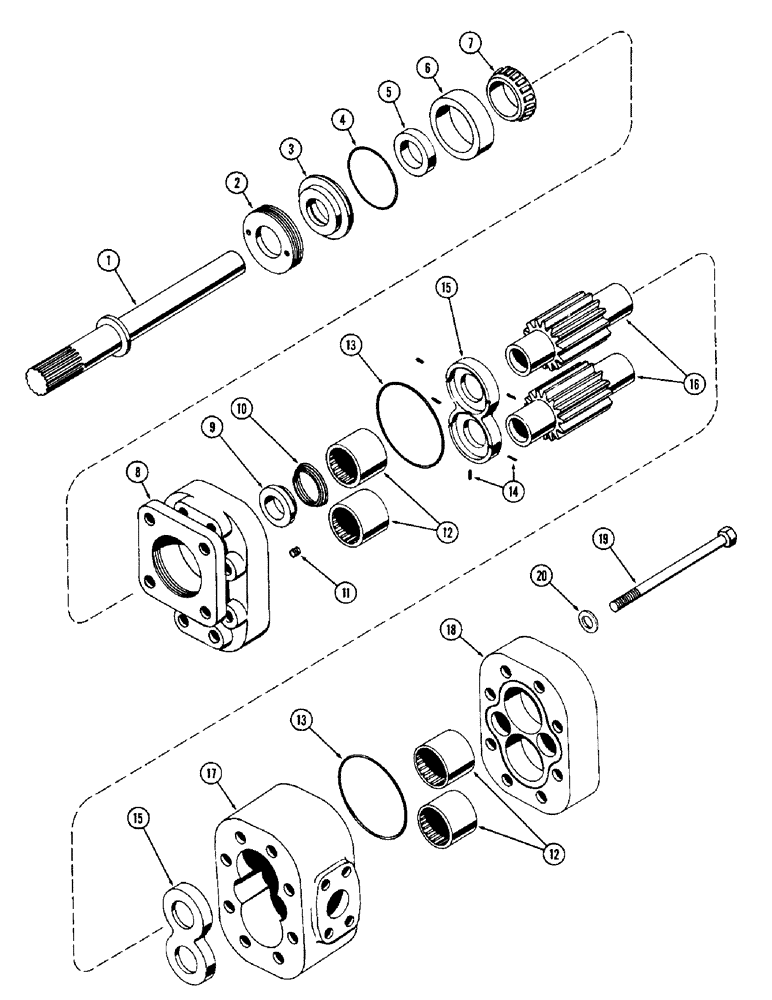

Запчасти Case W12 (182) - HYDRAULIC PUMP (08) - HYDRAULICS

A16690

PUMP, HYDRAULIC

PUMP ASSY. - hydraulic oil, Includes: Ref. 1 - 20

1шт.

1

A16799

SHAFT

- pump drive

1шт.

2

A16792

NUT

- retainer, bearing & shaft

1шт.

3

A16791

RETAINER

- seal

1шт.

4

L30008

O-RING

"O" RING - seal retainer (Replaces A16797)

1шт.

5

A16796

SEAL

- oil, drive shaft (Double lip)

1шт.

6

A16794

BEARING CUP

CUP - bearing, drive shaft

1шт.

7

A16795

ROLLER BEARING,1.375" ID x 1.125"

BEARING - cone roller, drive shaft

1шт.

8

A16805

COVER - pump front

1шт.

9

A16789

BUSHING

- pump shaft

1шт.

10

A16790

SPRING

- shaft bushing

1шт.

11

84-67

SCREW - set, 7/16 x 3/8" N.F., sckt. hd. cup pt.

1шт.

12

A16793

NEEDLE BEARING

BEARING - pump gear

4шт.

13

A16798

X

"O" RING - gasket, housing

2шт.

14

D35672

SEAL

- pocket (Cut to lengths of (8) 1/4" and (4) 5/64")

1шт.

15

A16800

PLATE

- thrust, driven gear

2шт.

16

A16803

GEAR WHEEL

GEAR - pump driven (Matched set of 2)

1шт.

17

A16807

HOUSING

- pump gear

1шт.

18

T41838

COVER - pump port end

1шт.

19

13-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

8шт.

20

95-8

WASHER,1/2"

- plain 1/2"

8шт.
