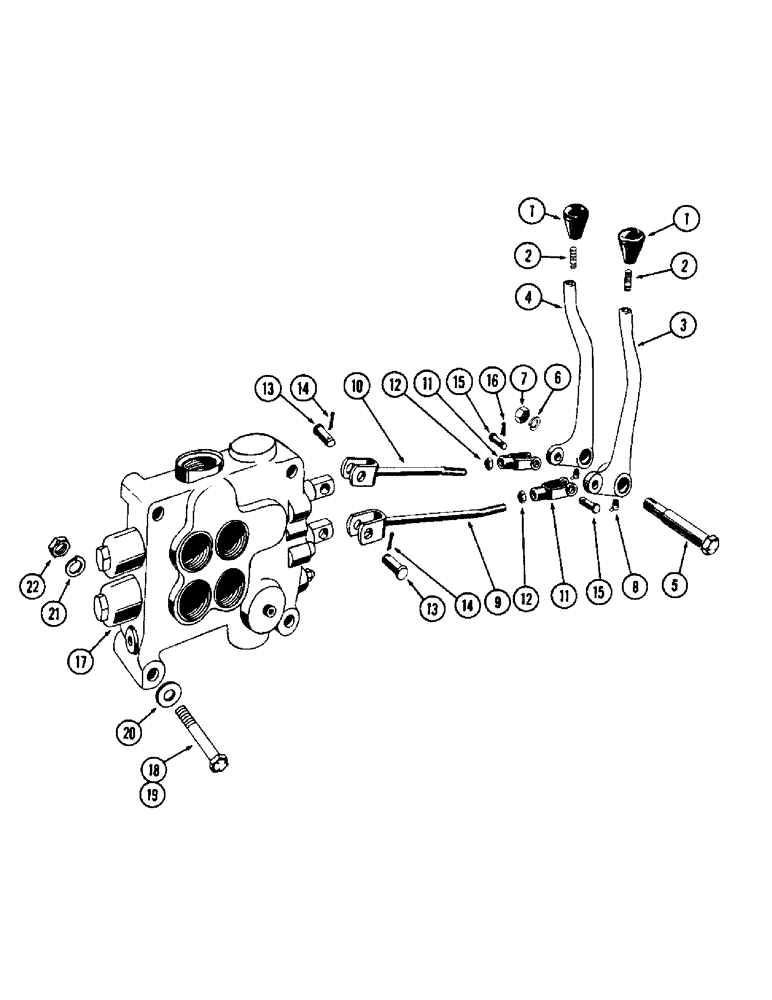

Запчасти Case W12 (180) - HYDRAULIC VALVE HAND CONTROLS (08) - HYDRAULICS

1

A14051

GRIP

KNOB - hand control lever

2шт.

2

A16775

STUD

- lever knob retainer

2шт.

3

A14186

LEVER - inner hand, tilt spool

1шт.

4

A14187

LEVER - outer hand, lift spool

1шт.

5

A12342

PIN - pivot, hand lever

1шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex. jam, 5/8" N.F.

1шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

9

A14188

ROD - control, tilt spool lever

1шт.

10

A14190

ROD - control, lift spool lever

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - end, 3/8" light adjustable

2шт.

12

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam, 3/8" N.F.

2шт.

13

A28041

PIN

- clevis, control, Serial Range: rod-spool

2шт.

14

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

15

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Yoke to lever 3/8" x 1.060"

2шт.

16

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

17

A56429

SPARE PART

VALVE ASSY. - hydraulic control (Repairs, Figures. 172 & 174)

1шт.

A15925

ELBOW UNION

ELBOW - valve pressure check (Not illust.)

1шт.

18

14-888

BOLT - hex. hd., 1/2 x 5-1/2" N.F.

1шт.

19

62-888

BOLT - hex. sckt. hd., 1/2 x 5-1/2" N.F.

2шт.

20

A26381

WASHER

- spacer, valve

1шт.

21

92-8

LOCK WASHER,1/2"

3шт.

22

25-118

NUT,1/2"-20, G5

- hex., 1/2" N.F.

3шт.
