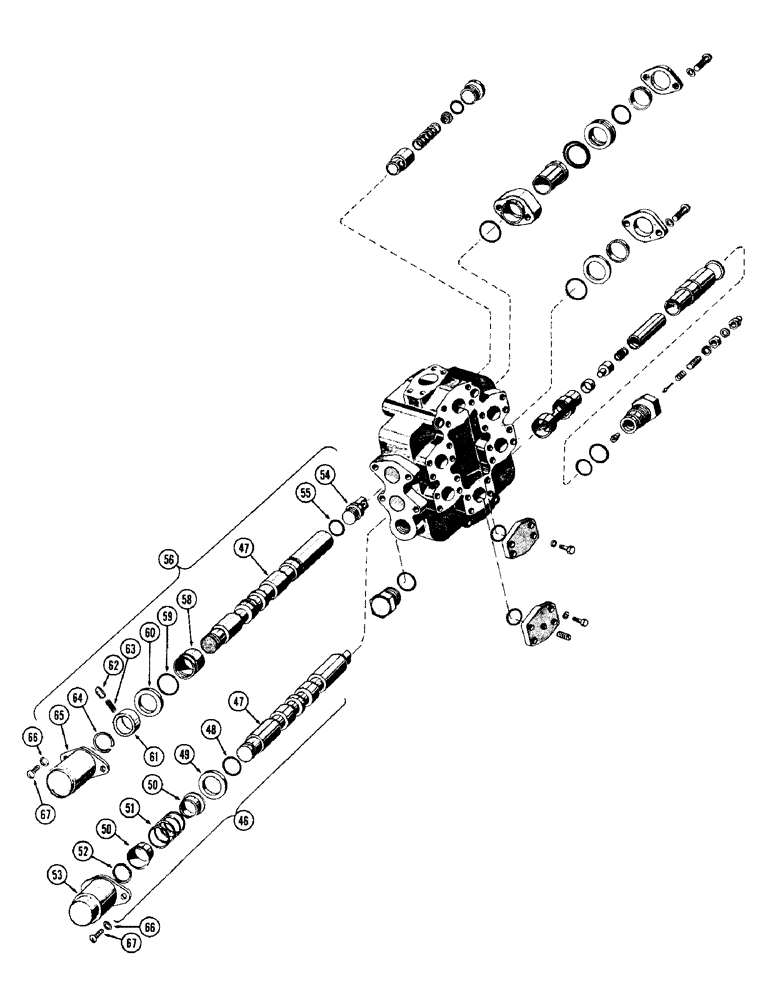

Запчасти Case W12 (178) - HYDRAULIC CONTROL VALVE (CONT) (08) - HYDRAULICS

A16433

VALVE ASSY. - hydraulic control (Order A56429), Includes: Ref. 46 - 67

1шт.

46

A15562

SPOOL ASSY. - tilt, Includes: Ref. 47 - 53

1шт.

47

NSS

NOT SOLD SEPARAT

SPOOL - tilt (Order A15562)

1шт.

48

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - tilt spool (replaces A27507 )

1шт.

49

A15566

RETAINER - spool "O" ring

1шт.

50

A15543

RETAINER

- spring

2шт.

51

A15544

SPRING - spool

1шт.

52

A15530

RING - snap, spool centering

1шт.

53

A15560

COVER - spool end

1шт.

54

A15563

EYE - float spool eye

1шт.

55

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - spool eye

1шт.

56

A15564

SPOOL ASSY. - float, 4 detent, Includes: Ref. 57 - 65

1шт.

57

NSS

NOT SOLD SEPARAT

SPOOL - valve float

1шт.

58

A15555

RESTRICTOR - float spool

1шт.

59

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

"O" RING - spool retainer

1шт.

60

A15566

RETAINER - spool centering

1шт.

61

A16492

RETAINER - position detent

1шт.

62

A16491

POPPET - position detent

2шт.

63

A16490

SPRING - detent poppet

2шт.

64

A15530

RING - snap, spool centering

1шт.

65

A16493

COVER - end, float spool

1шт.

66

75-412

SCREW,Rd, 1/4" x 3/4"

- mach., 1/4 x 3/4" N.C., rd. hd.

4шт.

67

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
