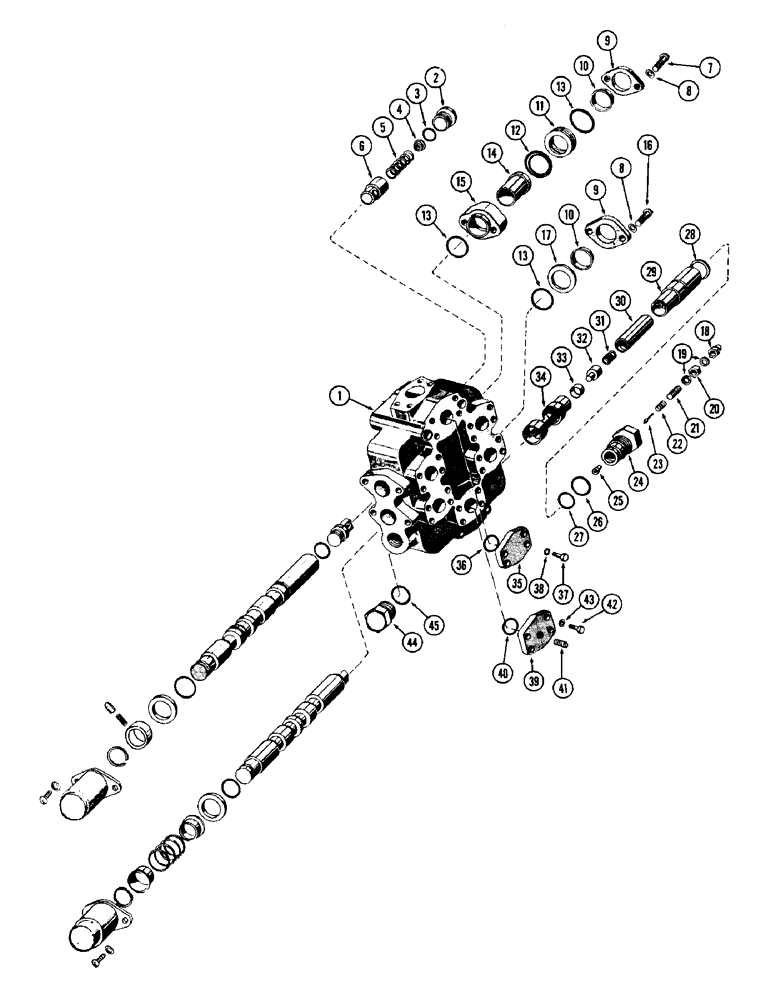

Запчасти Case W12 (176) - HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

A16433

VALVE ASSY. - hydraulic control (Order A56429), Includes: Ref. 1 - 45

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order A56429 valve)

1шт.

2

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Assy, relief valve, rd. recessed hd., Includes Ref 3 Hex Soc, 1 3/16"-12 ORB

2шт.

3

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - relief valve plug

1шт.

4

A15542

GUIDE - relief valve spring

2шт.

5

A15541

SPRING - relief valve

2шт.

6

A15540

POPPET - relief valve

2шт.

7

75-428

SCREW

- mach., 1/4 x 1-3/4" N.C. rd. hd.

2шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

9

A15546

RETAINER

- spool seal

2шт.

10

A15545

SPARE PART

WIPER - spool

2шт.

11

A15558

RETAINER - float spool seal

1шт.

12

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - retainer outside

1шт.

13

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - retainer (replaces A27507)

3шт.

14

A15557

SLEEVE - float spool

1шт.

15

A15559

RETAINER - float spool sleeve

1шт.

16

75-412

SCREW,Rd, 1/4" x 3/4"

- mach., 1/4 x 3/4" N.C., rd. hd.

2шт.

17

A15537

RETAINER

SEAL - retainer, tilt spool

1шт.

18

129-542

NUT - hex. acorn, valve screw

1шт.

19

D26270

WASHER, SEALING

GASKET - relief valve screw

2шт.

20

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex. jam, 1/2" N.F.

1шт.

21

A15909

X

SCREW - adjusting, pilot valve

1шт.

22

D26268

SPRING

- pilot valve

1шт.

23

D26267

PLUNGER

- pilot valve

1шт.

24

A15912

CAP - pilot valve adjusting

1шт.

25

D26266

SEAT

- pilot plunger

1шт.

26

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - pilot valve cap

1шт.

27

A32178

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

"O" RING - pilot valve inner

1шт.

28

A15922

RING - back up, pilot cap (Teflon)

1шт.

29

A15916

GUIDE - valve spacer

1шт.

30

A15917

SPACER - valve spring

1шт.

31

A15918

VALVE SPRING

SPRING - relief valve

1шт.

32

A15919

X

PLUNGER - relief, pilot valve

1шт.

33

A15920

X

SCREEN ASSY. - pilot valve

1шт.

34

A15921

SEAT - pilot relief valve

1шт.

35

A15534

COVER - valve port

1шт.

36

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - port cover

1шт.

37

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

38

92-8

LOCK WASHER,1/2"

4шт.

39

A15548

COVER - valve port (1-1/4" flange)

1шт.

40

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

"O" RING - port cover (Replace A12139)

1шт.

41

A15533

X

PLUG - port cover

1шт.

42

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

43

92-7

LOCK WASHER,7/16"

4шт.

44

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- valve check, sound hd. recessed hex.

1шт.

45

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - valve check plug

1шт.
