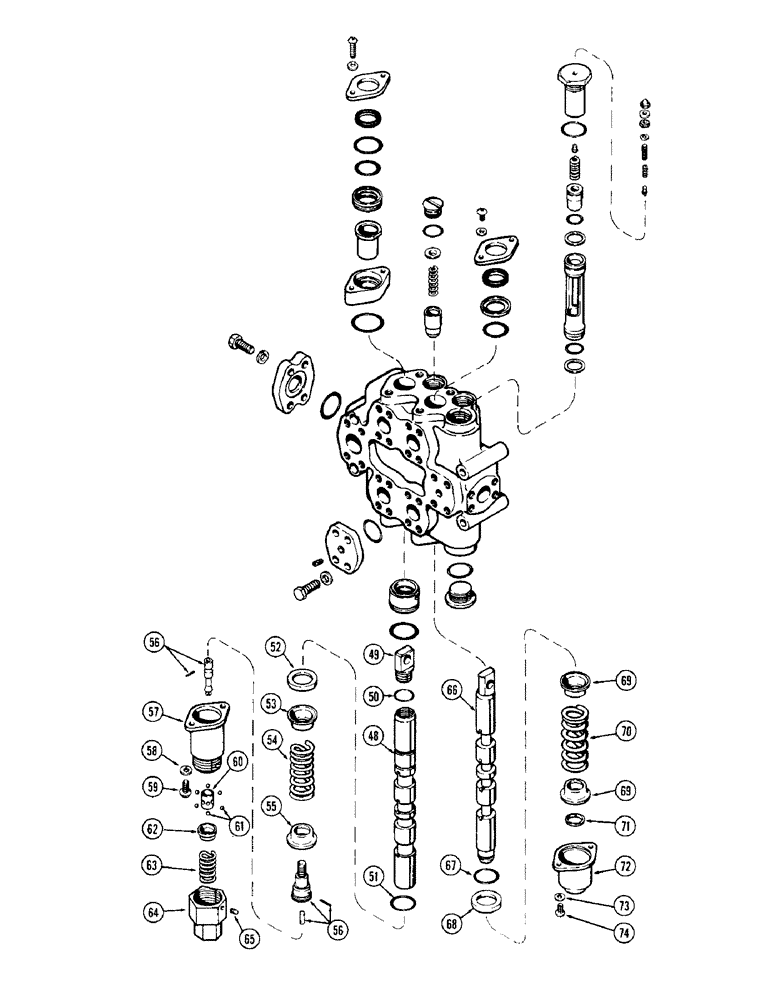

Запчасти Case W12 (174) - HYDRAULIC CONTROL VALVE (CONTD) (08) - HYDRAULICS

A56429

SPARE PART

VALVE ASSY. - control, hyd. (2 spool), Includes: Ref. 48 - 74

1шт.

48

A25575

SPOOL ASSY. - float, Includes: Ref. 49 - 65

1шт.

49

A15563

EYE - spool end

1шт.

50

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - spool eye, 3/4" tube

1шт.

51

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - spool seal (replaces A27507)

1шт.

52

A15556

RING, SNAP

RETAINER - o-ring

1шт.

53

A25579

RETAINER - spring, inner

1шт.

54

A25580

SPRING - inner & outer retainer

1шт.

55

A15543

RETAINER

- spring, outer

1шт.

56

A25583

BARREL & PLUG ASSY. - detent

1шт.

57

A25581

FLANGE - barrel

1шт.

58

92-5

LOCK WASHER,5/16"

2шт.

59

75-512

SCREW,Rd, 5/16" - 18 x 3/4"

- mach., 5/16 x 3/4" N.C. rhd.

2шт.

60

A16848

SLEEVE CYLINDER

SLEEVE - detent

1шт.

61

A16851

X

BALL - detent (.1875")

6шт.

62

A16852

RETAINER

- ball, detent

1шт.

63

A16853

VALVE SPRING

SPRING - retainer, ball

1шт.

64

A25582

CAP - detent, outer

1шт.

65

A16855

SCREW

- set, detent cap

1шт.

66

A25574

SPOOL ASSY. - tilt, Includes: Ref. 67 - 74

1шт.

67

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - spool seal

1шт.

68

A15556

RING, SNAP

RETAINER - o-ring

1шт.

69

A15543

RETAINER

- spring

2шт.

70

A25580

SPRING - return, spool

1шт.

71

A15530

RING - snap, retainer

1шт.

72

A15560

CAP - spool end

1шт.

73

92-5

LOCK WASHER,5/16"

2шт.

74

75-512

SCREW,Rd, 5/16" - 18 x 3/4"

- mach., 5/16 x 3/4" N.C. rhd.

2шт.
